Husqvarna AUTOMOWER 430XH Robotic Lawn Mower

Model: AUTOMOWER 430XH

Back To Assemblies

Save Part Not Listed?
product name

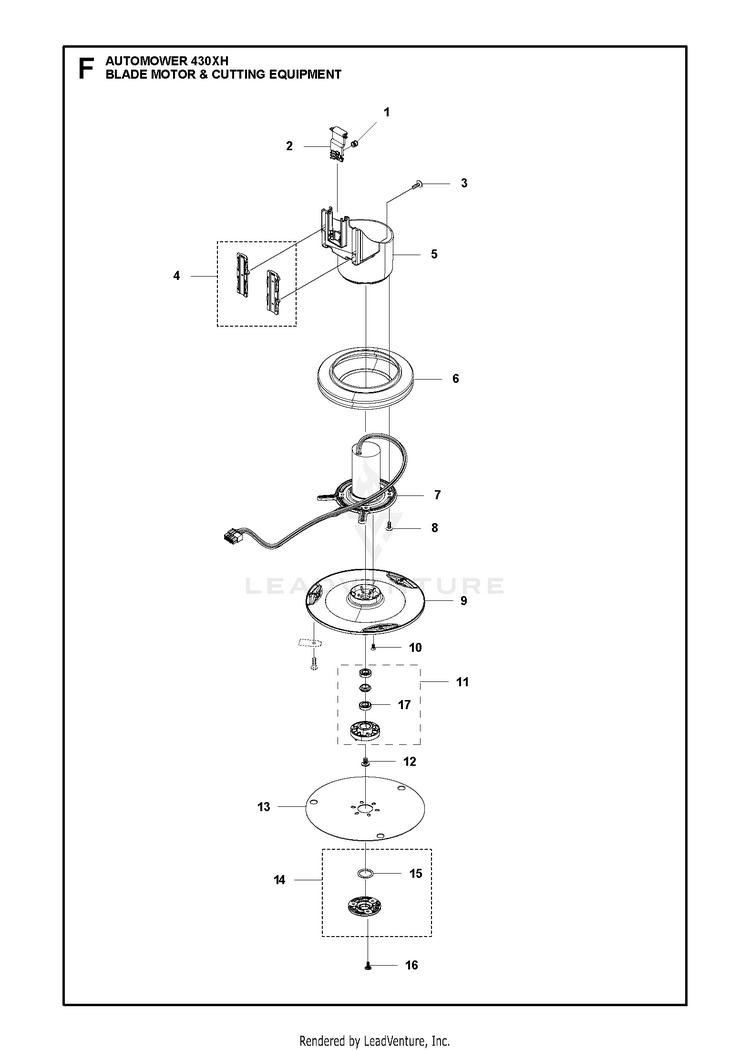

BLADE MOTOR & CUTTING EQUIPMENT

...
...
3
SCREW 14MM HUS-575543314
...
11
BEARING HOUSING ASSY HUS-588421702
...
16
SCREW 14MM HUS-575543314
...
13
SKID PLATE Up to Serial Number 1945XXXXX HUS-587378001
...
7
MOTOR ASSY JE Cutting Motor Assy HUS-587381401
...
4
BEARING KIT HUS-581621801
...
12
SCREW HUS-535076001
...
14
COVER KIT BEARING Bearing Cover Assy HUS-587449601
...
13
SKID PLATE From Serial Number 1946XXXXX HUS-598794901
...
17
BALL BEARING 2 RS,TIGHT CLEAR HUS-535075703
...
1
SPRING LINK HUS-580624401
...
10
SCREW HEXAGON SOCKET BUTTON HE Fits to Cutting Disc 597282001 HUS-590508701
...
10
SCREW TORX M4X8 8.8 NYLON PATC Fits to Cutting Disc 587378101 HUS-535130502
...
17
BALL BEARING BALL BEARING 535 Tube 50 pcs HUS-593080801
...
5
HOUSING CUTTING MOTOR HUS-579564501
...
9
GUARDS Incl. screws. For 2020 models HUS-598814401
...
8
SCREW 14MM HUS-575543314
...
6
BELLOWS CUTTING SYSTEM HUS-579666403
...
15
O-RING 20X2,5 MM HUS-585297501
...
2
LINK MOTOR HOUSING HUS-579564601
...
9
CUTTING DISC For 2019 models HUS-587378101
