Husqvarna AUTOMOWER 430XH Robotic Lawn Mower

Model: AUTOMOWER 430XH

Back To Assemblies

Save Part Not Listed?
product name

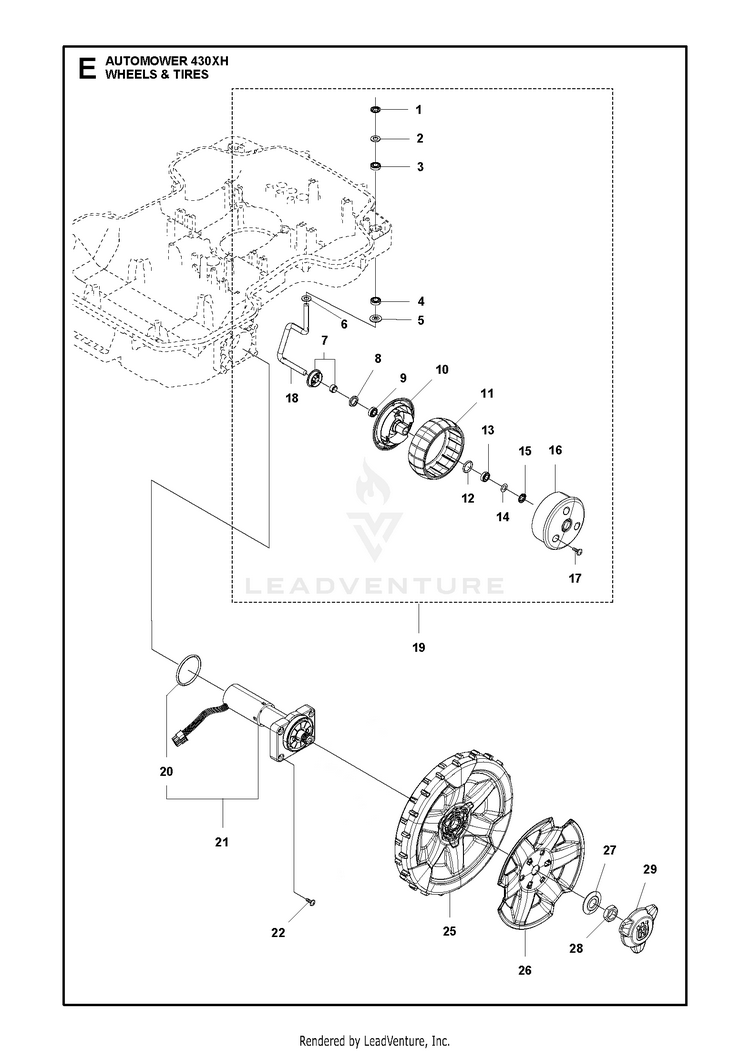

WHEELS & TIRES

...
...
28
HEXAGON THIN NUT HUS-731432401
...
27
WASHER WASHER REAR WHEEL 16X40 HUS-586210601
...
1
LOCKWASHER PUSH-ON TYPE P 8 BV HUS-576019302
...
22
SCREW ITXPANT HUS-574450101
...
26
COVER REAR WHEEL NO PAINT HUS-579505702
...
25
NEEDS DESCRIPTION Rear Wheel HUS-582280203
...
19
Wheels Front Wheel Kit HUS-581621402
...
16
WHEEL FRONT WHEEL OUTSIDE Outside HUS-579457201
...
21
MOTOR KIT DRIVE WHEEL P2 HUS-581621307
...
9
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
14
WASHER DIN 988 13X8X0.5 HUS-580764601
...
7
SHIELD KIT HUS-581621501
...
20
O-RING LIGHT GREY HUS-580443902
...
18
SPINDLE HUS-580336102
...
13
BALL BEARING SINGLE ROW S688 HUS-580605101
...
2
WASHER DIN 988 13X8X0.5 HUS-580764601
...
9
BALL BEARING SINGLE ROW S688 HUS-580605101
...
3
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
13
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
10
WHEEL FRONT WHEEL INSIDE Inside HUS-579457101
...
4
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
12
O-RING 2,62X15,54 HUS-580445101
...
4
BALL BEARING SINGLE ROW S688 HUS-580605101
...
3
BALL BEARING SINGLE ROW S688 HUS-580605101
...
6
WASHER DIN 988 13X8X0.5 HUS-580764601
...
29
HUB CAP REAR WHEEL NO CENTER P HUS-579505502
...
15
LOCKWASHER PUSH-ON TYPE P 8 BV HUS-576019302
...
5
WASHER FRONT WHEEL CENTER HOLE HUS-535087803
...
8
SEALING 12X18X3 HUS-580487101
...
11
WHEEL RUBBER TYRE Tire HUS-574449801
...
17
SCREW 14MM HUS-575543314
