Husqvarna AUTOMOWER 430XH Robotic Lawn Mower

Model: AUTOMOWER 430XH

Back To Assemblies

Save Part Not Listed?
product name

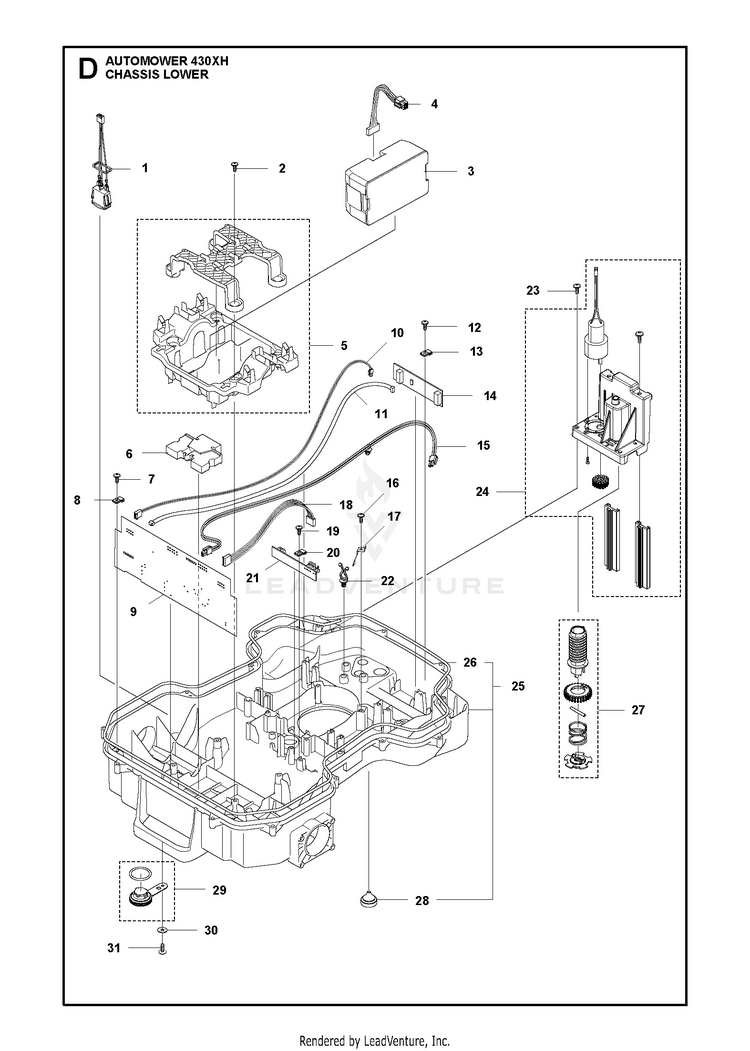

CHASSIS LOWER

...
...
17
SPRING GUIDE HEIGHT ADJUSTMENT HUS-581556101
...
1
LOOM ON/ OFF Switch On-Off HUS-579708701
...
16
SCREW 14MM HUS-575543314
...
26
SEALING STRIP 1 pcs, diam 5 mm HUS-574874705
...
12
SCREW 14MM HUS-575543314
...
18
LOOM HEIGHT ADJUSTMENT Height Adjustment Wiring HUS-579708001
...
23
SCREW 14MM HUS-575543314
...
8
CLAMP PCB HUS-579529401
...
20
CLAMP PCB HUS-579529401
...
2
SCREW ITXPANT HUS-574450101
...
15
WIRING ASSY CHARGING LINK AWG1 Charging Cable HUS-534156602
...
24
MOTOR ASSY HEIGHT MOTOR HUS-501068301
...
25
CHASSIS KIT SPARE PART LOWER - HUS-596503102
...
13
CLAMP PCB HUS-579529401
...
19
SCREW 14MM HUS-575543314
...
29
PLUG KIT HUS-581621202
...
27
SCREW KIT HUS-581621601
...
4
WIRING ASSY BATTERY CABLE BASI Battery HUS-535018401
...
22
HOLDER TWIST LOCK Holder Twist Lock HUS-580682901
...
31
SCREW ITXPANT HUS-574450101
...
28
GROMMET M16 HUS-584897501
...
6
WEIGHT 470G Weight 470g HUS-589366201
...
3
BATTERY HUS-593247401
...
5
HOLDER KIT BATTERY Holder Kit HUS-596494701
...
10
WIRING ASSY LED LIGHT EXTENSIO LED-Extension Wiring HUS-588818402
...
14
PRINTED CIRCUIT ASSY LOOP SENS PCBA Loop Sensor HUS-592852701
...
21
PRINTED CIRCUIT ASSY PCBA CUTT PCBA Height Adjustment HUS-579728502
...
11
LOOM LOOP SENSOR Sensor Cable HUS-579708201
...
30
WASHER HUS-734113741
...
7
SCREW 14MM HUS-575543314
...
9
PRINTED CIRCUIT ASSY PCBA MAIN Main Board HUS-592852601
