Husqvarna AUTOMOWER 430X Robotic Lawn Mower

Model: AUTOMOWER 430X

Back To Assemblies

Save Part Not Listed?
product name

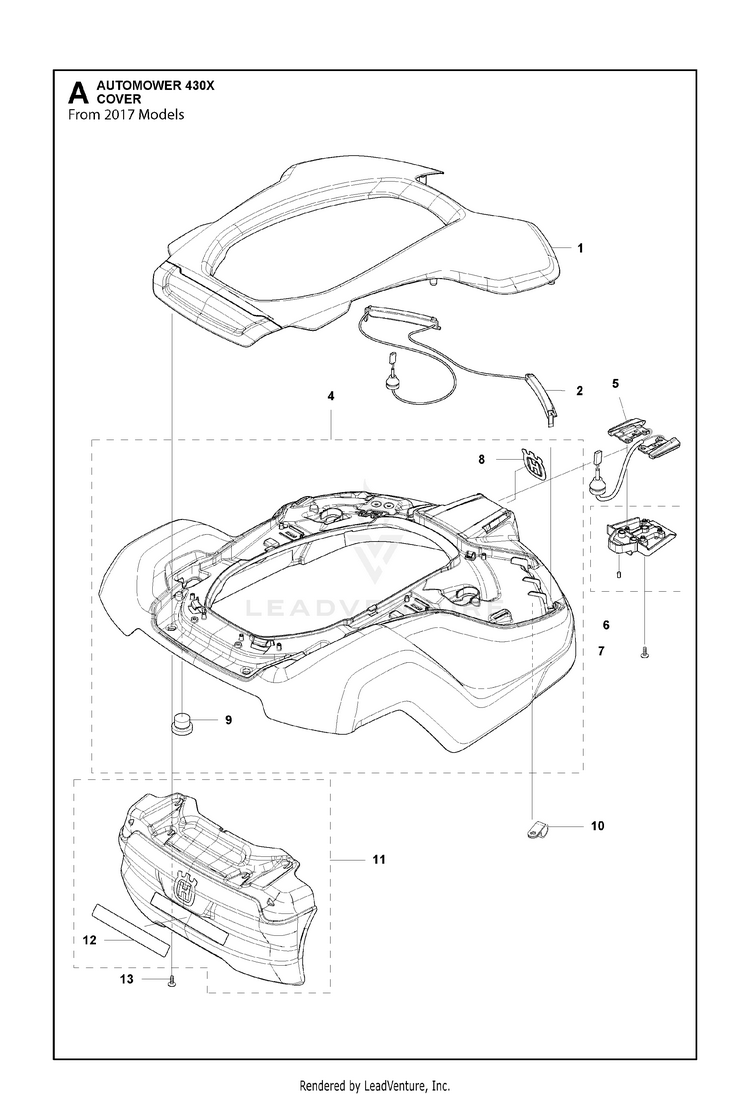

COVER 2017-

...
...
1
COVER Cover KIT Top Grey HUS-590877010
...
7
SCREW 14MM Screw HUS-575543314
...
2
WIRING ASSY LED HUS-501065101
...
1
COVER Cover KIT Top White HUS-590877011
...
13
SCREW ITXPANT Screw HUS-574450101
...
1
COVER Cover KIT Top Orange HUS-590877012
...
9
CAP SNAPLOC Cap HUS-580526801
...
6
HOLDER ASSY MAGNET Holder ASSY HUS-501065602
...
10
CLAMP P-CLIP CLAMP HUS-501610601
...
12
LABEL WARNING P15 Label Warning HUS-586359701
...
4
BODY ASSY HUS-501061102
...
11
BUMPER REAR HUS-588225202
...
8
DECAL HUSQVARNA CROWN HEIGHT 5 HUS-587423501
...
5
WIRING ASSY CHARGING PLATE GRE Charging Plate Wiring HUS-531144701
