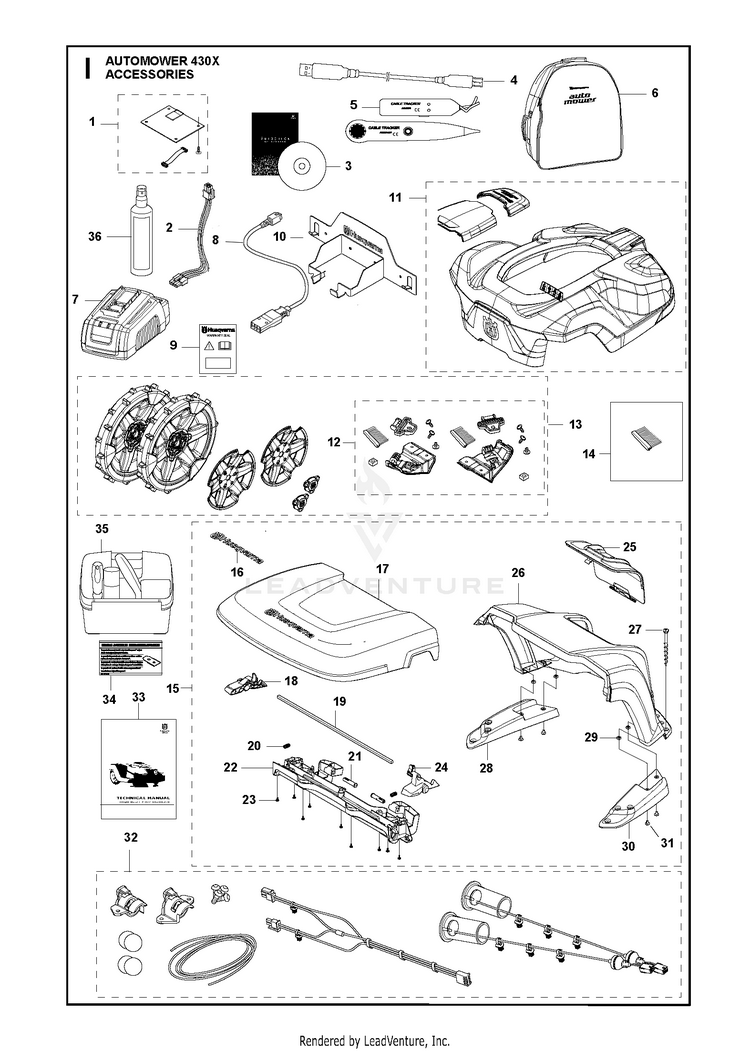

Husqvarna AUTOMOWER 430X Robotic Lawn Mower

Model: AUTOMOWER 430X

Back To Assemblies

Save Part Not Listed?
product name

ACCESSORIES

...
...
27
Screws Screw KIT, 6 pcs HUS-597435801
...
19
ROD Steel Rod HUS-585324101
...
34
ORIGINAL PARTS STICKER Original Parts sticker DE FR NL IT HUS-591374102
...
35
CLG Maintenance and cleaning kit HUS-590855102
...
1
NEEDS DESCRIPTION AM Connect, KIT, UK,IE,CH,IT,ES,PT,DE,FR,AT,NL,BE,LUX,SI,SE,NO,DK,FI HUS-586662309
...
20
SPRING SPRING CAP Spring HUS-580511401
...
11
WHITE BODY KIT 430 For 2017 & 2016 models HUS-580965702
...
13
AUTOMOWER ACCY Rear Wheel KIT incl. Brush KIT HUS-581889711
...
15
COVER House KIT HUS-585019410
...
5
TEST EQUIPMENT Interruption Detector HUS-577606801
...
7
CHARGER TEST CHARGER ROBOTICS Quick Charger with Battery Test HUS-588408402
...
32
430 HEADLIGHT KIT Head Lights KIT HUS-581912502
...
36
AUTOMOWER ACCY HUS-593967901
...
22
BEAM Beam HUS-585341601
...
34
DECAL WARNING ORIGINAL BLADE E Original Parts sticker EN ES FR IT HUS-591374103
...
17
KIT LID - AUTOMOWER HOUSE Cover Lid HUS-586885801
...
29
NUT Square Nut HUS-503226601
...
30
SUPPORT BASE RIGHT Support Base Right HUS-585323801
...
10
HANGER Wall Hanger HUS-598411101
...
28
SUPPORT BASE LEFT Support Base Left HUS-585323802
...
23
SCREW 14MM Screw HUS-575543314
...
3
DVD AUTOCHECK EXP SERVICE DVD Autocheck EXP HUS-577858103
...
1
NEEDS DESCRIPTION AM Connect, KIT, AU,NZ HUS-586662308
...
9
LABEL WARRANTY SEAL DEALER Warranty Seal 1pcs HUS-580689502
...
26
COVER BASE P2 HOUSE Cover Base HUS-585323401
...
14
WHEEL BRUSH REFILL KIT Brush, 6pcs HUS-581982002
...
2
WIRING ASSY BATTERY CABLE BASI HUS-535018401
...
21
HINGE PIN Hinge Pin HUS-585341501
...
6
BAG Bag HUS-522916701
...
25
HATCH P2 GREY Hatch HUS-585323602
...
31
SCREW IHPANM M6X25 4.6 ZP-BC Screw HUS-535129303
...
18
HANDLE RELEASE LEFT Handle Left HUS-585324002
...
1
NEEDS DESCRIPTION AM Connect, KIT, US,CA HUS-586662311
...
12
WHEEL BRUSH KIT (4/500 NO AWD) Brush KIT incl Brush, 6 pcs HUS-581903112
...
16
DECAL.HUSQVARNA.210MM Decal HUS-577469001
...
34
ORIGINAL PARTS STICKER Original Parts sticker SV NO DK FI HUS-591374101
...
8
CABLE ASSY QUICK CHARGER Cable Quick Charger HUS-588202601
...
24
HANDLE RELEASE RIGHT Handle Right HUS-585324001
...
4
CABLE WHITE ALT GREY Service Cable (USB) HUS-577518102
...
1
NEEDS DESCRIPTION AM Connect, KIT, CZ,PL,SK,HU,UA,RO,GR,HR,TR,BG,RU,LT,LV,EE,ZA,BR,CL,UY,PY,AR,CO,EC,PE,CR HUS-586662311
