Husqvarna AUTOMOWER 430X Robotic Lawn Mower

Model: AUTOMOWER 430X

Back To Assemblies

Save Part Not Listed?
product name

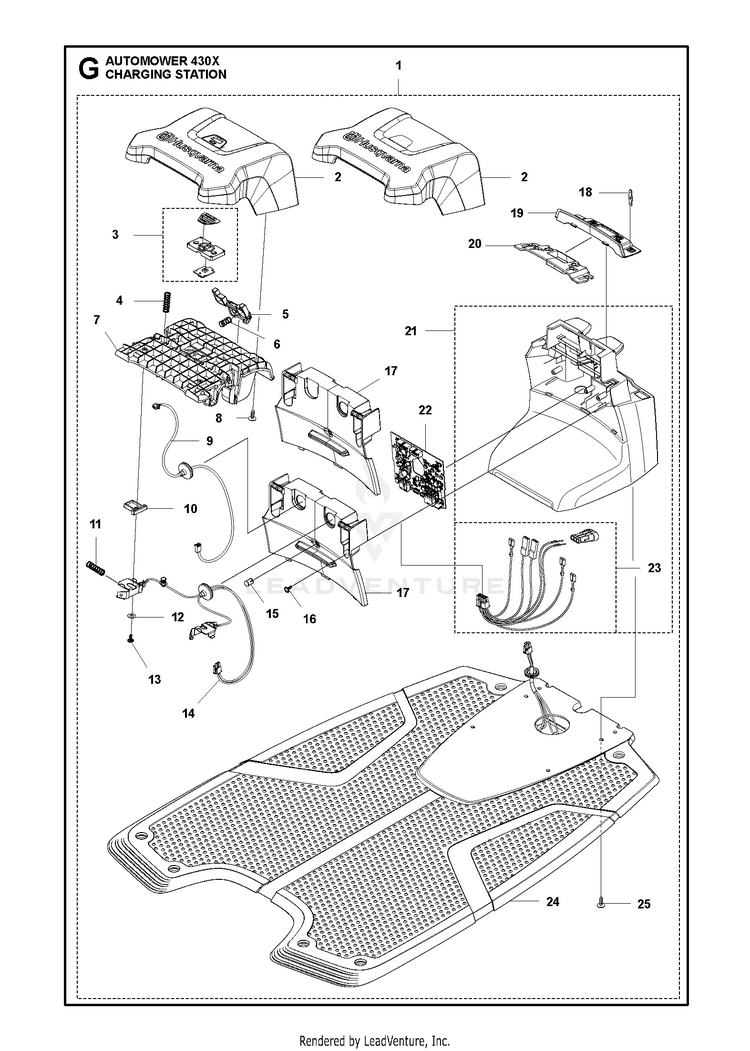

CHARGING STATION

...
...
16
SCREW 14MM Screw HUS-575543314
...
24
BASE ASSY CHARGING STATION Charging Plate HUS-590094001
...
7
FRAME CHARGING STATION Frame HUS-579458004
...
5
BUTTON CHARGING STATION, RELEA Button HUS-579462402
...
13
SCREW 14MM Screw HUS-575543314
...
14
WIRING ASSY Loom Charging Contact HUS-531242201
...
3
BUTTON KIT HOME Home Button KIT HUS-501065901
...
19
PANEL CHARGING STATION 330, TW Panel HUS-579459802
...
9
LOOM HOME BUTTON Home Button Wiring HUS-579708301
...
17
LID CHARGING STATION 330, TWO 2 holes (with park button) HUS-579459703
...
18
TERMINAL TERMINAL CHARGING STA Terminal HUS-580504101
...
10
NEEDS DESCRIPTION Distance HUS-579460502
...
21
HOUSING ASSY CHARGING STATION Housing KIT HUS-588188801
...
20
HOLDER CHARGING STATION Holder HUS-579459901
...
2
CAP CHARGING STATION WITHOUT H With Park Button HUS-579448204
...
15
LENS DIODE Diode Lens HUS-590217201
...
17
LID CHARGING STATION 320, ONE 1 hole (without park button) HUS-579459704
...
11
SPRING SPRING CAP Spring HUS-580511401
...
25
SCREW 14MM Screw HUS-575543314
...
8
SCREW 14MM Screw HUS-575543314
...
4
SPRING SPRING CAP Spring HUS-580511401
...
6
SPRING STOP BUTTON Spring HUS-574487001
...
23
CABLE KIT GENERATOR BOARD Wiring CS HUS-588478901
...
2
CAP CHARGING STATION Without Park Button HUS-579448203
...
1
Charging Station Charging Station HUS-593784702
...
22
PRINTED CIRCUIT ASSY, AUTOMOWE PCBA Charging Station HUS-592894503
...
12
WASHER Washer HUS-734113741
