Husqvarna AUTOMOWER 430X Robotic Lawn Mower

Model: AUTOMOWER 430X

Back To Assemblies

Save Part Not Listed?
product name

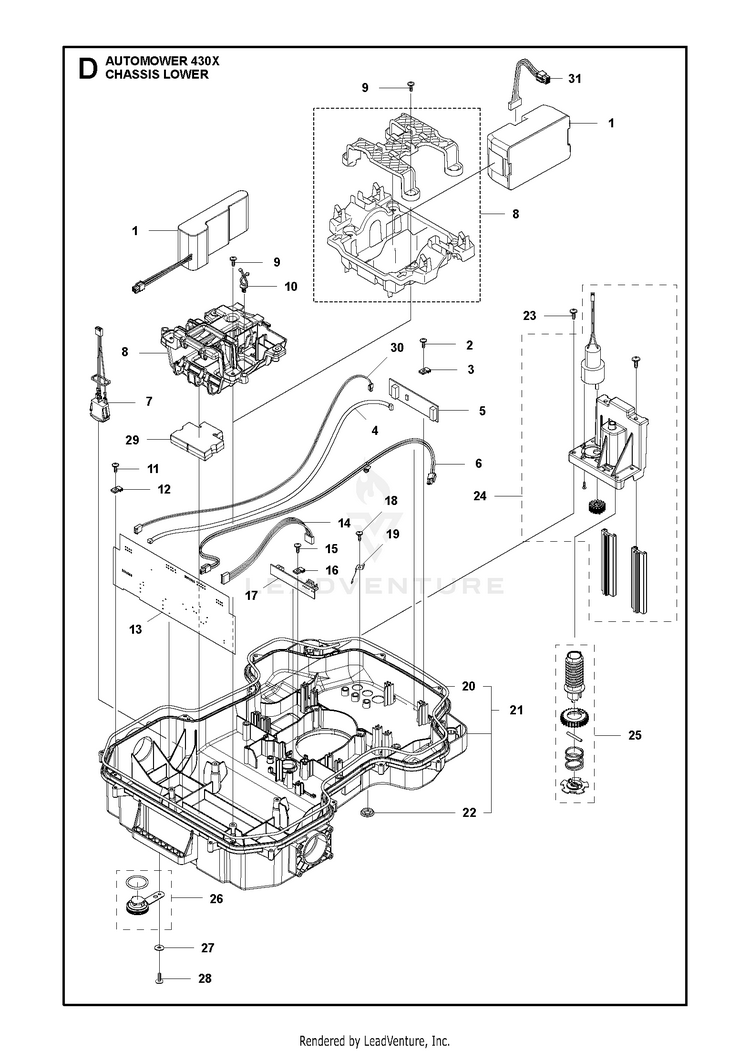

CHASSIS LOWER

...
...
31
WIRING ASSY BATTERY CABLE BASI From Serial number 191304274 HUS-535018401
...
1
BATTERY KIT Up to Serial number 1913XXXXX HUS-529606802
...
14
LOOM HEIGHT ADJUSTMENT Loom HUS-579708001
...
28
SCREW ITXPANT Screw HUS-574450101
...
15
SCREW 14MM Screw HUS-575543314
...
9
SCREW ITXPANT Screw HUS-574450101
...
29
WEIGHT CENTER Weight HUS-587249601
...
5
PRINTED CIRCUIT ASSY LOOP SENS Sensor Board HUS-592852701
...
21
CHASSIS KIT Chassis KIT HUS-583944503
...
11
SCREW 14MM Screw HUS-575543314
...
13
PRINTED CIRCUIT ASSY PCBA MAIN Main Board HUS-592852601
...
22
GROMMET M16 Plug HUS-584897501
...
26
PLUG KIT Plug KIT HUS-581621202
...
8
HOLDER BATTERY Up to Serial number 1913XXXXX HUS-580609602
...
16
CLAMP PCB Clamp HUS-579529401
...
18
SCREW 14MM Screw HUS-575543314
...
30
WIRING ASSY LED LIGHT EXTENSIO Wiring ASSY HUS-588818402
...
3
CLAMP PCB Clamp HUS-579529401
...
20
SEALING STRIP Sealing Strip (1 pcs, ¯5 mm) HUS-574874705
...
27
WASHER Washer HUS-734113741
...
12
CLAMP PCB Clamp HUS-579529401
...
6
WIRING ASSY CHARGING LINK AWG1 Loom HUS-534156602
...
19
SPRING GUIDE HEIGHT ADJUSTMENT Spring HUS-581556101
...
1
BATTERY From Serial number 191304274 HUS-593247401
...
2
SCREW 14MM Screw HUS-575543314
...
25
SCREW KIT Screw KIT HUS-581621601
...
8
HOLDER KIT BATTERY From Serial number 191304274 HUS-596494701
...
23
SCREW 14MM Screw HUS-575543314
...
24
MOTOR ASSY HEIGHT MOTOR Motor ASSY HUS-501068301
...
10
HOLDER TWIST LOCK Holder HUS-580682901
...
17
PRINTED CIRCUIT ASSY PCBA CUTT Cutting Height HUS-579728502
...
4
LOOM LOOP SENSOR Loom HUS-579708201
...
7
LOOM ON/ OFF Switch, On Off HUS-579708701
