Husqvarna AUTOMOWER 420 Robotic Lawn Mower

Model: AUTOMOWER 420

Back To Assemblies

Save Part Not Listed?
product name

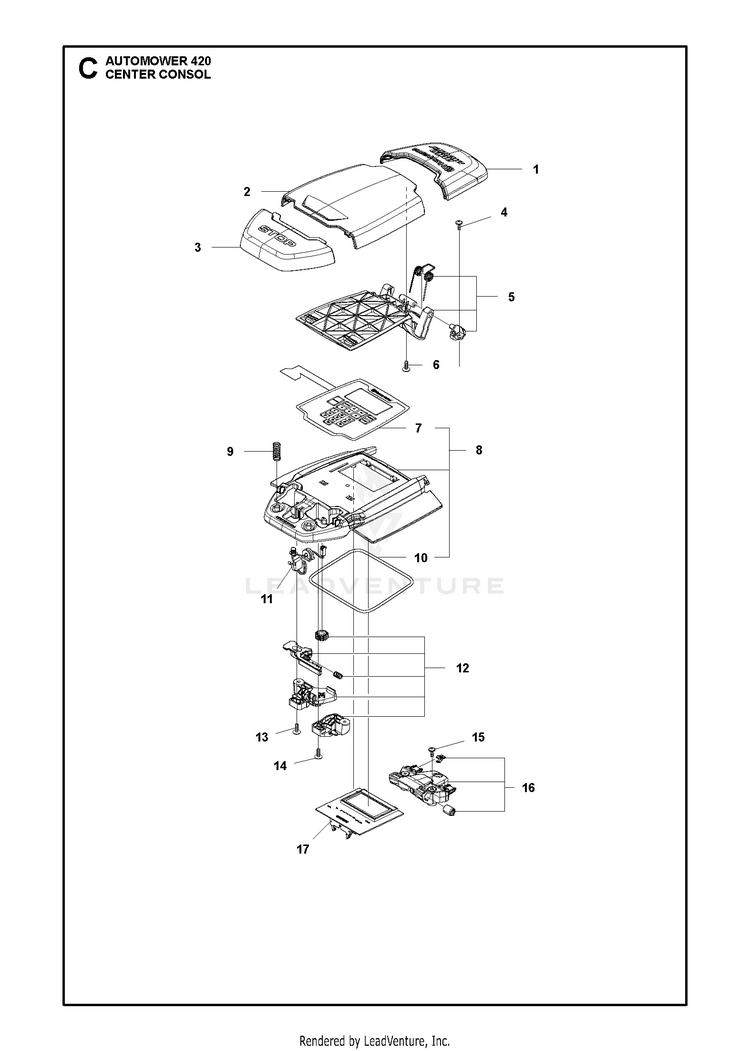

CENTER CONSOL

...
...
2
HATCH ROBOTIC GREY Hatch HUS-579458501
...
10
SEALING STRIP Sealing Strip (1 pcs, ¯5 mm) HUS-574874706
...
14
SCREW 14MM Screw HUS-575543314
...
3
BUTTON STOP Button HUS-579458101
...
7
Keyboard HUS-579627901
...
16
SUPPORT KIT FRONT Support KIT HUS-581620701
...
13
SCREW 14MM Screw HUS-575543314
...
1
NEEDS DESCRIPTION Cover HUS-588797501
...
8
Cover KIT HUS-581620601
...
6
SCREW 14MM Screw HUS-575543314
...
17
PRINTED CIRCUIT ASSY HMI BOARD For 2018, 2017 & 2016 models HUS-592910401
...
17
PRINTED CIRCUIT ASSY HMI BOARD For 2020 & 2019 HUS-592910401
...
15
SCREW 14MM Screw HUS-575543314
...
4
SCREW 14MM Screw HUS-575543314
...
9
SPRING Spring HUS-535130101
...
12
LOCK KIT Locking Plate KIT HUS-501066001
...
5
HINGE KIT KIT Hinge KIT HUS-501065801
...
11
SWITCH STOP BUTTON NO ANCHOR Switch HUS-574480302
...
6
Nuts HUS-596322601
...
24
WASHER HUS-819171912
...
16
SPRING HUS-532121250
...
17
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
14
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
...
3
Bolts HUS-596564401
...
5
PUSH CLIP HUS-532145006
...
2
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
26
LOCKWASHER HUS-810040800
...
9
Washers HUS-596140201
...
13
BUSHING HUS-532121248
...
22
Hardware HUS-596040501
...
1
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
4
WASHER PM HUS-819131610
...
23
BOLT.HEX.BLACK HUS-871110814
...
8
SCREW 3/8-16X1 HUS-817000616
...
25
BOLT,SHOULD HUS-532127018
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
15
SPACER SPLIT 28X.96 HUS-532134300
