product name

Husqvarna AUTOMOWER 415X Robotic Lawn Mower

Model: AUTOMOWER 415X

Back To Assemblies

Save Part Not Listed?
product name

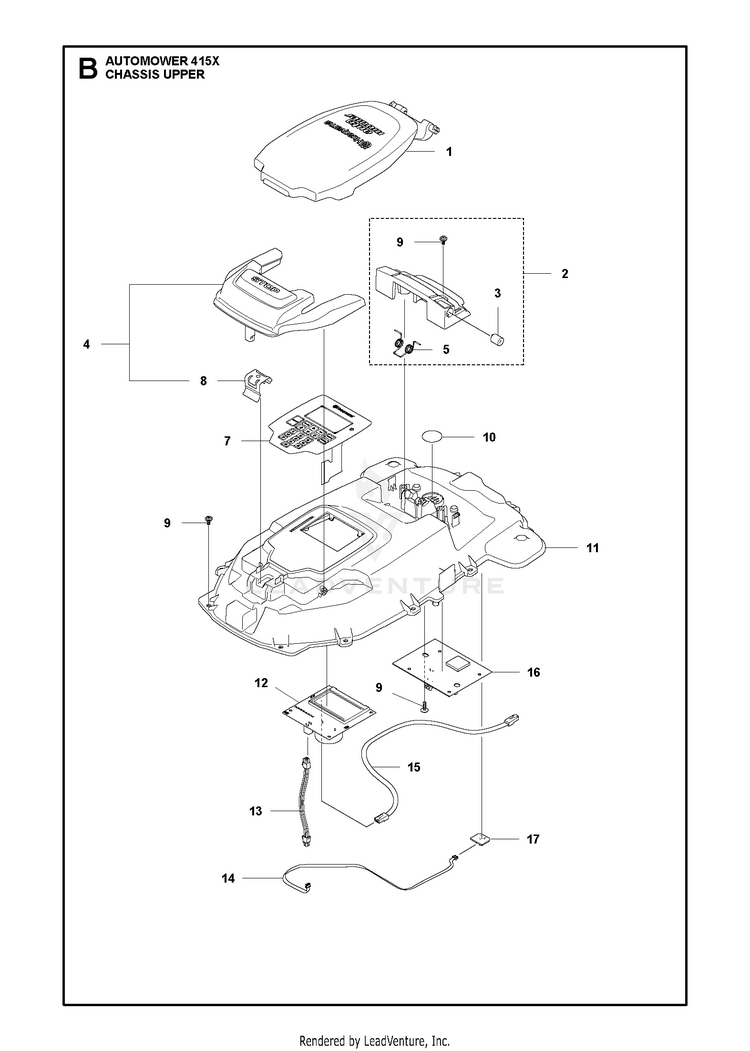

CHASSIS UPPER

...
...
12
PRINTED CIRCUIT ASSY PCBA APPL HUS-598902801
...
16
NEEDS DESCRIPTION AM Connect, KIT, CZ,PL,SK,HU,UA,RO,GR,HR,TR,BG,RU,LT,LV,EE,ZA,BR,CL,UY,PY,AR,CO,EC,PE,CR HUS-586662311
...
11
CHASSIS UPPER - P16 HUS-599295801
...
5
TORSION SPRING DT=1,3MM HUS-585255401
...
10
KIT AIR FILTER KIT 305 - 10 PC HUS-577753701
...
13
Wires HUS-591203101
...
17
PRINTED CIRCUIT ASSY PCBA MAGN HUS-598916001
...
3
DAMPER TORSION FA 1100 HUS-580352302
...
2
SUPPORT FRONT ASSY HUS-597758101
...
14
WIRING ASSY MAGNETIC SENSOR WI HUS-599490501
...
15
WIRE ASY JACK 6/6 RJ12 340MM HUS-536253906
...
9
SCREW ITXPANT HUS-574450101
...
7
KEYBOARD P16 HUS-599451701
...
8
SPRING BUTTON STOP DELTA SEAL HUS-597349502
...
1
HATCH HMI COVER - P16 415X HUS-599295903
...
4
BUTTON KIT STOP BUTTON AM405X/ HUS-599991101
...
16
NEEDS DESCRIPTION AM Connect, KIT, UK,IE,CH,IT,ES,PT,DE,FR,AT,NL,BE,LUX,SI,SE,NO,DK,FI HUS-586662309
