Husqvarna AUTOMOWER 415X Robotic Lawn Mower

Model: AUTOMOWER 415X

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

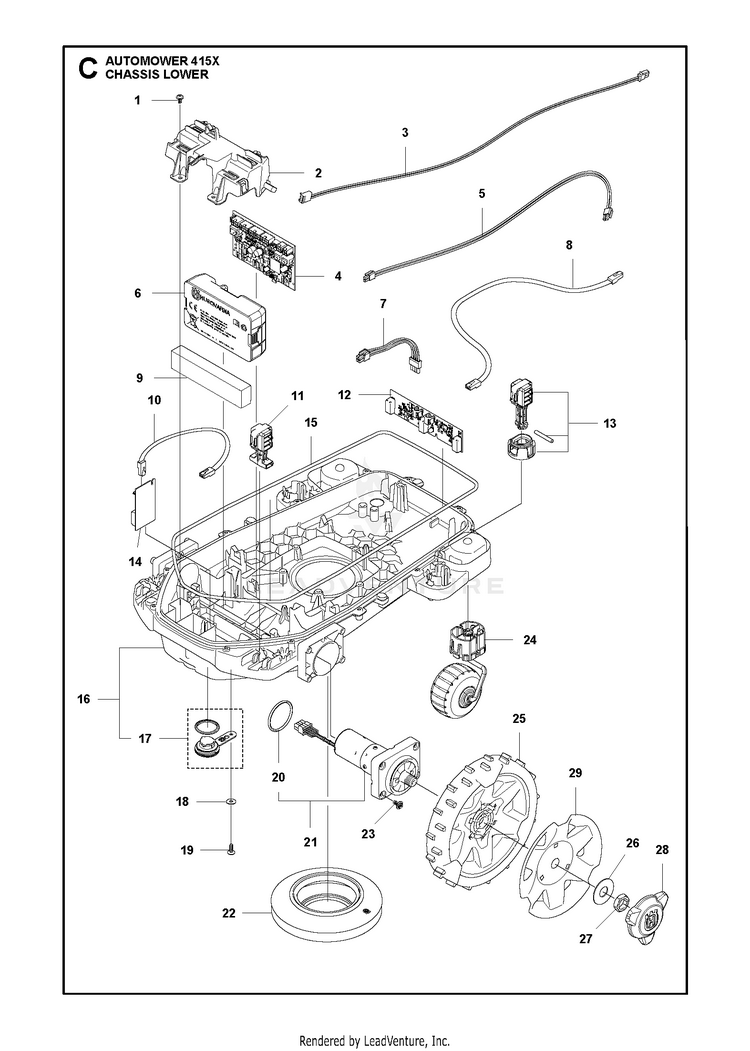

CHASSIS LOWER

...
...
16
CHASSIS LOWER - P16 HUS-599295602
...
3
WIRING ASSY LED LIGHT EXTENSIO HUS-588818402
...
15
SEALING STRIP CHASSIS LOWER P1 HUS-574874718
...
4
Circuits HUS-591125601
...
13
COLUMN ASSEMBLY HUS-596020703
...
8
WIRE ASY JACK 6/6 RJ12 650MM HUS-536253907
...
2
CLAMP REAR - P16 HUS-599295701
...
29
COVER WHEEL HUS-590217803
...
21
NEEDS DESCRIPTION HUS-598587301
...
6
SPARE BATTERY KIT HUS-529452002
...
20
O-RING LIGHT GREY HUS-580443902
...
25
NEEDS DESCRIPTION HUS-590217303
...
23
SCREW ITXPANT HUS-574450101
...
27
HEXAGON THIN NUT HUS-731432401
...
18
WASHER HUS-734113741
...
17
PLUG KIT HUS-581621202
...
5
WIRING ASSY BATTERY CHARGING A HUS-534993603
...
11
STRUT TILT V2 HUS-531339001
...
10
WIRING ASSY HUS-536253903
...
1
SCREW ITXPANT HUS-574450101
...
28
HUB CAP REAR WHEEL NO CENTER P HUS-579505502
...
7
WIRING ASSY BATTERY CABLE PREM HUS-535280502
...
14
PRINTED CIRCUIT ASSY PCBA LOOP HUS-598915201
...
19
SCREW ITXPANT HUS-574450101
...
22
BELLOWS CUTTING SYSTEM HUS-599318301
...
9
WEIGHT SQUARE BAR HUS-598503602
...
12
PRINTED CIRCUIT ASSY LOOP RECE HUS-591125703
...
26
WASHER WASHER REAR WHEEL 16X40 HUS-586210601
...
24
WHEEL ASSY SPINDLE INSIDE 2K HUS-589300802
