Husqvarna AUTOMOWER 415X Robotic Lawn Mower

Model: AUTOMOWER 415X

Back To Assemblies

Save Part Not Listed?
product name

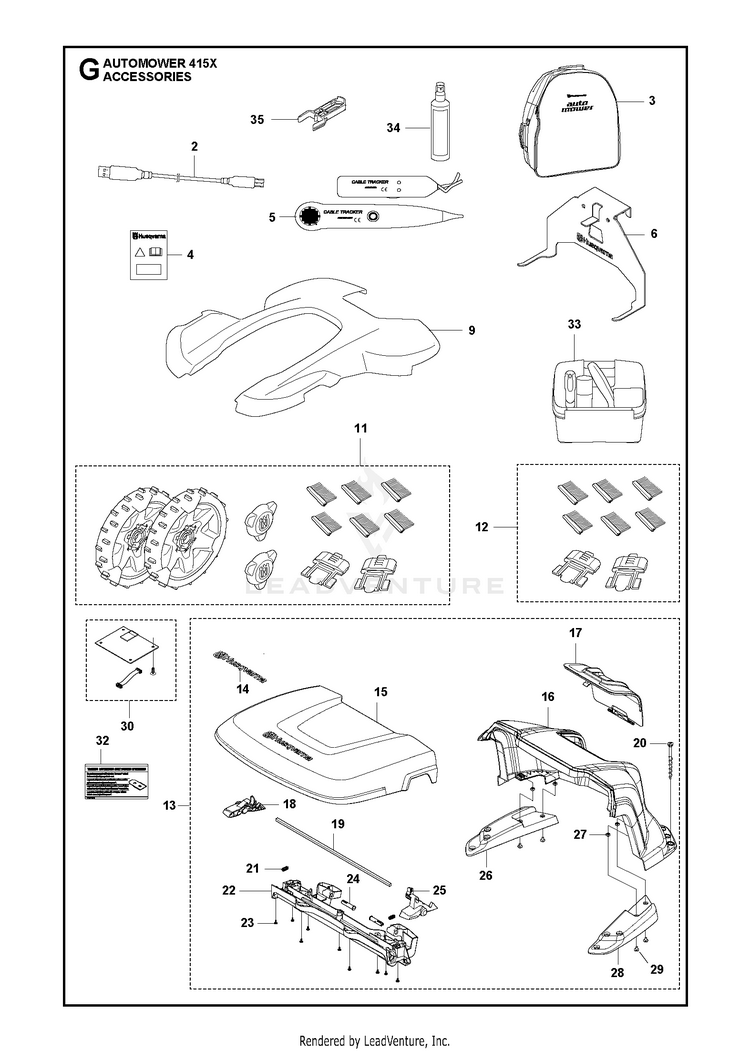

ACCESSORIES

...
...
28
SUPPORT BASE RIGHT Support Right HUS-585323801
...
15
COVER LID 315 Lid HUS-585323501
...
4
LABEL WARRANTY SEAL DEALER Warranty Seal 1pcs HUS-580689502
...
17
HATCH P2 GREY Hatch HUS-585323602
...
34
AUTOMOWER ACCY Care and Shine 200ml HUS-593967901
...
24
HINGE PIN Hinge Pin HUS-585341501
...
30
NEEDS DESCRIPTION AM Connect, KIT, CZ,PL,SK,HU,UA,RO,GR,HR,TR,BG,RU,LT,LV,EE,ZA,BR,CL,UY,PY,AR,CO,EC,PE,CR HUS-586662311
...
5
TEST EQUIPMENT Interruption Detector HUS-577606801
...
11
NEEDS DESCRIPTION Terrain KIT (Brush KIT + Rear wheels) HUS-597705401
...
32
ORIGINAL PARTS STICKER Warning Original Blade SE,NO,DK,FIN HUS-591374101
...
35
FORK TOOL HUS-598764201
...
16
COVER BASE P15 ROBOTIC GREY Cover Base HUS-586993802
...
23
SCREW 14MM Screw HUS-575543314
...
12
NEEDS DESCRIPTION Wheel Brush KIT (Holder x2, Brush x6) HUS-597704601
...
12
BRUSH WITH CARTON. PROP65 Brush, 6 pcs HUS-505132812
...
19
ROD Steel HUS-585324101
...
25
HANDLE RELEASE RIGHT Handle Right HUS-585324001
...
2
CABLE WHITE ALT GREY Service Cable (USB) HUS-577518102
...
27
NUT Square Nut HUS-503226601
...
13
COVER House KIT HUS-587236110
...
30
NEEDS DESCRIPTION AM Connect, KIT, UK,IE,CH,IT,ES,PT,DE,FR,AT,NL,BE,LUX,SI,SE,NO,DK,FI HUS-586662309
...
9
NEEDS DESCRIPTION Orange HUS-529461302
...
14
DECAL.HUSQVARNA.210MM Decal HUS-577469001
...
20
Screws 6 pcs+Key HUS-597435801
...
6
NEEDS DESCRIPTION Wallhanger AM305 HUS-597703601
...
22
BEAM Beam HUS-585341601
...
32
ORIGINAL PARTS STICKER Warning Original Blade DE,FR,NL,IT HUS-591374102
...
3
BAG Bag HUS-522916701
...
9
NEEDS DESCRIPTION Grey HUS-529461303
...
26
SUPPORT BASE LEFT Support Left HUS-585323802
...
9
NEEDS DESCRIPTION White HUS-529461301
...
21
SPRING SPRING CAP Spring HUS-580511401
...
18
HANDLE RELEASE LEFT Handle Left HUS-585324002
...
32
DECAL WARNING ORIGINAL BLADE E Warning Original Blade UK,ES,FR,IT HUS-591374103
...
29
SCREW IHPANM M6X25 4.6 ZP-BC Screw HUS-535129303
...
33
CLG Maintenance and Cleaning HUS-590855102
