Husqvarna AUTOMOWER 405X Robotic Lawn Mower

Model: AUTOMOWER 405X

Back To Assemblies

Save Part Not Listed?
product name

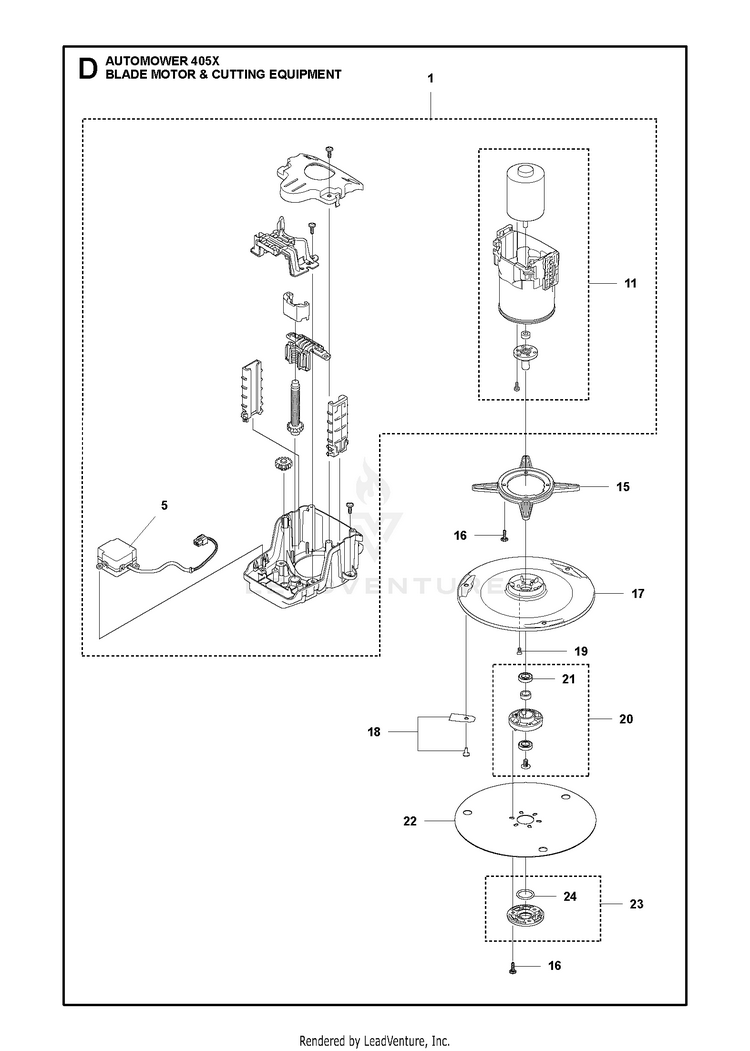

BLADE MOTOR & CUTTING EQUIPMENT

...
...
24
O-RING 20X2,5 MM HUS-585297501
...
21
BALL BEARING BALL BEARING 535 Tube 50 pcs HUS-593080801
...
17
CUTTING DISC HUS-531177401
...
11
MOTOR ASSY CUTTING SYSTEM HUS-599428301
...
21
BALL BEARING 2 RS,TIGHT CLEAR HUS-535075703
...
5
NEEDS DESCRIPTION HAM HUS-592735802
...
1
CUTTING SYSTEM ECS TYPE 1 Cutting module assy HUS-599521301
...
20
BEARING HOUSING ASSY HUS-588421702
...
19
SCREW HEXAGON SOCKET BUTTON HE HUS-590508701
...
16
SCREW 14MM HUS-575543314
...
22
NEEDS DESCRIPTION HUS-598794801
...
15
FRAME MOTOR HOUSING HUS-599318201
...
23
COVER KIT BEARING HUS-587449601
...
18
BLADE SET ENDURANCE 6PCS Endurance 6 pcs, Blister HUS-595084411
