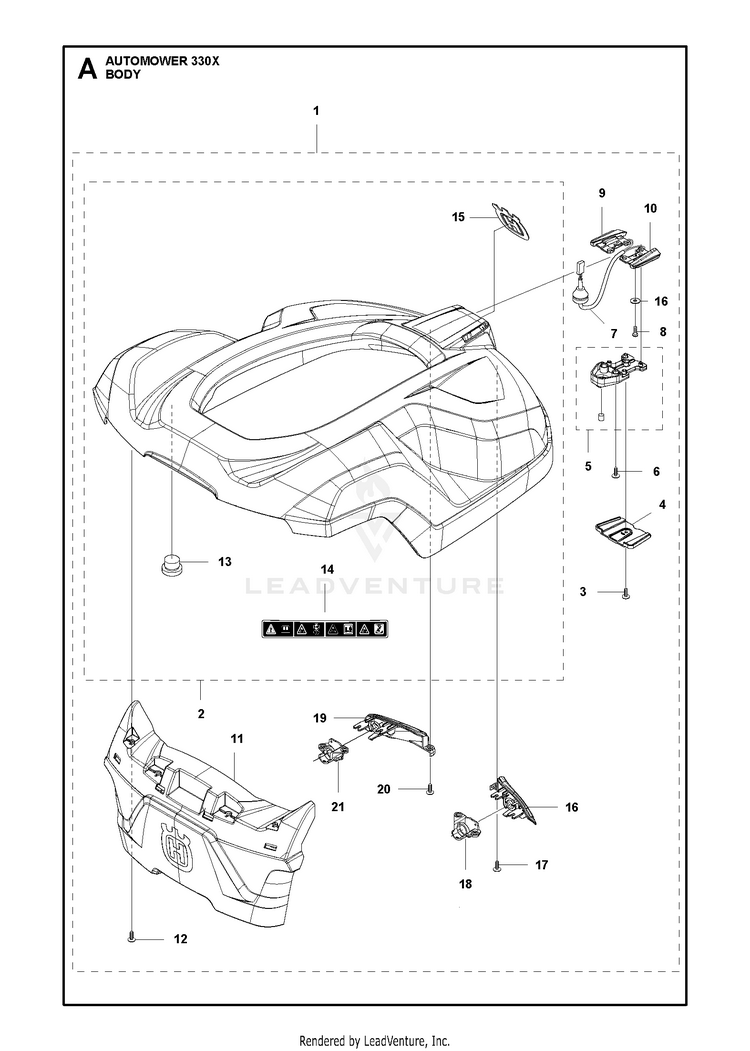

Husqvarna AUTOMOWER 330X Robotic Lawn Mower

Model: AUTOMOWER 330X

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

COVER

...
...
5
HUS-581620501
...
9
HUS-579533001
...
1
NEEDS DESCRIPTION HUS-580766404
...
14
LABEL WARNING P15 HUS-586359701
...
17
SCREW 14MM HUS-575543314
...
8
HUS-580877801
...
19
INSERT US-SENSOR LEFT - GREY HUS-580497301
...
11
BUMPER REAR HUS-579519802
...
7
HUS-580257301
...
2
BODY KIT GREY HUS-583943103
...
18
HOLDER US-SENSOR RIGHT, BLANK HUS-580497404
...
21
HOLDER HUS-580497403
...
16
INSERT US-SENSOR RIGHT - GREY HUS-580497302
...
12
SCREW ITXPANT HUS-574450101
...
15
DECAL HUSQVARNA CROWN HEIGHT 5 For 2014 & 2013 models HUS-574382101
...
3
SCREW 14MM HUS-575543314
...
10
HUS-579533002
...
20
SCREW 14MM HUS-575543314
...
4
HUS-580351901
...
22
WASHER HUS-734113741
...
15
DECAL HUSQVARNA CROWN HEIGHT 5 For 2015 models HUS-587423501
...
13
CAP SNAPLOC HUS-580526801
...
6
SCREW 14MM HUS-575543314
