Husqvarna AUTOMOWER 330X Robotic Lawn Mower

Model: AUTOMOWER 330X

Back To Assemblies

Save Part Not Listed?
product name

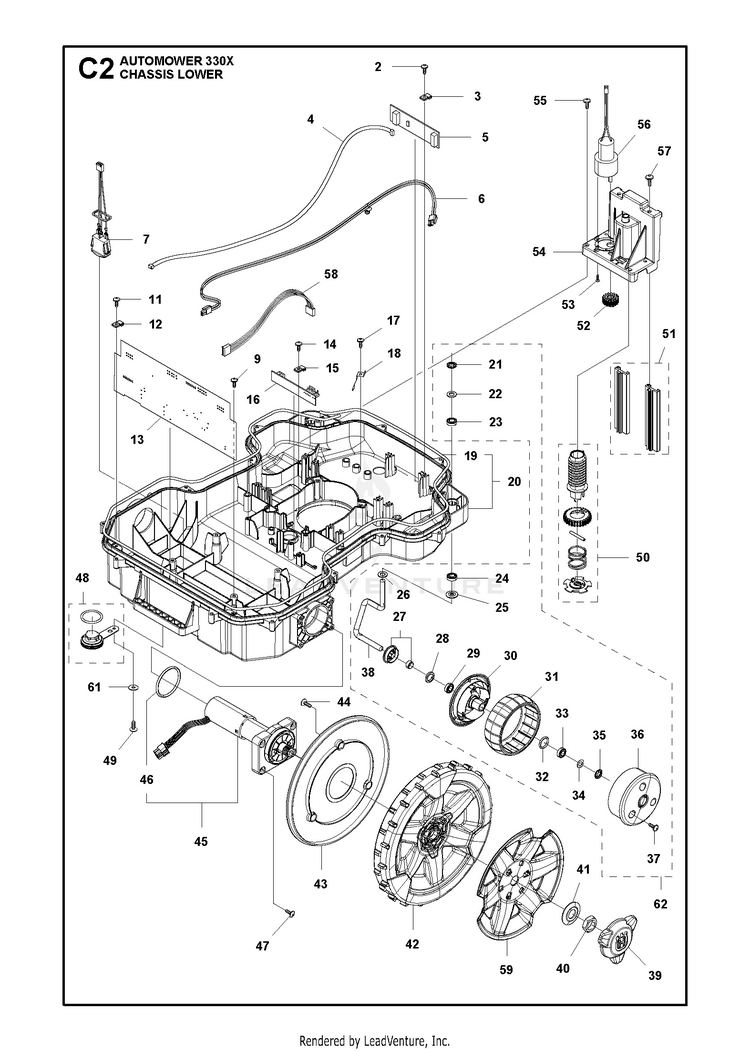

CHASSIS LOWER

...
...
52
HUS-579564701
...
61
WASHER HUS-734113741
...
30
WHEEL FRONT WHEEL INSIDE HUS-579457101
...
33
BALL BEARING SINGLE ROW S688 HUS-580605101
...
57
HUS-510722901
...
23
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
51
BEARING KIT HUS-581621801
...
47
SCREW ITXPANT HUS-574450101
...
38
SPINDLE HUS-580336102
...
49
SCREW 14MM HUS-575543314
...
6
HUS-580370701
...
43
WHEEL ASSY D249 HVA LIGHT GREY HUS-582280201
...
21
LOCK WASHER PUSH-ON TYPE P 8 S HUS-576019301
...
9
SCREW ITXPANT HUS-574450101
...
5
PRINTED CIRCUIT ASSY PCBA LOOP HUS-579660201
...
55
SCREW 14MM HUS-575543314
...
58
LOOM HEIGHT ADJUSTMENT HUS-579708001
...
27
SHIELD KIT HUS-581621501
...
36
WHEEL FRONT WHEEL OUTSIDE HUS-579457201
...
44
SCREW 14MM HUS-575543314
...
39
HUB CAP REAR WHEEL NO CENTER P HUS-579505502
...
48
PLUG KIT HUS-581621201
...
12
CLAMP PCB HUS-579529401
...
40
HEXAGON THIN NUT HUS-731432401
...
31
WHEEL RUBBER TYRE HUS-574449801
...
37
SCREW 14MM HUS-575543314
...
41
WASHER WASHER REAR WHEEL 16X40 HUS-586210601
...
20
HUS-583944501
...
14
SCREW 14MM HUS-575543314
...
16
HUS-579728501
...
33
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
15
CLAMP PCB HUS-579529401
...
2
SCREW 14MM HUS-575543314
...
56
HUS-580342101
...
23
BALL BEARING SINGLE ROW S688 HUS-580605101
...
3
CLAMP PCB HUS-579529401
...
26
WASHER DIN 988 13X8X0.5 HUS-580764601
...
13
NEEDS DESCRIPTION HUS-592841401
...
34
WASHER DIN 988 13X8X0.5 HUS-580764601
...
50
SCREW KIT HUS-581621601
...
28
SEALING 12X18X3 HUS-580487101
...
11
SCREW 14MM HUS-575543314
...
59
COVER REAR WHEEL NO PAINT HUS-579505702
...
29
BALL BEARING SINGLE ROW S688 HUS-580605101
...
62
Wheels HUS-581621402
...
25
WASHER FRONT WHEEL CENTER HOLE HUS-535087803
...
42
WHEEL ASSY D249 BLACK HUS-582280202
...
53
HUS-510018703
...
4
LOOM LOOP SENSOR HUS-579708201
...
35
LOCK WASHER PUSH-ON TYPE P 8 S HUS-576019301
...
18
SPRING GUIDE HEIGHT ADJUSTMENT HUS-581556101
...
45
MOTOR KIT DRIVE WHEEL P2 For 2015 models HUS-581621307
...
24
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
60
HUS-581822501
...
32
O-RING 2,62X15,54 HUS-580445101
...
17
SCREW 14MM HUS-575543314
...
19
SEALING STRIP Ø5 mm HUS-574874705
...
29
NEEDS DESCRIPTION Tube 50 pcs HUS-597795601
...
24
BALL BEARING SINGLE ROW S688 HUS-580605101
...
7
LOOM ON/ OFF HUS-579708701
...
22
WASHER DIN 988 13X8X0.5 HUS-580764601
...
46
HUS-580443901
...
45
For 2014 & 2013 models HUS-583944401
...
54
HUS-579565101
