Husqvarna AUTOMOWER 330X Robotic Lawn Mower

Model: AUTOMOWER 330X

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

CHARGING STATION

...
...
28
LOOM HOME BUTTON HUS-579708301
...
10
SCREW 14MM HUS-575543314
...
21
NEEDS DESCRIPTION HUS-581622302
...
8
SPRING SPRING CAP HUS-580511401
...
26
HUS-579460801
...
12
HUS-579543001
...
7
SPRING STOP BUTTON HUS-574487001
...
4
PAN CHARGING STATION 320, ONE HUS-579459801
...
14
WASHER HUS-734113741
...
15
SCREW 14MM HUS-575543314
...
24
SCREW 14MM HUS-575543314
...
22
HUS-579708501
...
5
TERMINAL TERMINAL CHARGING STA HUS-580504101
...
17
NEEDS DESCRIPTION HUS-579565501
...
13
NEEDS DESCRIPTION HUS-579460502
...
2
For 2013 models HUS-579448202
...
20
For 2013 models HUS-579459702
...
27
HUS-579730101
...
23
BASE ASSY CHARGING STATION HUS-590094001
...
1
CHARGING STATION AUTO MOWER 33 HUS-580765502
...
2
CAP CHARGING STATION WITHOUT H For 2014 & 2015 models HUS-579448204
...
3
HOLDER CHARGING STATION HUS-579459901
...
30
HEXAGON NUT FLANGE M4 A2-70 HUS-588222101
...
18
LENS DIODE HUS-590217201
...
16
SPRING SPRING CAP HUS-580511401
...
25
HUS-580239601
...
29
SCREW ITXPANM M4X12 8.8 ZP-BC HUS-576213801
...
6
For 2013 models HUS-579462401
...
6
BUTTON CHARGING STATION, RELEA For 2014 & 2015 models HUS-579462402
...
9
NEEDS DESCRIPTION HUS-579458002
...
19
SCREW 14MM HUS-575543314
...
20
LID CHARGING STATION 330, TWO For 2014 & 2015 models HUS-579459703
...
11
NEEDS DESCRIPTION HUS-579462302

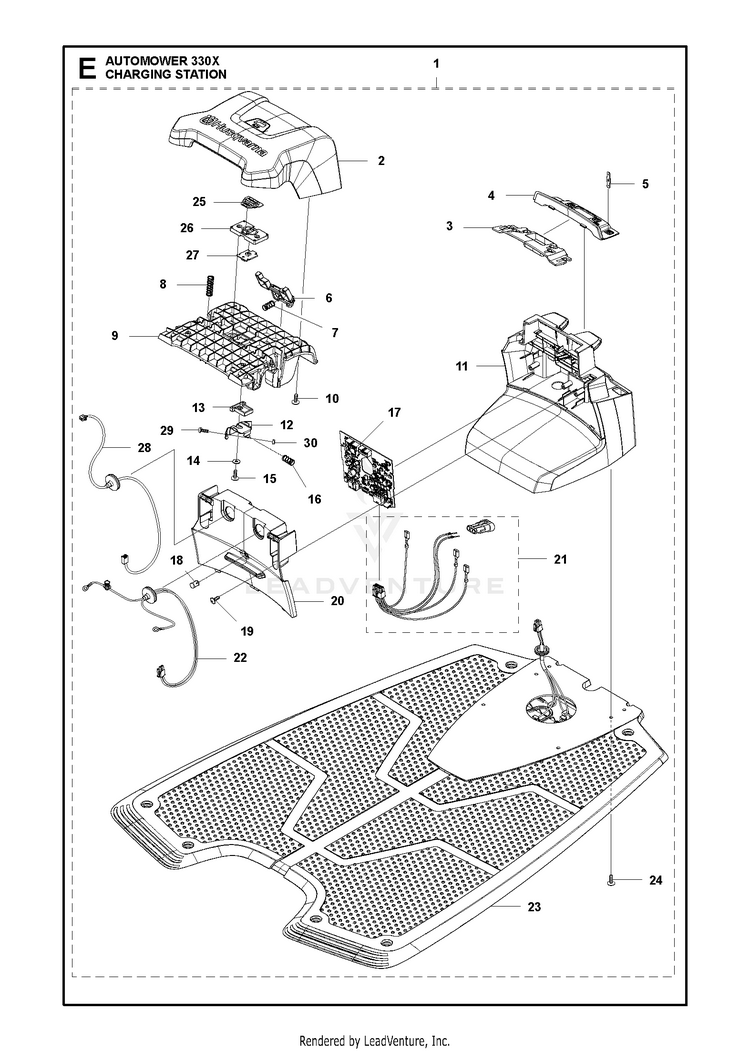

Schematic Image Zoomed
