Husqvarna AUTOMOWER 320 (2015-01) Robotic Lawn Mower

Model: AUTOMOWER 320 (2015-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

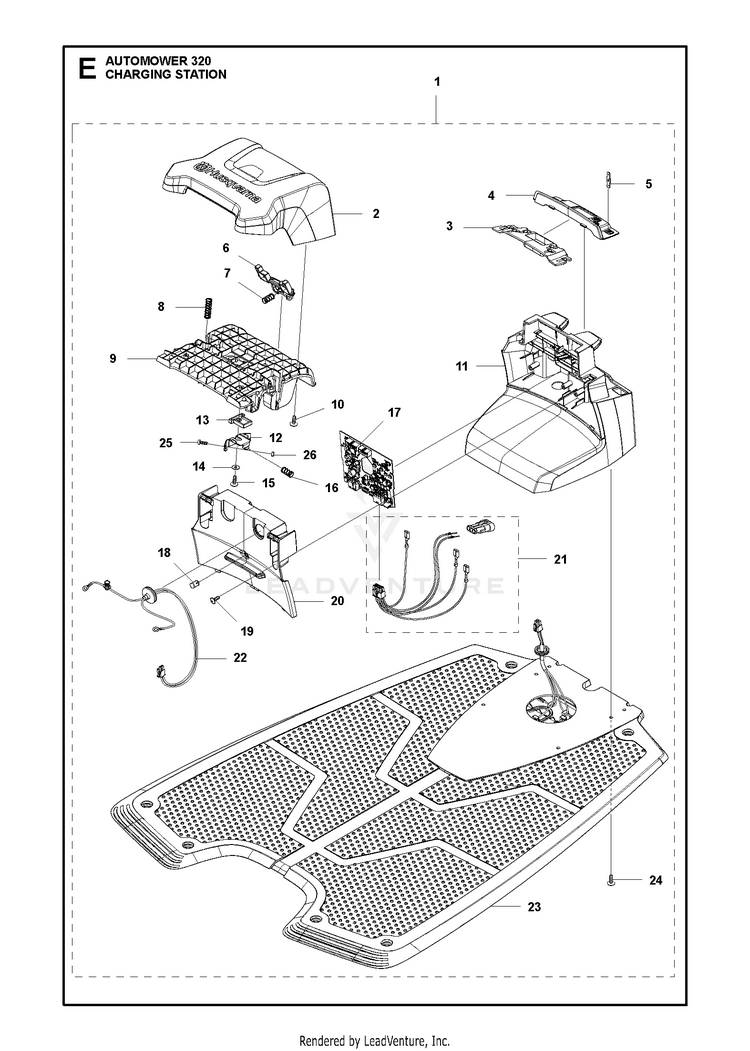

CHARGING STATION

...
...
1
HUS-580765501
...
11
NEEDS DESCRIPTION HUS-579462302
...
14
WASHER HUS-734113741
...
7
SPRING STOP BUTTON HUS-574487001
...
13
NEEDS DESCRIPTION HUS-579460502
...
17
NEEDS DESCRIPTION HUS-579565501
...
3
HOLDER CHARGING STATION HUS-579459901
...
5
TERMINAL TERMINAL CHARGING STA HUS-580504101
...
6
BUTTON CHARGING STATION, RELEA HUS-579462402
...
10
SCREW 14MM HUS-575543314
...
25
SCREW ITXPANM M4X12 8.8 ZP-BC HUS-576213801
...
23
BASE ASSY CHARGING STATION HUS-590094001
...
24
SCREW 14MM HUS-575543314
...
20
LID CHARGING STATION 320, ONE HUS-579459704
...
19
SCREW 14MM HUS-575543314
...
15
SCREW 14MM HUS-575543314
...
21
HUS-581622301
...
2
CAP CHARGING STATION HUS-579448203
...
12
HUS-579543001
...
16
SPRING SPRING CAP HUS-580511401
...
18
LENS DIODE HUS-590217201
...
26
HEXAGON NUT FLANGE M4 A2-70 HUS-588222101
...
9
NEEDS DESCRIPTION HUS-579458002
...
4
PAN CHARGING STATION 320, ONE HUS-579459801
...
22
HUS-579708501
...
8
SPRING SPRING CAP HUS-580511401
