Husqvarna AUTOMOWER 320 (2013-06) Robotic Lawn Mower

Model: AUTOMOWER 320 (2013-06)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

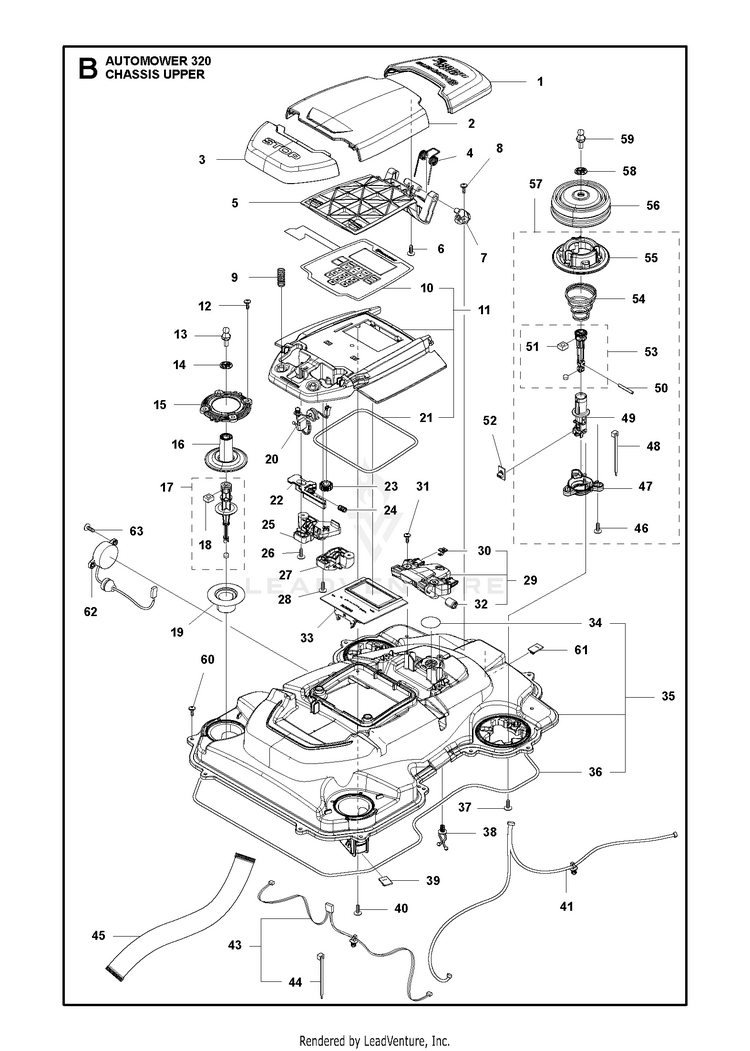

CHASSIS UPPER

...
...
29
SUPPORT KIT FRONT HUS-581620701
...
50
HUS-720127706
...
16
RUBBER GAITERS HUS-577525801
...
61
PRINTED CIRCUIT ASSY COLLISION HUS-592852401
...
30
HUS-580354501
...
55
RETAINER COLLISION SPRING HUS-579484801
...
54
SPRING COLLISION JOYSTICK HUS-580672501
...
22
HUS-579458801
...
24
SPRING LOCK STOP BUTTON HUS-576242201
...
13
STUD SNAPLOC HUS-580526701
...
26
SCREW 14MM HUS-575543314
...
45
LOOM MMI HUS-579706201
...
38
HOLDER TWIST LOCK HUS-580682901
...
4
HUS-580673001
...
11
HUS-581620601
...
35
CHASSIS KIT UPPER HUS-581620802
...
2
HATCH ROBOTIC GREY HUS-579458501
...
36
SEALING STRIP HUS-574874705
...
60
SCREW ITXPANT HUS-574450101
...
32
HUS-580352301
...
31
SCREW 14MM HUS-575543314
...
59
STUD SNAPLOC HUS-580526701
...
43
LOOM KIT LIFT SENSOR HUS-581621101
...
46
SCREW 14MM HUS-575543314
...
34
KIT AIR FILTER KIT 305 - 10 PC HUS-577753701
...
12
SCREW ITXPANT HUS-574450101
...
21
SEALING STRIP 10 PCS HUS-574874706
...
53
HUS-583943301
...
28
SCREW 14MM HUS-575543314
...
40
SCREW 14MM HUS-575543314
...
1
HUS-579458301
...
8
SCREW 14MM HUS-575543314
...
9
SPRING HUS-535130101
...
62
HUS-579706301
...
17
JOYSTICK KIT REAR HUS-501122602
...
49
HUS-579484601
...
58
WASHER JOYSTICK HUS-579525701
...
27
HUS-579505002
...
41
WIRE ASSEMBLY COLLISION SENSOR HUS-581660902
...
3
BUTTON STOP HUS-579458101
...
25
HUS-579505001
...
10
HUS-579627901
...
18
NUT HUS-503226601
...
19
MOVEMENT LIMITER HUS-535143201
...
5
HUS-579458601
...
56
BELLOWS LIFT-COLLISION HUS-579474601
...
57
HUS-581620901
...
21
SEALING STRIP HUS-574874706
...
63
SCREW 14MM HUS-575543314
...
20
SWITCH STOP BUTTON HUS-574480301
...
48
BAND HUS-900238708
...
52
PRINTED CIRCUIT ASSY PCBA LIFT HUS-592852301
...
6
SCREW 14MM HUS-575543314
...
33
HUS-578127101
...
15
HUS-579525901
...
51
NUT HUS-503226601
...
36
SEALING STRIP HUS-574874705
...
47
HUS-579484701
...
7
HUS-579458701
...
37
SCREW ITXPANT HUS-574450101
...
44
BAND HUS-900238708
...
23
HUS-579458401
...
14
WASHER JOYSTICK HUS-579525701
...
39
PRINTED CIRCUIT ASSY COLLISION HUS-592852401
