Husqvarna AUTOMOWER 315 Robotic Lawn Mower

Model: AUTOMOWER 315

Back To Assemblies

Save Part Not Listed?
product name

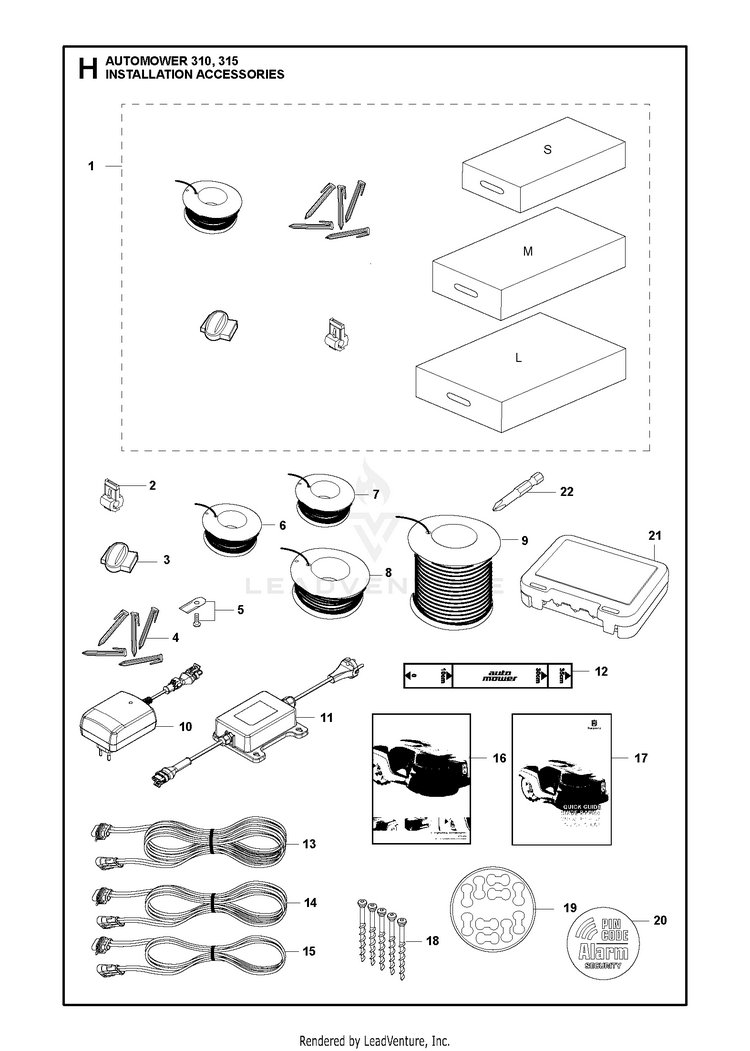

INSTALLATION ACCESSORIES

...
...
13
CABLE ASSY LOW VOLTAGE CABLE Low voltage cable 20m HUS-579825101
...
2
HUS CONNECTOR 5 PCS, BLISTER Loop Wire Connector HUS-596290401
...
6
NEEDS DESCRIPTION Wire (150 m) HUS-597237801
...
3
HUS COUPLER SPLICER 100 PCS Coupler, 100 pcs HUS-596287001
...
5
HUS BLADE SET 45 PCS Long Life - Safety Blade, 45 pcs HUS-596287301
...
22
WRENCH BITS CHANGING ROBOTIC B HUS-596339801
...
11
NEEDS DESCRIPTION Power Supply Unit JP HUS-590442206
...
18
Screws 6 pcs+Key HUS-597435801
...
6
WIRE 50M STANDARD Ø2.7MM,BLIST Wire, Blister Pack, (50 m) HUS-577864302
...
5
HUS BLADE SET 300 PCS Long Life - Safety Blade, 300 pcs HUS-596287302
...
11
NEEDS DESCRIPTION Power Supply Unit UK, IE HUS-590442202
...
1
HUS SMALL INSTALL KIT AM Installation KIT S: Wire (150 m), Staples (300 pcs), Connectors (3 pcs), Couplers (5 pcs) HUS-967944601
...
3
HUS COUPLER SPLICER 5 PCS Coupler, Blister Pack, 5 pcs HUS-596287101
...
20
LABEL SECURITY Label Alarm HUS-579571201
...
8
NEEDS DESCRIPTION Wire (500 m) HUS-522914102
...
7
NEEDS DESCRIPTION Wire (250 m) HUS-580662006
...
12
RULER / CENTIMETERS Measuring Tape HUS-544177501
...
19
STICKER CABLE MARKERS KIT 3 GU Sticker, Cable Markers, 10 pcs HUS-586277902
...
1
HUS MED INSTALL KIT AM Installation KIT M: Wire (250 m), Staples (400 pcs), Connectors (3 pcs), Couplers (5 pcs) HUS-967944602
...
11
Power Supply Unit AU, NZ HUS-584862605
...
9
HUS STD WIRE 800M X 2.7MM Wire (800 m) HUS-596286601
...
10
POWER UNIT SUPPLY 1.3A EU Power Supply Unit EU HUS-529532601
...
15
CABLE ASSY LOW VOLTAGE CABLE Low Voltage Cable (5 m) HUS-579825104
...
11
POWER SUPPLY 1.3A US, CA Power Supply Unit US, CA HUS-529532604
...
1
LG INSTALL KIT BLACK WIRE Installation KIT L: Wire (400 m), Staples (600 pcs), Connectors (5 pcs), Couplers (5 pcs) HUS-967972302
...
11
NEEDS DESCRIPTION Power Supply Unit CH HUS-590442203
...
21
CLG Cable Connector Protection HUS-590855002
...
11
NEEDS DESCRIPTION EU HUS-584862601
...
2
HUS CONNECTOR 5 PCS, BLISTER Loop Wire Connector, Blister Pack, 5 pcs HUS-596290401
...
15
CABLE ASSY LOW VOLTAGE CABLE Low Voltage Cable (3 m) HUS-579825103
...
2
CONNECTOR 100 PCS Loop Wire Connector, Blister Pack, 100 pcs HUS-535129002
...
3
HUS COUPLER SPLICER 5 PCS Coupler HUS-596287101
...
4
HUS AM STAPLE 100 PCS Staples, 100 pcs HUS-596281901
...
14
CABLE ASSY LOW VOLTAGE CABLE Low voltage cable 10m HUS-579825102
...
5
HUS BLADE SET 9 PCS Long Life - Safety Blade, Blister Pack, 9 pcs HUS-596287201
