product name

Husqvarna AUTOMOWER 315 Robotic Lawn Mower

Model: AUTOMOWER 315

Back To Assemblies

Save Part Not Listed?
product name

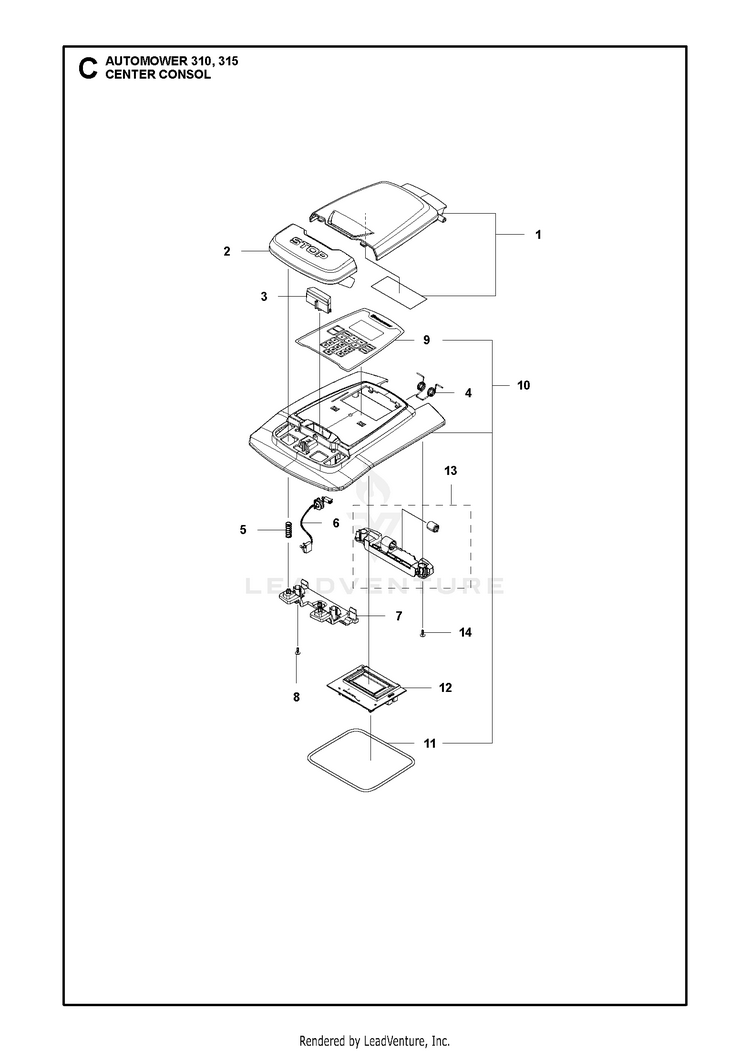

CENTER CONSOL

...
...
10
COVER KIT 2.8" DISPLAY "Cover KIT 2.8"" Display 315" HUS-587449002
...
7
SUPPORT REAR Support Rear HUS-585275701
...
2
BUTTON STOP Stop Button HUS-585275601
...
1
HATCH KIT Hatch KIT HUS-587651301
...
9
KEYBOARD 2.8" DISPLAY "Keyboard 2.8"" Display 315" HUS-584974601
...
11
SEALING STRIP CHASSIS UPPER 10 Sealing Strip (1 pcs, ¯5 mm) HUS-588616101
...
5
SPRING LOCK STOP BUTTON Spring HUS-576242201
...
3
LOCK Lock HUS-585275901
...
13
SUPPORT KIT Support KIT HUS-501106101
...
14
SCREW 14MM Screw HUS-575543314
...
4
TORSION SPRING DT=1,3MM Torsion Spring HUS-585255401
...
8
SCREW 14MM Screw HUS-575543314
...
6
SWITCH STOP BUTTON NO ANCHOR Switch HUS-574480302
...
12
PRINTED CIRCUIT ASSY HMI BOARD "PCBA MMI 2.8"" Display 315" HUS-592910201
