Husqvarna AUTOMOWER 315 (2017-01) Robotic Lawn Mower

Model: AUTOMOWER 315 (2017-01)

Back To Assemblies

Save Part Not Listed?
product name

ACCESSORIES

...
...
31
Technical Handbook -310, 315, Sileno: Spanish (USA) HUS-115820396
...
11
WHEEL KIT AM310/315. HEAVY REA Terrain KIT (Brush KIT + Rear wheels) HUS-587235301
...
31
Technical Handbook -310, 315, Sileno: Croatian HUS-115820381
...
19
ROD Rod HUS-585324101
...
31
Technical Handbook -310, 315, Sileno: Polish HUS-115820361
...
31
Technical Handbook -310, 315, Sileno: Japanese HUS-115820379
...
31
Technical Handbook -310, 315, Sileno: Russian HUS-115820356
...
31
Technical Handbook -310, 315, Sileno: Slovakian HUS-115820368
...
31
Technical Handbook -310, 315, Sileno: Czech HUS-115820390
...
24
HINGE PIN Hinge Pin HUS-585341501
...
31
Technical Handbook -310, 315, Sileno: Lithuanian HUS-115820365
...
31
Technical Handbook -310, 315, Sileno: Romanian HUS-115820362
...
9
COVER Top Cover Grey HUS-587235810
...
21
SPRING SPRING CAP Spring HUS-580511401
...
31
Technical Handbook -310, 315, Sileno: Italian HUS-115820341
...
31
Technical Handbook -310, 315, Sileno: Turkish HUS-115820376
...
16
COVER BASE P15 ROBOTIC GREY Cover Base HUS-586993802
...
2
CABLE WHITE ALT GREY Service Cable (USB) HUS-577518102
...
31
Technical Handbook -310, 315, Sileno: Slovenian HUS-115820384
...
15
COVER LID 315 Lid HUS-585323501
...
31
Technical Handbook -310, 315, Sileno: Norwegian HUS-115820321
...
31
Technical Handbook -310, 315, Sileno: Swedish HUS-115820301
...
31
Technical Handbook -310, 315, Sileno: Finnish HUS-115820311
...
31
Technical Handbook -310, 315, Sileno: Spanish HUS-115820346
...
14
DECAL.HUSQVARNA.210MM Decal HUS-577469001
...
1
DVD AUTOCHECK EXP SERVICE DVD Autocheck EXP HUS-577858103
...
13
COVER House KIT HUS-587236110
...
9
COVER Top Cover White HUS-587235811
...
8
CABLE ASSY QUICK CHARGER Cable Quick Charger HUS-588202601
...
6
HANGER Wallhanger 310/315 HUS-587224010
...
10
WHEEL BRUSH KIT (300 SERIES) Wheel Brush KIT (Holder x2, Brush x6) HUS-587235711
...
31
Technical Handbook -310, 315, Sileno: Portuguese HUS-115820359
...
31
Technical Handbook -310, 315, Sileno: English HUS-115820326
...
28
SUPPORT BASE RIGHT Support Right HUS-585323801
...
29
SCREW IHPANM M6X25 4.6 ZP-BC Screw HUS-535129303
...
31
Technical Handbook -310, 315, Sileno: Hungarian HUS-115820358
...
31
Technical Handbook -310, 315, Sileno: Danish HUS-115820306
...
31
Technical Handbook -310, 315, Sileno: French HUS-115820331
...
4
LABEL WARRANTY SEAL DEALER Warranty Seal 1pcs HUS-580689502
...
31
Technical Handbook -310, 315, Sileno: Latvian HUS-115820364
...
20
Screws Screw KIT, 6 pcs HUS-597435801
...
25
HANDLE RELEASE RIGHT Handle Right HUS-585324001
...
30
CONNECT MODULE 2G / 3G AMC - Automower Connect KIT HUS-586662305
...
9
COVER Top Cover Orange HUS-587235812
...
23
SCREW 14MM Screw HUS-575543314
...
31
Technical Handbook -310, 315, Sileno: Estonian HUS-115820363
...
31
Technical Handbook -310, 315, Sileno: Dutch HUS-115820336
...
31
Technical Handbook -310, 315, Sileno: Greek HUS-115820371
...
12
BRUSH WITH CARTON. PROP65 Brush, 6 pcs HUS-505132812
...
31
Technical Handbook -310, 315, Sileno: German HUS-115820351
...
18
HANDLE RELEASE LEFT Handle Left HUS-585324002
...
27
NUT Square Nut HUS-503226601
...
5
TEST EQUIPMENT Interruption Detector HUS-577606801
...
7
CHARGER TEST CHARGER ROBOTICS Quick Charger with Battery Test HUS-588408402
...
3
BAG Bag HUS-522916701
...
26
SUPPORT BASE LEFT Support Left HUS-585323802
...
22
BEAM Beam HUS-585341601
...
17
HATCH P2 GREY Hatch HUS-585323602

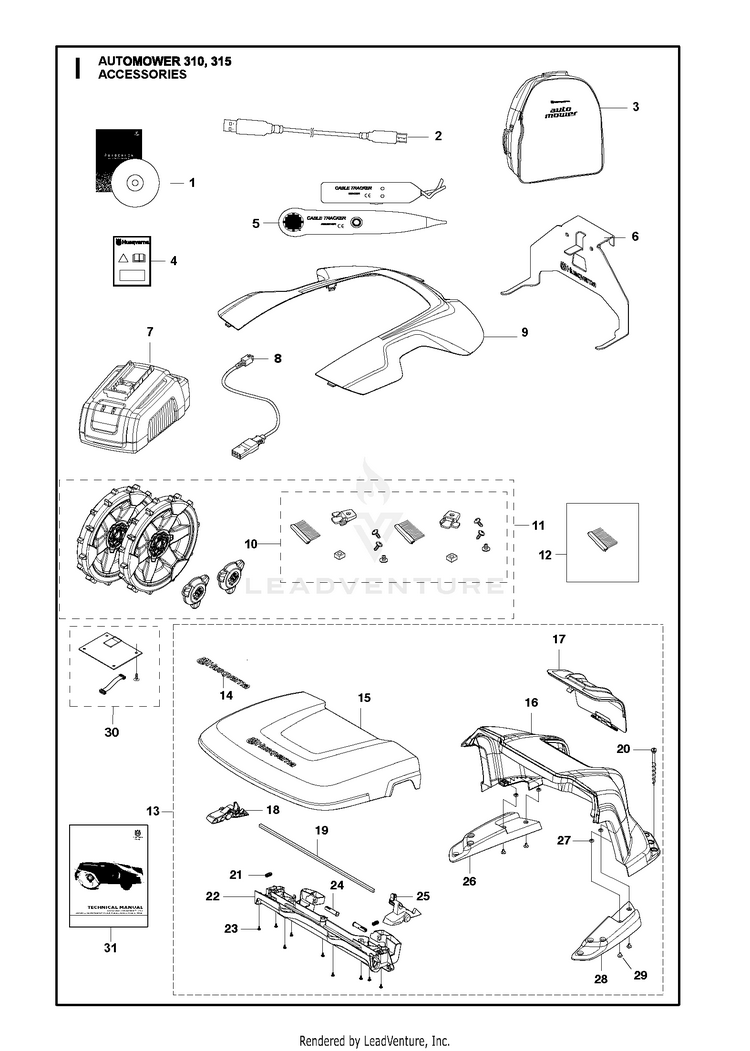

Schematic Image Zoomed
