product name

Husqvarna AUTOMOWER 315 (2017-01) Robotic Lawn Mower

Model: AUTOMOWER 315 (2017-01)

Back To Assemblies

Save Part Not Listed?
product name

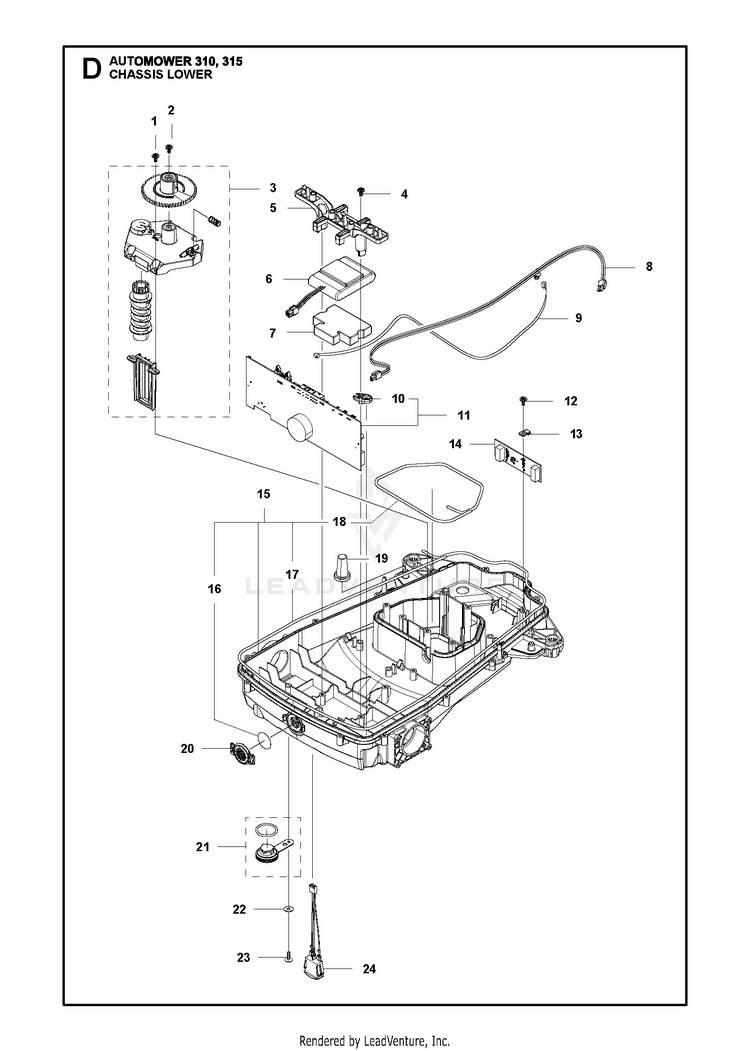

CHASSIS LOWER

...
...
20
COVER Cover Filter HUS-586038902
...
2
SCREW ITXPANT Screw HUS-574450101
...
3
COVER KIT Cover KIT HUS-501106601
...
15
CHASSIS KIT LOWER Chassis Lower KIT HUS-587449202
...
13
CLAMP PCB Clamp HUS-579529401
...
1
SCREW ITXPANT Screw HUS-574450101
...
14
PRINTED CIRCUIT ASSY LOOP SENS Sensor Board HUS-592852701
...
19
COLUMN FRONT Pillar HUS-586342601
...
10
CLIP PCB Clips HUS-585538301
...
6
BATTERY LI-ION Battery HUS-589586201
...
8
WIRING ASSY CHARGING LINK AWG1 Loom Charging HUS-534156603
...
21
PLUG KIT Plug KIT HUS-581621202
...
17
SEALING STRIP P 15 CHASSI LOW Sealing Strip (1 pcs, ¯5 mm) HUS-574874709
...
16
KIT AIR FILTER KIT 305 - 10 PC Air Filter HUS-577753701
...
24
LOOM ON/ OFF Loom On-Off HUS-579708701
...
4
SCREW ITXPANT Screw HUS-574450101
...
22
WASHER Washer HUS-734113741
...
7
WEIGHT CENTER Weight HUS-587249601
...
9
LOOM LOOP SENSOR Loom Loop Sensor HUS-579708201
...
18
SEALING STRIP CHASSIS UPPER 10 Sealing Strip (1 pcs, ¯5 mm) HUS-588616101
...
5
HOLDER BATTERY AND WEIGHT Holder Battery HUS-589498001
...
23
SCREW ITXPANT Screw HUS-574450101
...
12
SCREW ITXPANT Screw HUS-574450101
...
11
PRINTED CIRCUIT ASSY MAIN BOAR Main Board HUS-592851801
