Husqvarna AUTOMOWER 310 Robotic Lawn Mower

Model: AUTOMOWER 310

Back To Assemblies

Save Part Not Listed?
product name

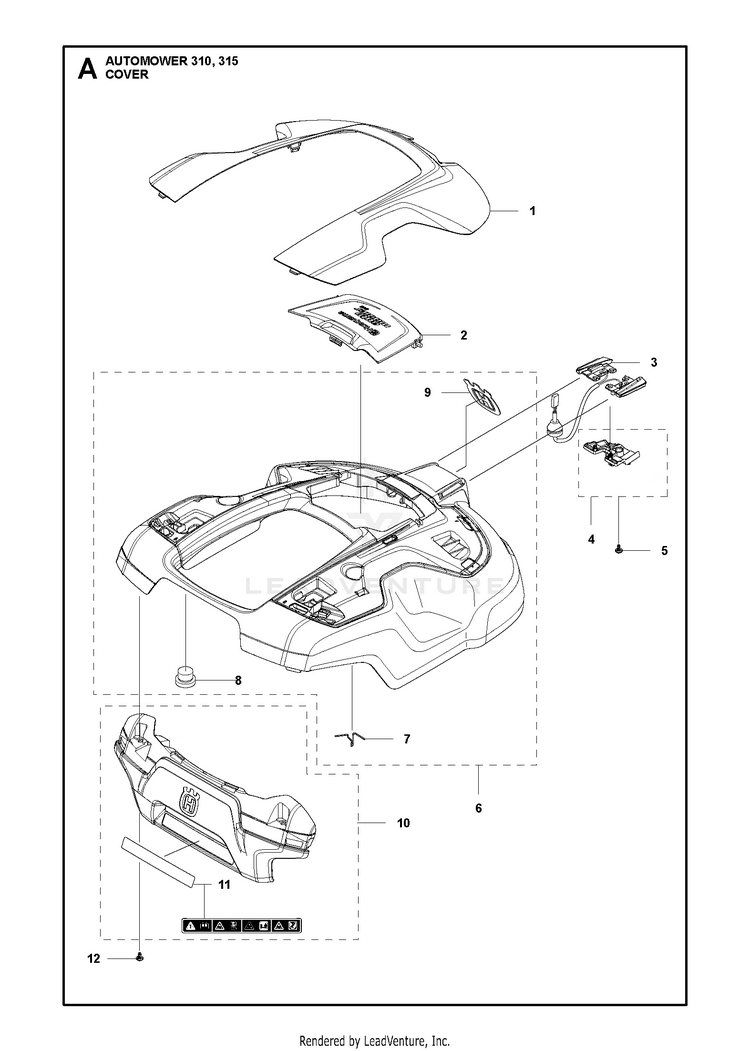

COVER

...
...
3
WIRING ASSY CHARGING PLATE GRE Charging Plate Wiring HUS-531144701
...
1
COVER Top Cover Orange HUS-587235812
...
10
BUMPER KIT Bumper ASSY HUS-587448701
...
1
COVER Top Cover White HUS-587235811
...
7
SPRING HOOD Spring Hood HUS-587419402
...
1
COVER Top Cover Grey HUS-587235810
...
11
LABEL WARNING P15 Label Warning HUS-586359701
...
2
HOOD 310 Hood 310 HUS-585538101
...
4
HOLDER KIT MAGNET Holder KIT HUS-587448602
...
12
SCREW ITXPANT Screw HUS-574450101
...
8
CAP SNAPLOC Cap Snaploc HUS-580526801
...
5
SCREW ITXPANT Screw HUS-574450101
...
6
BODY KIT Body ASSY HUS-587448501
...
9
DECAL HUSQVARNA CROWN HEIGHT 5 Crown HUS-574382101
