Husqvarna AUTOMOWER 310 Robotic Lawn Mower

Model: AUTOMOWER 310

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

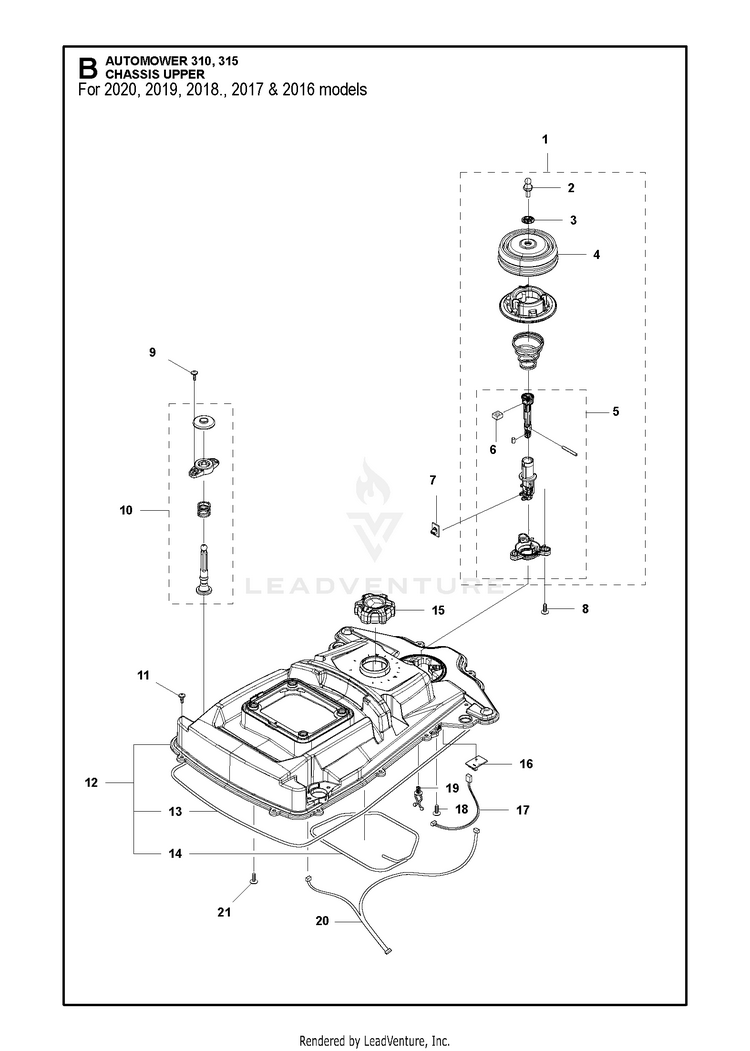

CHASSIS UPPER 2016-

...
...
9
SCREW ITXPANT Screw HUS-574450101
...
21
SCREW ITXPANT Screw HUS-574450101
...
11
SCREW ITXPANT Screw HUS-574450101
...
10
JOYSTICK ASSY REAR Joystick KIT Rear HUS-594058601
...
5
JOYSTICK KIT Joystick ASSY HUS-587448802
...
4
BELLOWS LIFT-COLLISION Bellows HUS-579474601
...
1
JOYSTICK KIT Joystick KIT Front HUS-581620903
...
13
SEALING STRIP P 15 CHASSI LOW Sealing Strip (1 pcs, ¯5 mm) HUS-574874709
...
15
KNOB HEIGHT ADJUSTMENT Knob HUS-585281401
...
7
PRINTED CIRCUIT ASSY PCBA LIFT PCBA Lift Sensor HUS-592852301
...
17
LOOM LIFT, COLLISION Loom Lift-Collision HUS-585208501
...
19
HOLDER TWIST LOCK Holder Twist Lock HUS-580682901
...
16
PRINTED CIRCUIT ASSY COLLISION PCBA Collision Sensor HUS-592909501
...
18
SCREW ITXPANT Screw HUS-574450101
...
8
SCREW 14MM Screw HUS-575543314
...
3
WASHER JOYSTICK Washer HUS-579525701
...
6
NUT Square Nut HUS-503226601
...
20
WIRING ASSY HMI Loom HUS-588797801
...
2
STUD SNAPLOC Stud HUS-580526701
...
14
SEALING STRIP CHASSIS UPPER 10 HUS-588616101
...
12
CHASSIS KIT Chassis KIT HUS-587448902
