Husqvarna AUTOMOWER 310 (2018-) Robotic Lawn Mower

Model: AUTOMOWER 310 (2018-)

Back To Assemblies

Save Part Not Listed?
product name

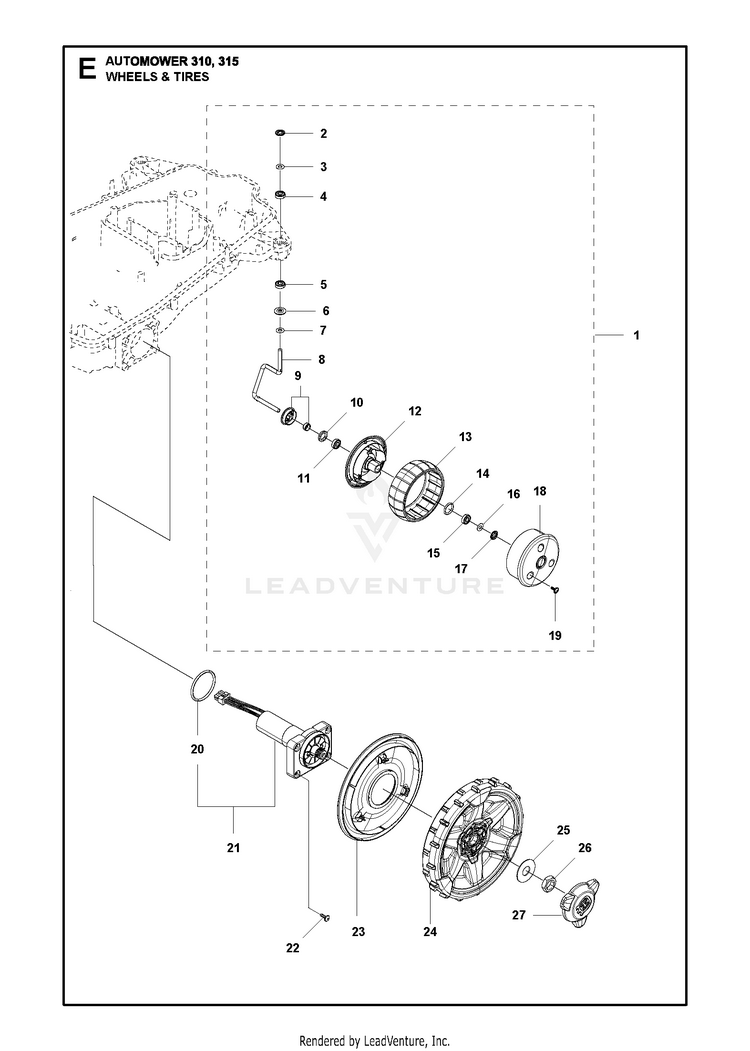

WHEELS & TIRES

...
...
11
BALL BEARING SINGLE ROW S696 Ball Bearing HUS-585214201
...
20
O-RING LIGHT GREY O-ring HUS-580443902
...
21
Motor Motor ASSY HUS-587449404
...
9
SHIELD KIT Shield KIT HUS-587449301
...
10
SEALING 12X18X3 Sealing HUS-580487101
...
7
WASHER FRONT WHEEL 6MM Washer HUS-585196801
...
2
LOCKWASHER STARLOCK SS 6MM GEO Lock Washer HUS-576019402
...
23
COVER REAR WHEEL Cover - Rear Wheel HUS-585065601
...
12
WHEEL FRONT WHEEL INSIDE Wheel Inside HUS-579457101
...
22
SCREW ITXPANT Screw HUS-574450101
...
19
SCREW 14MM Screw HUS-575543314
...
17
LOCKWASHER STARLOCK SS 6MM GEO Lock Washer HUS-576019402
...
14
O-RING 2,62X15,54 O-ring HUS-580445101
...
6
WASHER Washer HUS-535087802
...
24
WHEEL COVER GREY HVA Rear Wheel HUS-590217501
...
8
SPINDLE FRONT WHEEL 6 MM Spindle HUS-585187201
...
5
BALL BEARING SINGLE ROW S696 Ball Bearing HUS-585214201
...
25
WASHER WASHER REAR WHEEL 16X40 Washer HUS-586210601
...
4
BALL BEARING SINGLE ROW S696 Ball Bearing HUS-585214201
...
26
HEXAGON THIN NUT Thin Nut HUS-731432401
...
16
WASHER FRONT WHEEL 6MM Washer HUS-585196801
...
13
WHEEL RUBBER TYRE Wheel Tyre HUS-574449801
...
18
WHEEL FRONT WHEEL OUTSIDE Wheel Outside HUS-579457201
...
1
WHEEL KIT FRONT Front Wheel Assy HUS-587651901
...
15
BALL BEARING SINGLE ROW S696 Ball Bearing HUS-585214201
...
3
WASHER FRONT WHEEL 6MM Washer HUS-585196801
...
27
HUB CAP REAR WHEEL NO CENTER P Hub Cap HUS-579505502
