Husqvarna AUTOMOWER 305 (2012-01) Robotic Lawn Mower

Model: AUTOMOWER 305 (2012-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

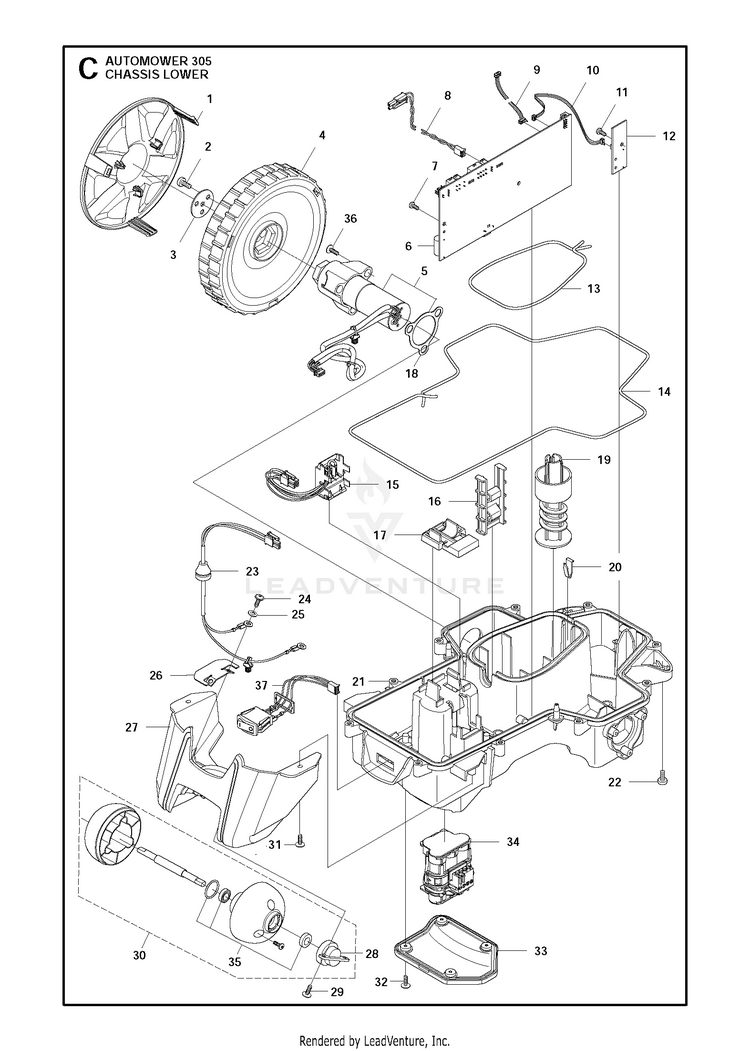

CHASSIS LOWER

...
...
8
LOOM BUZZER EXTENSION HUS-576220201
...
1
NEEDS DESCRIPTION HUS-575430801
...
16
GUIDE RAIL MOTOR BOWL HUS-574501901
...
3
WASHER DRIVE WHEEL HUS-577093201
...
21
HUS-577846201
...
10
HUS-574479001
...
4
HUS-574465101
...
37
HUS-574479401
...
32
SCREW ITXPANT HUS-574450101
...
26
HUS-574490001
...
13
NEEDS DESCRIPTION HUS-577753602
...
14
NEEDS DESCRIPTION HUS-577843602
...
24
SCREW 14MM HUS-575543314
...
30
HUS-578275101
...
29
SCREW 14MM HUS-575543314
...
19
SCREW HEIGHT ADJUSTMENT HUS-574484601
...
25
FIBER WASHER HUS-535087401
...
2
SCREW ITXPANM M5X12 8.8 ZP-BC HUS-576213902
...
5
NEEDS DESCRIPTION HUS-577839901
...
18
GASKET MOTOR FLANGE HUS-574373701
...
33
COVER BATTERY HUS-574467301
...
34
BATTERY LI-ION HUS-589586101
...
15
LOOM BATTERY 18 V LLITHIUM HUS-574479801
...
7
SCREW HUS-535130310
...
11
SCREW HUS-535130310
...
12
HUS-575640901
...
31
SCREW 14MM HUS-575543314
...
28
BEARING HOUSING REAR WHEEL HUS-577715001
...
27
HUS-574467201
...
6
HUS-575640501
...
23
HUS-574477702
...
35
REAR WHEEL BEARING AND SEALING HUS-578275201
...
20
LOCKING SPRING HUS-577103201
...
36
SCREW 14MM HUS-575543314
...
22
SCREW ISO 14583 M5X12 T25 A2-7 HUS-590740201
...
17
LOCK BATTERY PLUG HUS-575408201
...
9
HUS-574479201
