Husqvarna AUTOMOWER 260 ACX Robotic Lawn Mower

Model: AUTOMOWER 260 ACX

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

CHASSIS UPPER

...
...
577 52 72-01
CABLE CLAMP HUS-577527201
...
540 06 03-03
DISPLAY HUS-540060303
...
577 52 58-01
RUBBER GAITERS HUS-577525801
...
535 12 25-01
PRINTED CIRCUIT ASSY HUS-578789003
...
900 23 87-08
BAND HUS-900238708
...
575 54 33-14
SCREW 14MM HUS-575543314
...
535 12 39-01
BRAKER HUS-535123901
...
544 01 13-01
COLLISION CENSOR For 2010, 2009 & 2008 models HUS-544011301
...
544 12 69-01
MAIN RIBBON HARNESS HUS-544126901
...
535 14 47-01
FILTER HUS-535144701
...
574 45 01-01
SCREW ITXPANT HUS-574450101
...
575 54 33-14
SCREW 14MM HUS-575543314
...
505 17 43-01
RING FASTENER HUS-505174301
...
544 14 15-03
HUS-544141503
...
575 98 62-01
NEEDS DESCRIPTION HUS-575986202
...
577 67 06-01
DAMPER RUBBER For 2011, 2010 & 2009 models HUS-577670601
...
535 13 04-01
BRACKET FOR BAND HUS-535130401
...
577 59 23-01
SWITCH KIT HUS-577592301
...
577 52 59-01
NEEDS DESCRIPTION HUS-577525901
...
535 12 25-01
PRINTED CIRCUIT ASSY HUS-578789003
...
523 05 59-01
HUS-523055901
...
522 98 59-01
HUS-522985901
...
535 12 22-01
STEERING WHEEL HUS-535122201
...
575 94 42-03
HUS-575944203
...
535 12 79-01
BRACKET HUS-535127901
...
535 14 32-01
MOVEMENT LIMITER HUS-535143201
...
525 81 54-01
HUS-525815401
...
510 08 66-01
HUS-510086601
...
574 45 01-01
SCREW ITXPANT HUS-574450101
...
535 07 60-02
SCREW HUS-535076002
...
577 59 84-01
NEEDS DESCRIPTION HUS-577598401
...
535 10 17-01
RUBBER HOOD ON/OFF SWITCH HUS-535101701
...
523 05 60-01
HUS-523056001
...
522 03 93-02
HUS-522039302
...
575 98 63-01
NEEDS DESCRIPTION HUS-575986302
...
575 54 33-14
SCREW 14MM HUS-575543314
...
575943801
CHASSIS UPPER For 2009 & 2008 models HUS-506494001
...
503 22 66-01
NUT HUS-503226601
...
577670601
For 2008 models HUS-535091402
...
575 94 38-01
CHASSIS UPPER For 2011 & 2010 models HUS-575943801

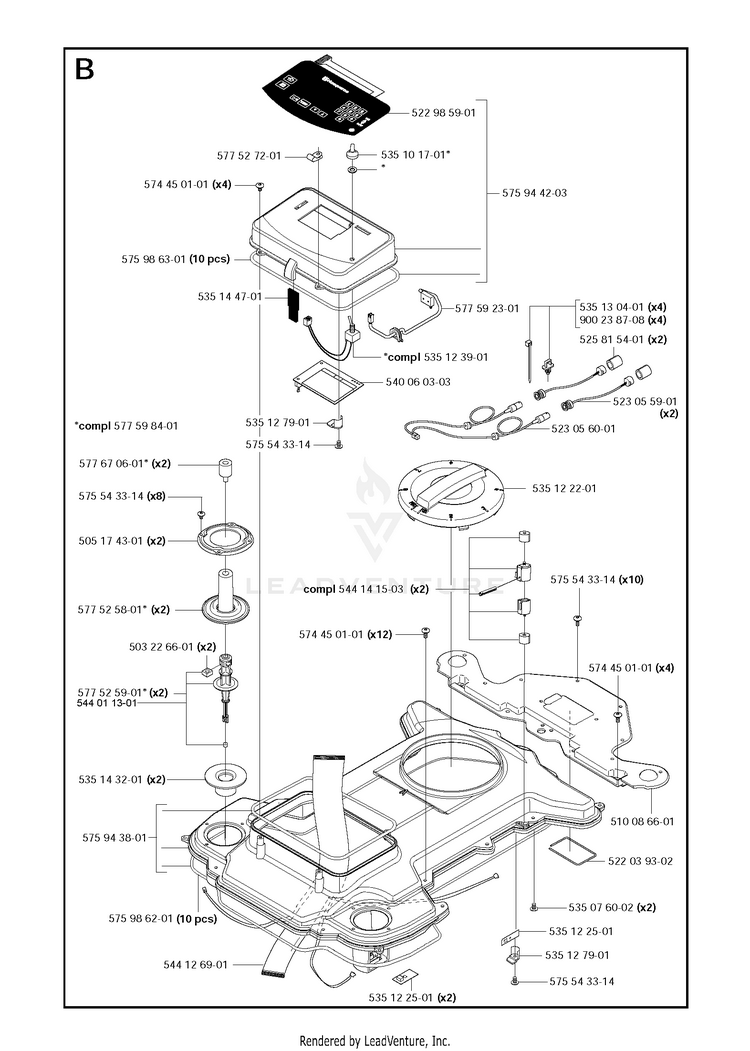

Schematic Image Zoomed
