product name

Husqvarna AUTOMOWER 220 AC Robotic Lawn Mower

Model: AUTOMOWER 220 AC

Back To Assemblies

Save Part Not Listed?
product name

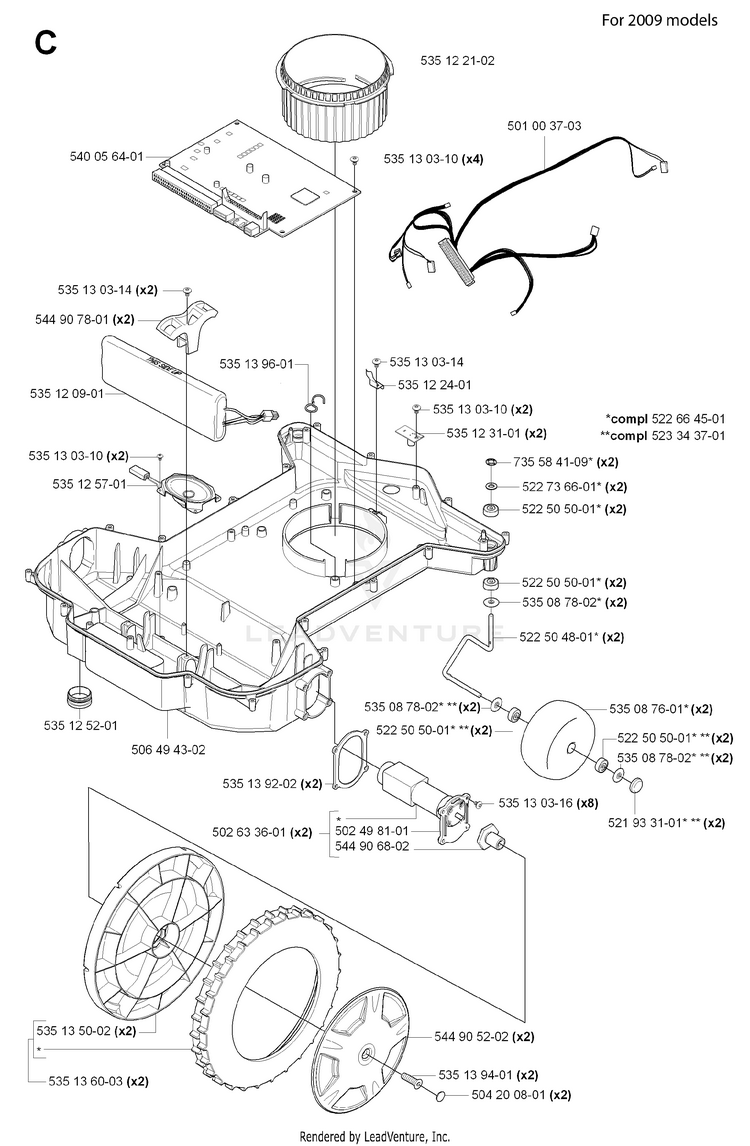

CHASSIS LOWER 2009

...
...
535 12 31-01
Circuits HUS-592852201
...
535 13 60-03
GEAR WHEEL HUS-535136003
...
522 50 50-01
BALL BEARING HUS-522505001
...
535 13 96-01
HOLDER HUS-535139601
...
502 63 36-01
HUS-502633601
...
506 49 43-02
HUS-506494302
...
535 13 94-01
SCREW HUS-535139401
...
735 58 41-09
LOCKWASHER STARLOCK SS 6MM GEO HUS-576019402
...
535 08 78-02
WASHER HUS-535087802
...
522 50 48-01
SPINDLE HUS-522504801
...
522 73 66-01
WASHER HUS-522736601
...
535 13 03-10
SCREW HUS-535130310
...
535 13 03-14
SCREW HUS-535130314
...
535 12 21-02
CUTTING HEIGHT NUT HUS-535122102
...
544 90 78-01
BRACKET HUS-544907801
...
521 93 31-01
COVER WASHER HUS-521933101
...
522 66 45-01
KIT FRT WHL AXLE 535087601 HUS-522664501
...
535 13 03-10
SCREW HUS-535130310
...
544 90 68-02
HUB HUS-544906802
...
522 50 50-01
NEEDS DESCRIPTION Tube 50 pcs HUS-593081101
...
535 13 03-16
SCREW HUS-575543316
...
535 12 52-01
PLUG HUS-535125201
...
535 12 09-01
BATTERY HUS-535120902
...
501 00 37-03
MAIN WIRING HUS-501003703
...
535 08 76-01
WHEEL, FRONT HUS-575231701
...
535 12 24-01
SPRING HUS-535122401
...
535 12 57-01
LOUD SPEAKER HUS-535125701
...
523 34 37-01
BEARING KIT 6MM AXLE HUS-523343701
...
540 05 64-01
PRINTED CIRCUIT ASSY PCBA AM22 HUS-592852001
...
504 20 08-01
COVER WASHER HUS-504200801
...
535 13 03-14
SCREW HUS-535130314
...
535 13 50-02
WHEEL LOGO ADDED HUS-535135002
...
502 49 81-01
HUS-502498101
...
544 90 52-02
HUB CAP HUS-544905202
