Husqvarna AUTOMOWER 220 AC Robotic Lawn Mower

Model: AUTOMOWER 220 AC

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

COVER 2010-2011

...
...
513 99 61-00
DECAL HUS-513996102
...
535 12 93-05
SCREW IHPANM HUS-535129305
...
535 13 04-01
BRACKET FOR BAND HUS-535130401
...
535 12 66-02
COVER HUS-535126602
...
574 43 09-01
BUMPER, COVER HUS-574430901
...
575 54 33-06
SCREW WHITE 6MM HUS-575543306
...
734 11 37-41
WASHER HUS-734113741
...
735 58 52-09
WASHER HUS-735585209
...
535 13 01-01
SPRING HUS-535130101
...
505 13 14-01
SPACER HUS-505131401
...
575 54 33-14
SCREW 14MM HUS-575543314
...
535 12 67-02
SWITCH HUS-535126702
...
535 07 60-02
SCREW HUS-535076002
...
535 13 59-01
THIN PLATE HUS-535135901
...
535 12 68-01
LOOP HUS-535126801
...
510 09 67-01
BODY KIT INCLUDING NEW BODY & HUS-510096701
...
575 54 33-12
SCREW 12MM HUS-575543312
...
535 13 49-02
HEIGHT ADJ. COVER LATCH HUS-535134902
...
522 79 27-01
LABEL WARNING HUS-522792701
...
575 54 33-10
SCREW SILVER 10MM HUS-575543310
...
535 13 73-01
WIRING ASSY HUS-535137303
...
900 23 87-08
BAND HUS-900238708
...
535 13 02-01
SPRING HUS-535130201
...
535 13 53-01
JOINT HUS-535135301
...
535 12 78-01
SHAFT HUS-535127801
...
535 13 57-01
SPRING HUS-535135701
...
575 54 33-10
SCREW SILVER 10MM HUS-575543310
...
535 08 98-01
CLIP RETAINER HUS-535089801
...
544 91 80-02
COVER HUS-544918002

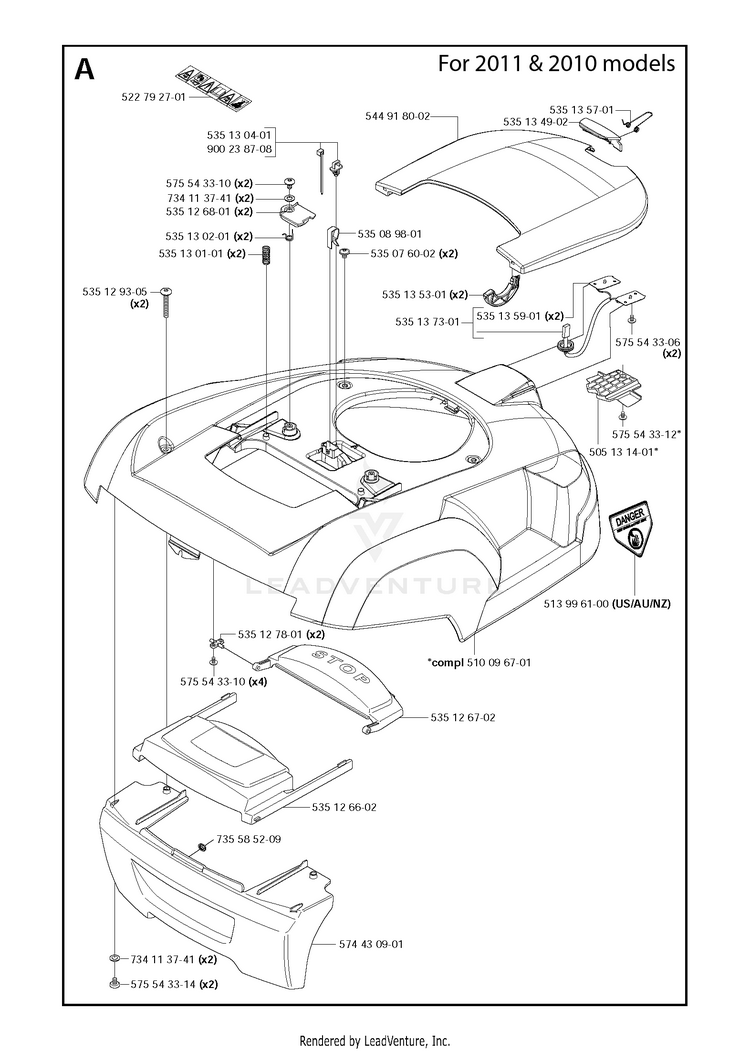

Schematic Image Zoomed
