Husqvarna AUTOMOWER 105 Robotic Lawn Mower

Model: AUTOMOWER 105

Back To Assemblies

Save Part Not Listed?
product name

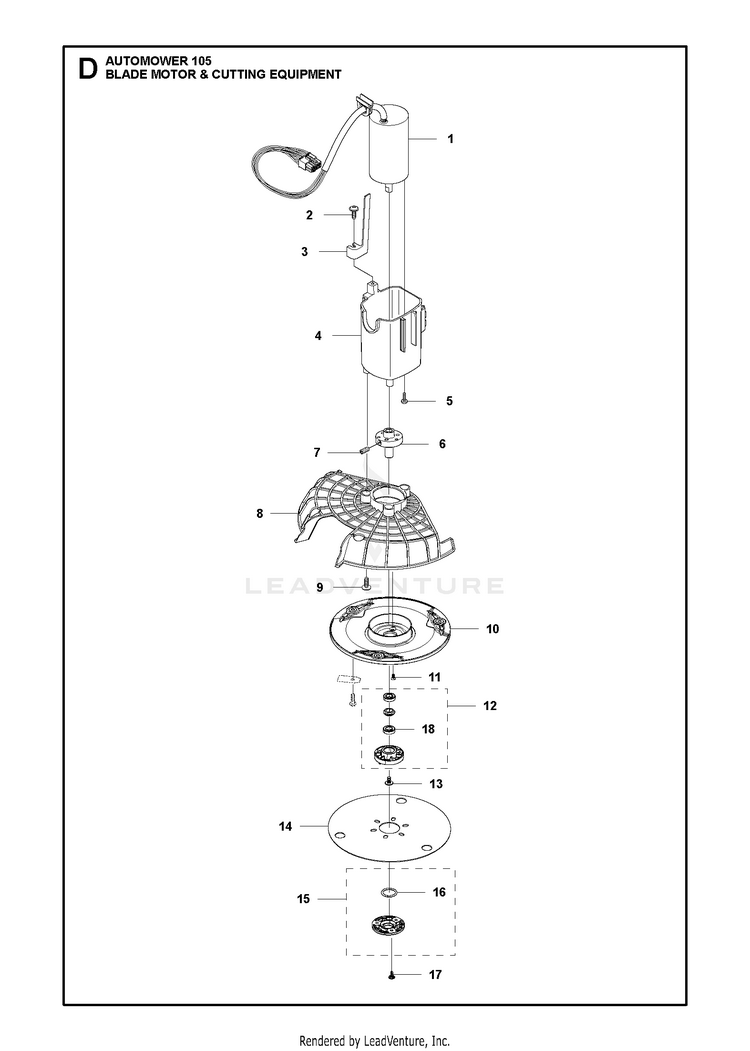

BLADE MOTOR & CUTTING EQUIPMENT

...
...
5
SCREW ITXPANM M4X12 8.8 ZP-BC For 2020, 2019, 2018 models HUS-576213801
...
1
MOTOR CUTTING, TYPE 2 Cutting Motor HUS-584989302
...
14
NEEDS DESCRIPTION Skid Plate HUS-587423701
...
5
SCREW ITXPANM M4X12 A2-70 PAT For 2017 & 2016 models HUS-588222201
...
6
NEEDS DESCRIPTION Hub, Cutting Motor HUS-587423401
...
7
SCREW IHSETM M5X10 8.8 ZP-BC Stop Screw HUS-576213501
...
12
BEARING HOUSING ASSY Bearing Housing ASSY HUS-588421702
...
18
BALL BEARING BALL BEARING 535 Tube 50 pcs HUS-593080801
...
17
SCREW 14MM Screw HUS-575543314
...
2
SCREW 14MM For 2016 models HUS-575543314
...
4
MOTOR HOUSING Motor Housing HUS-581020301
...
2
SCREW SILVER 10MM For 2020, 2019, 2018 & 2017 models. Screw, Grey (14 mm). HUS-575543310
...
16
O-RING 20X2,5 MM O-Ring HUS-585297501
...
13
SCREW Screw HUS-535076001
...
18
BALL BEARING 2 RS,TIGHT CLEAR HUS-535075703
...
11
SCREW TORX M4X8 8.8 NYLON PATC Screw HUS-535130502
...
9
SCREW 14MM Screw, Grey (14 mm) HUS-575543314
...
8
GUARD CUTTING DISC Guard, Cutting Disc HUS-579758301
...
15
COVER KIT BEARING Bearing Cover HUS-587449601
...
3
HEIGHT INDICATOR Height Indicator HUS-574503501
...
10
NEEDS DESCRIPTION Cutting Disc HUS-587423601
Schematic Image Zoomed
