Husqvarna AR 25 (2003-08) Aerator

Model: AR 25 (2003-08)

Back To Assemblies

Save Part Not Listed?
product name

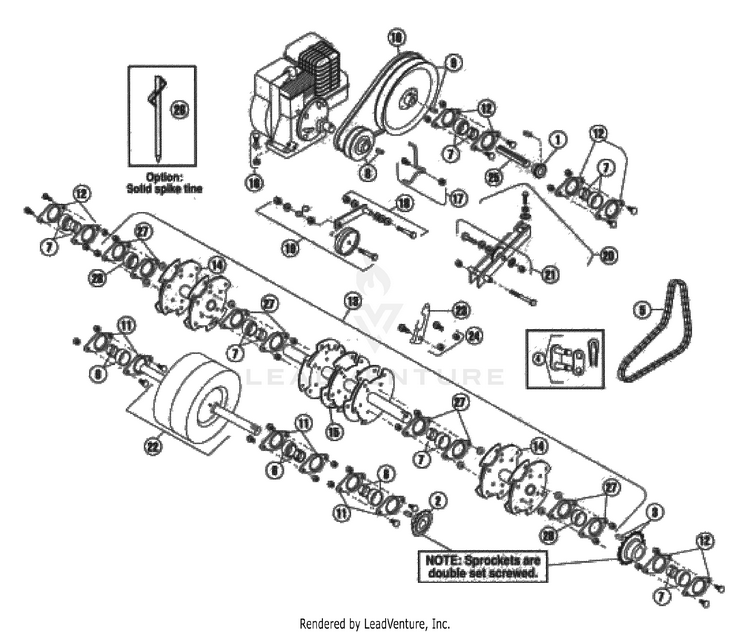

Power Train And Tine Rotor

...
...
1
SPROCKET,JACKSHAFT,WITH KEY HUS-539007416
...
2
SPROCKET WHEEL W/SET SCREWS HUS-539007417
...
3
SPROCKET,ROTOR,WITH SET SCREWS HUS-539007418
...
4
MASTER LINK #50 for 540007420 HUS-539007419
...
5
CHAIN, ROLLER #50 HUS-539130886
...
6
BRG 3/4" W/LOCKING COLLAR HUS-539000315
...
7
BRG 1" W/LOCKING COLLAR HUS-539000317
...
8
V-PULLEY, A-4"X3/4" HUS-539000328
...
9
V-PULLEY,A-10 WITH SET SCREWS HUS-539007421
...
10
V-BELT TYPE 4L HUS-539200679
...
11
STAMPING KIT, 3/4" BEARING (for 3/4" bearing) HUS-539005185
...
12
STAMPING KIT 1" BRG (for 1" bearing) HUS-539005786
...
13
TINE ROTOR SHAFT ASSEM HUS-539007422
...
14
OUTER ROTOR PLATE KIT HUS-539007423
...
15
CENTER TINE ROTOR SHAFT HUS-539007424
...
16
FASTENER KIT HUS-540007204
...
17
BELT KEEPER KIT HUS-539007205
...
18
KIT, BELT IDLER ARM HUS-539007206
...
19
BELT IDLER PULLEY KIT HUS-539007207
...
20
KIT, IDLER ARM HUS-539007425
...
21
KIT, IDLER SPROCKET, CHAIN HUS-539007426
...
22
KIT FRONT WHEEL/SHAFT HUS-539007120
...
23
TINE SET OF 42, CLOSED SPOON HUS-539007111
...
23
TINE SET, CLOSED SPOON, 6 EACH HUS-539007112
...
24
TINE/SPIKE FAST. KIT 96 EA. HUS-539007102
...
24
TINE/SPIKE FAST.12 EA HUS-539007103
...
25
JACK SHAFT, W/ KEY HUS-540007427
...
26
SPIKE SET NLA HUS-540007104
...
27
STAMPING KIT 1" BRG (for 1" bearing) with nuts and washers HUS-539005786
...
28
BRG 1" W/LOCKING COLLAR (does not include lock collar) HUS-539000317
