Husqvarna AR 19 (2003-08) Aerator

Model: AR 19 (2003-08)

Back To Assemblies

Save Part Not Listed?
product name

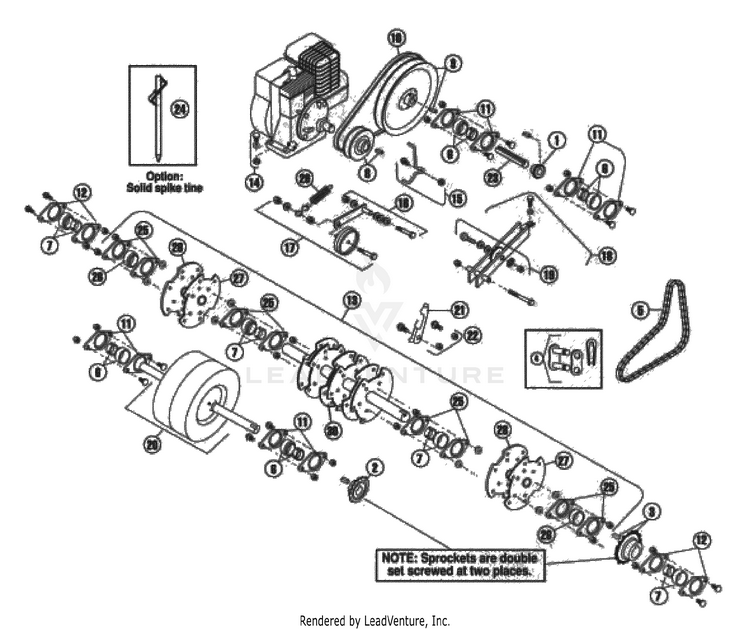

Power Train And Tine Rotor

...
...
1
SPROCKET W/KEY JACK SHAFT 10 T HUS-539000301
...
2
SPROCKET W/KEY 21 TEETH DRIVE HUS-539000302
...
3
SPROCKET W/KEY, ROTOR 27 TEETH HUS-539000303
...
4
LINK, #40 BB/DIXON ZTR for 540000308 HUS-539000307
...
5
CHAIN, STD 51.5 #40 HUS-539112661
...
6
BRG 3/4" W/LOCKING COLLAR HUS-539000315
...
7
BRG 1" W/LOCKING COLLAR HUS-539000317
...
8
V-PULLEY, A-4"X3/4" HUS-539000328
...
9
V-PULLEY, A-10X3/4" HUS-539000332
...
10
V-BELT TYPE 4L HUS-539200679
...
11
STAMPING KIT, 3/4" BEARING (for 3/4" bearing) HUS-539005185
...
12
STAMPING KIT 1" BRG (for 1" bearing) HUS-539005786
...
13
KIT, ROTOR SHAFT WITHOUT TINE HUS-539007631
...
14
FASTENER KIT HUS-540007204
...
15
BELT KEEPER KIT HUS-539007205
...
16
KIT, BELT IDLER ARM HUS-539007206
...
17
KIT, IDLER PULLEY 530 HUS-539007632
...
18
IDLER ARM KIT W/O SPROCKET HUS-539007633
...
19
IDLER SPROCKET KIT HUS-539007634
...
20
KIT, FRONT WHEEL & SHAFT HUS-539007635
...
21
TINE SET (30 EA) CLOSED SPOON HUS-539007636
...
21
TINE SET, CLOSED SPOON, 6 EACH HUS-539007112
...
22
KIT, TINE/SPIKE FASTENER-BOLTS HUS-539007637
...
22
TINE/SPIKE FAST.12 EA HUS-539007103
...
23
JACK SHAFT, W/KEY HUS-539007232
...
24
SPIKE SET HUS-540007638
...
25
STAMPING KIT 1" BRG (for 1" bearing) HUS-539005786
...
26
BRG 1" W/LOCKING COLLAR (does not include lock collar HUS-539000317
...
27
KIT, LEFT ROTOR PLATE HUS-539007639
...
28
KIT, RIGHT ROTOR PLATE HUS-539007640
...
29
SPRING, CLUTCH HUS-539005129
...
30
ROTOR SHAFT HUS-540007641
Schematic Image Zoomed
