Husqvarna AP12R38A (1995) Tractor

Model: AP12R38A (1995)

Back To Assemblies

Save Part Not Listed?
product name

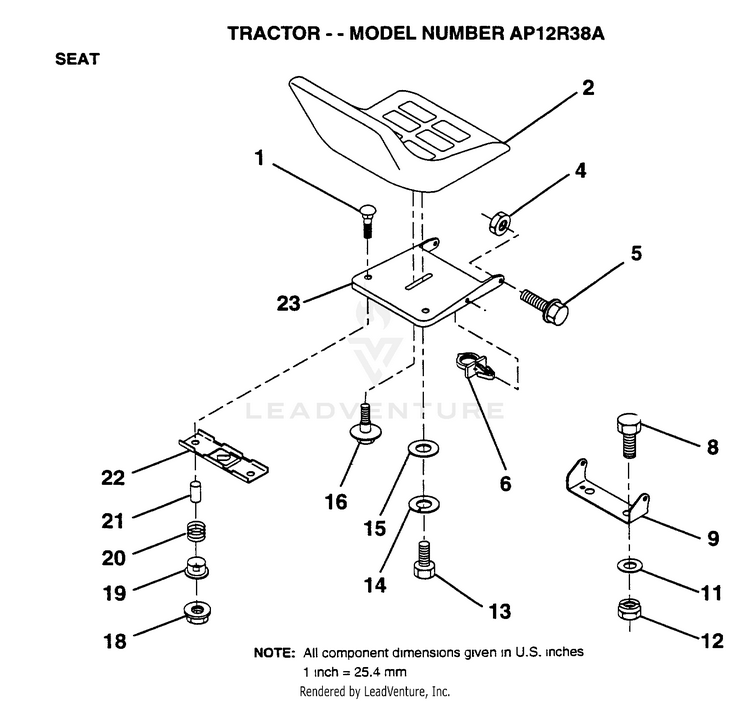

SEAT

...
...
1
SUB= 872050411 HUS-72050411
...
2
SUB= 140119 HUS-127426X
...
4
NUT HUS-73800500
...
5
BOLT.SHLD.5/16-18 HUS-139888
...
6
CLIP.PUSH-IN.HING HUS-145006
...
8
BOLT HUS-74760616
...
9
BRACKET PVT SEAT HUS-140551
...
11
WASHER HUS-19133210
...
12
NUT HUS-73800600
...
13
BOLT HUS-74780814
...
15
WASHER HUS-19171912
...
16
"BOLT,SHOULDER" HUS-127018X
...
18
SUB= 73900400 HUS-123976X
...
19
BUSHING HUS-121248X
...
20
SPRING HUS-121250X
...
21
SPLIT SPACER HUS-134300
...
22
BRKT SWITCH HUS-121246X
...
23
SUB= 155925 HUS-140552
