Husqvarna AP12R38A (1995) Tractor

Model: AP12R38A (1995)

Back To Assemblies

Save Part Not Listed?
product name

HOOD

...
...
1
EXT SPRING HUS-124657X
...
2
NUT HXKEP 1/4X20 HUS-73640400
...
3
WASHER HUS-19091416
...
4
SUB= 74780414 HUS-74780412
...
5
BOLT.SHLD.5/16-18 HUS-139888
...
6
BRKT HOOD RH HUS-122549X
...
7
BRKT HOOD LH HUS-122548X
...
8
SCREW SLTD HXHD HUS-17521312
...
9
NUT HUS-73800400
...
10
"BRACE,HOOD" HUS-123693X
...
11
HOOD HUS-132918X505
...
12
LENS T HUS-127178
...
13
GRILL (BLACK) HUS-134232X428
...
14
CLIP T HUS-4171R
...
15
LIGHT BOX HUS-127177X
...
16
NUT HUS-124346X
...
18
WASHER HUS-19111116
...
19
LOCKWASHER GT HUS-11030400

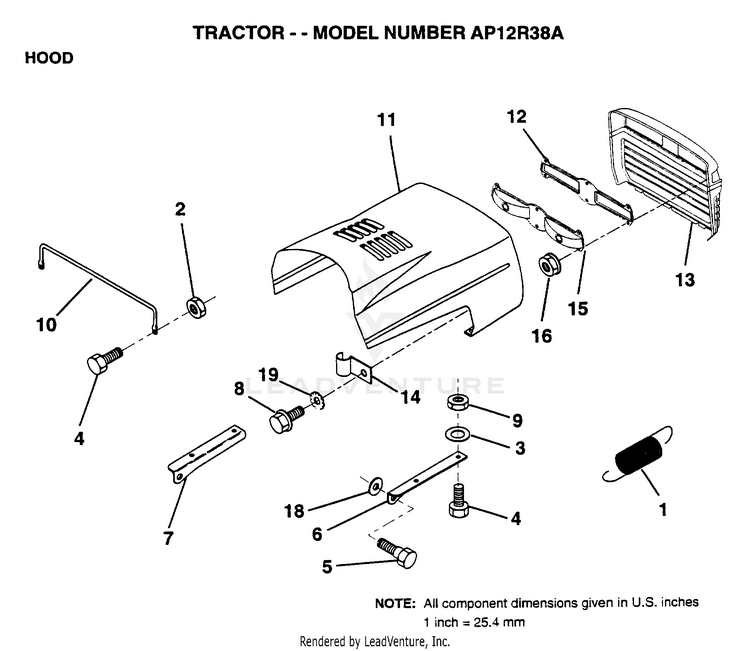

Schematic Image Zoomed
