Husqvarna AP12R38A (1995) Tractor

Model: AP12R38A (1995)

Back To Assemblies

Save Part Not Listed?
product name

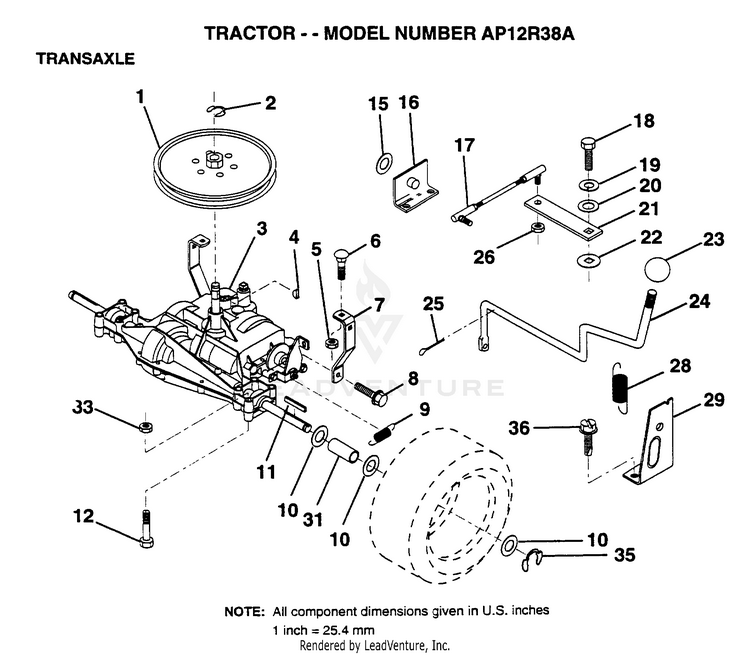

TRANSAXLE

...
...
1
PULLEY HUS-123385X
...
2
SUB= 2267J HUS-12000028
...
3
SUB= 160664 HUS-142603
...
4
SUB= 2228M1 HUS-2228M
...
5
SUB= 73690500 HUS-73680500
...
6
BOLT HUS-72140506
...
7
"STRAP,TORQUE" HUS-123378X
...
8
SCREW HUS-17490512
...
9
SUB= 146682 HUS-110422X
...
10
WASHER HUS-121749X
...
11
SQUARE KEY HUS-123583X
...
12
BOLT HUS-74760644
...
15
WASHER HUS-19171616
...
16
"SUPT,HDLE SHT LH" HUS-124600X
...
17
"LINK,SHIFT" HUS-123632X
...
18
BOLT.1/4-28.W/PAT HUS-74550412
...
19
LOCKWASHER HUS-10040400
...
20
WASHER LT HUS-19091210
...
21
"ARM,SHIFT" HUS-123539X
...
22
WASH-SHFT PLT LT HUS-105701X
...
23
KNOB T (1/2-HOLE) HUS-106933X
...
24
"ROD,SHIFT" HUS-128215
...
25
PIN COTTER 1/8 HUS-76020416
...
26
NUT.LOCK.5/16-24 HUS-73810500
...
28
"SPRING,EXT" HUS-128085
...
29
"SUPT,HDLE RH" HUS-128084
...
31
SPACER LT HUS-109502X
...
33
SUB= 73690600 HUS-73680600
...
35
E-RING LT HUS-12000001
...
36
SCREW HUS-17720408
