Husqvarna AP12R38A (1995) Tractor

Model: AP12R38A (1995)

Back To Assemblies

Save Part Not Listed?
product name

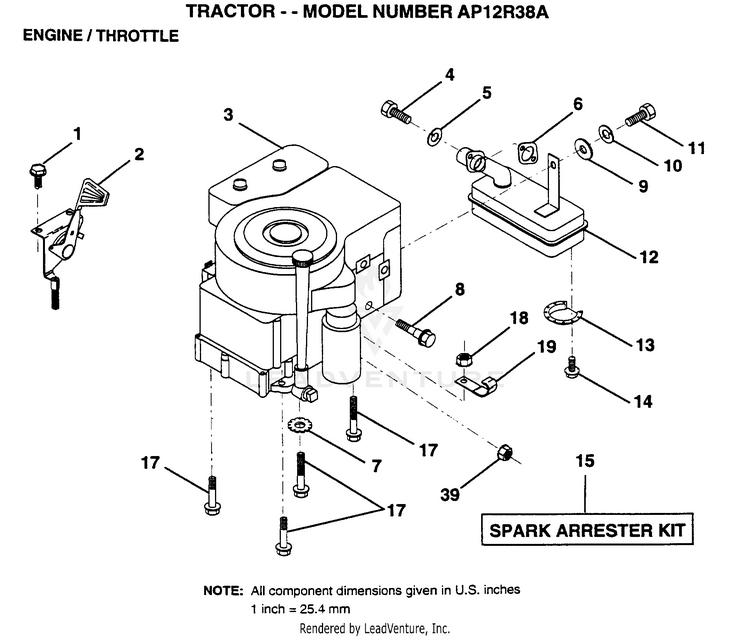

ENGINE/THROTTLE

...
...
1
SCREW.1/4-20X1/2 HUS-17060408
...
2
"CONTROL,THROTTLE" HUS-132752
...
3
ENGINE BRIGGS AND STRATTON HUS-145300
...
4
SCREW HUS-71070512
...
5
LOCKWASHER HUS-10040500
...
6
SUB= 272293 HUS-125593X
...
7
LOCKWASHER HUS-11050600
...
8
BOLT T HUS-121094X
...
9
WASHER HUS-19101216
...
10
LOCKWASHER HUS-10040400
...
12
MUFFLER HUS-137437
...
13
DEFLECTOR.222573 HUS-101326L
...
14
SUB= 17030814 HUS-17030808
...
15
SUB= 532137180 HUS-137180
...
17
SCREW LT HUS-17490624
...
19
CLIP T HUS-2751R
...
23
LOCKWASHER HUS-11050600
...
39
NUT HUS-73510400
