Husqvarna AP125HR38A (1995) Tractor

Model: AP125HR38A (1995)

Back To Assemblies

Save Part Not Listed?
product name

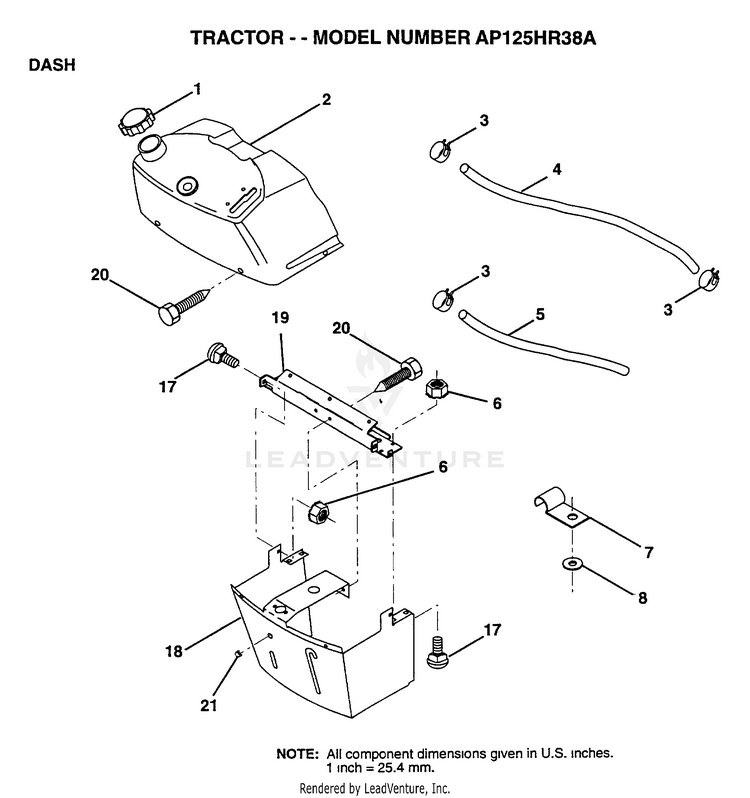

DASH

...
...
1
CAP BLK FUEL LR HUS-141523
...
2
TANK.ASM.DASH.LR HUS-138392
...
3
HOSE CLAMP HUS-123487X
...
4
SUB= 295J HUS-8544R
...
5
FUEL LINE T HUS-8548R
...
6
NUT HXKEP 1/4X20 HUS-73640400
...
7
CLIP T HUS-2751R
...
8
WASHER PM HUS-19091216
...
17
BOLT HUS-72110404
...
18
SUPT ASM DASH HUS-131886
...
19
CROSS BRACE HUS-134744
...
20
SCREW.1/4-20X1/2 HUS-17060408
...
21
PLUG DOME HUS-134014
