Husqvarna AP125HR38A (1995) Tractor

Model: AP125HR38A (1995)

Back To Assemblies

Save Part Not Listed?
product name

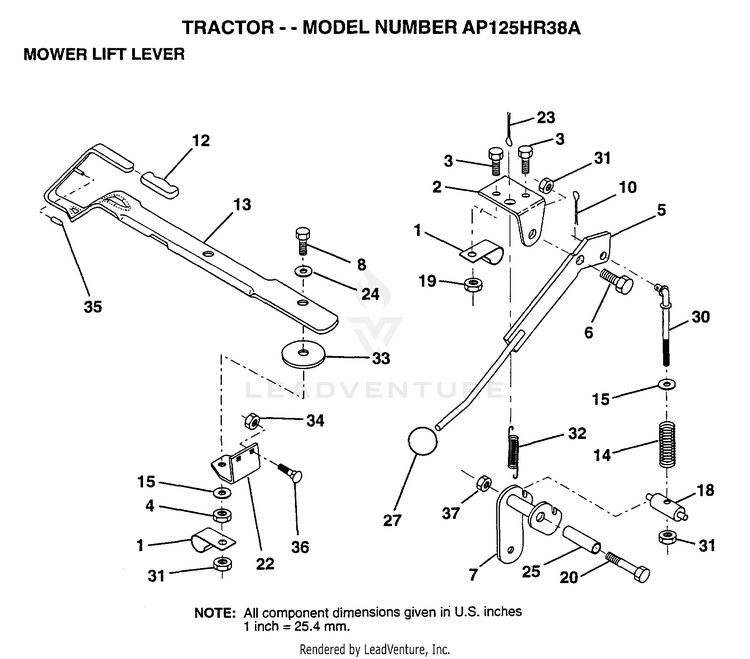

MOWER LIFT LEVER

...
...
1
"CLIP,INSULATOR" HUS-126470X
...
2
BRKT CLUTCH HUS-122018X
...
3
BOLT HXHD FIN HUS-71110408
...
4
NUT HUS-73800600
...
5
LEVER.ASM.CLUTCH HUS-145187
...
6
"BOLT, SHOULDER LT" HUS-106451X
...
7
ARM.CLUTCH.ASM HUS-141435
...
8
BOLT HUS-74930624
...
10
COTTER PIN HUS-76020412
...
12
GRIP HANDLE HUS-122027X
...
13
LEVER LIFT LR HUS-136658
...
14
COMP CLUTCH SPRNG HUS-133939
...
15
WASHER HYT HUS-19131616
...
18
TRUNNION HUS-135107
...
19
SUB= 73690400 HUS-73680400
...
20
BOLT HUS-74760644
...
22
LIFT LEVER BRKT HUS-132561
...
23
SUB= 3145 HUS-76020312
...
24
WASHER HUS-7672J
...
25
TUBE SPACER HUS-121933X
...
27
KNOB HUS-121466X
...
30
ROD TENSION CLUTC HUS-135039
...
31
LOCKNUT HUS-73930600
...
32
SPRING EXT HUS-133435
...
33
WASHER HUS-62333
...
34
NUT HUS-73800500
...
35
VINYL CAP RED HUS-133603
...
36
BOLT HUS-72140506
...
37
SUB= 73690600 HUS-73680600
