Husqvarna AG22H42STA (2004) Tractor

Model: AG22H42STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

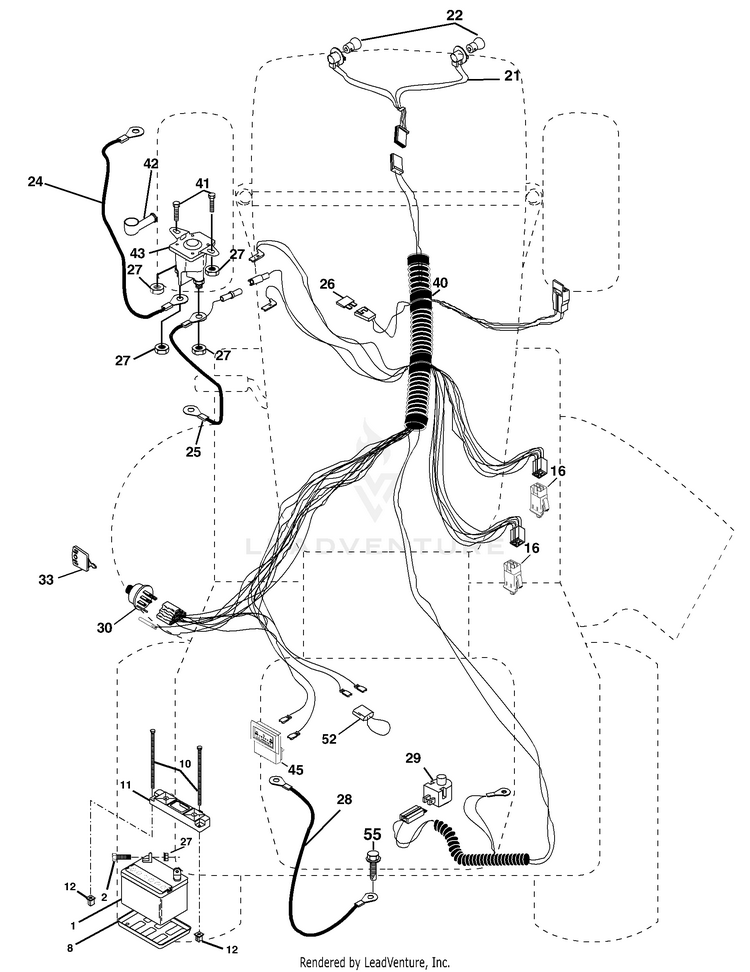

Electrical

...
...
1
Battery HUS-144927
...
2
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-74760412
...
8
Tray Battery HUS-7603J
...
10
Bolt Btr frt 1/4-20 x 7.5 zinc HUS-145211
...
11
Holddown battery HUS-150109
...
12
Nut Push Nylon 1/4 HUS-145769
...
16
Switch Interlock HUS-176138
...
21
Harness Socket Light HUS-183759
...
22
Bulb, Light # 1156 HUS-4152J
...
24
Cable Battery HUS-4799J
...
25
Cable Battery 6 Ga. Red w/16 wire HUS-146148
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 unc HUS-73510400
...
28
Cable Ground 21" Blk 6 Ga. HUS-145491
...
29
Switch Plunger Nc Gray HUS-121305X
...
30
Switch Ign HUS-175566
...
33
Key Ign Molded Generic HUS-140401
...
40
Harness Ign HUS-179720
...
41
Bolt Fin Hex 1/4-20 unc x 1/2 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-178861
...
45
Ammeter Rectangular HUS-121433X
...
52
Protection Loop HUS-141940
...
55
Screw Thdrol 5/16-18 x 1/2 HUS-17490508
