Husqvarna AG185H42STA (2004) Tractor

Model: AG185H42STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

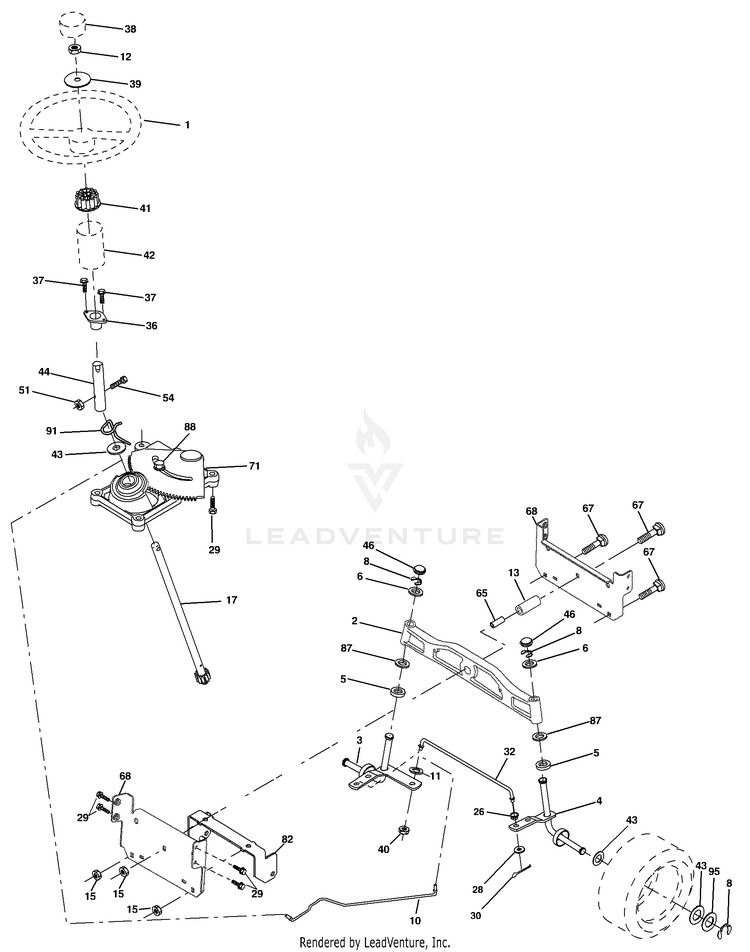

Steering Assembly

...
...
1
Wheel Steering HUS-184704X428
...
2
Axle Asm Cast Iron LT HUS-184706
...
3
Spindle Asm LH HUS-169840
...
4
Spindle Asm RH HUS-169839
...
5
Bearing Race Thrust Harden HUS-6266H
...
6
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
8
Ring Klip #t5304-75 HUS-12000029
...
10
Link Drag HUS-175121
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
12
Nut Hex Jam Toplock 1/2-20 unf HUS-73940800
...
13
Spacer Brg. Axle Front HUS-136518
...
15
Nut Hex Flange Lock HUS-145212
...
17
Shaft Asm. Steering HUS-180641
...
26
Bushing Link Drag HUS-126847X
...
28
Washer 13/32 x 7/8 x 16 Ga. HUS-19131416
...
29
Screw 3/8-16 x .75 HUS-17000612
...
30
Pin Cotter 1/8 x 3/4 HUS-76020412
...
32
Rod Tie HUS-130465
...
36
Bushing Strg HUS-155099
...
37
Screw HUS-152927
...
38
Insert Cap Strg Wh Au HUS-159946X428
...
39
Washer HUS-19182411
...
40
Nut Crownlock 3/8-24 HUS-73540600
...
41
Adaptor Wheel Strg HUS-159945
...
42
Boot Steering Dash HUS-145054X428
...
43
Washer 25/32 x 1 1/4 x 16 Ga. HUS-121749X
...
44
Extension Steering Shaft HUS-180640
...
46
Cap Spindle Fr Top Blk HUS-121232X
...
51
Nut Crownlock 1/4-28 HUS-73540400
...
54
Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8 HUS-71130420
...
65
Brace Axle HUS-160367
...
67
Bolt Rdhd Sq 3/8-16 unc x 2-1/4 HUS-72110618
...
68
Axle, Brace HUS-169827
...
71
Steering Asm. HUS-175146
...
82
Bracket Susp. Chassis Front HUS-169835
...
87
Washer Flat .781 x 1-1/2 x 14 HUS-173966
...
88
Bolt Shoulder 7/16-20 unc HUS-175118
...
91
Clip Steering HUS-175553
...
95
Washer Harden .793 x 1.637 x 060 HUS-188967
