Husqvarna AG17542STB (2004) Tractor

Model: AG17542STB (2004)

Back To Assemblies

Save Part Not Listed?
product name

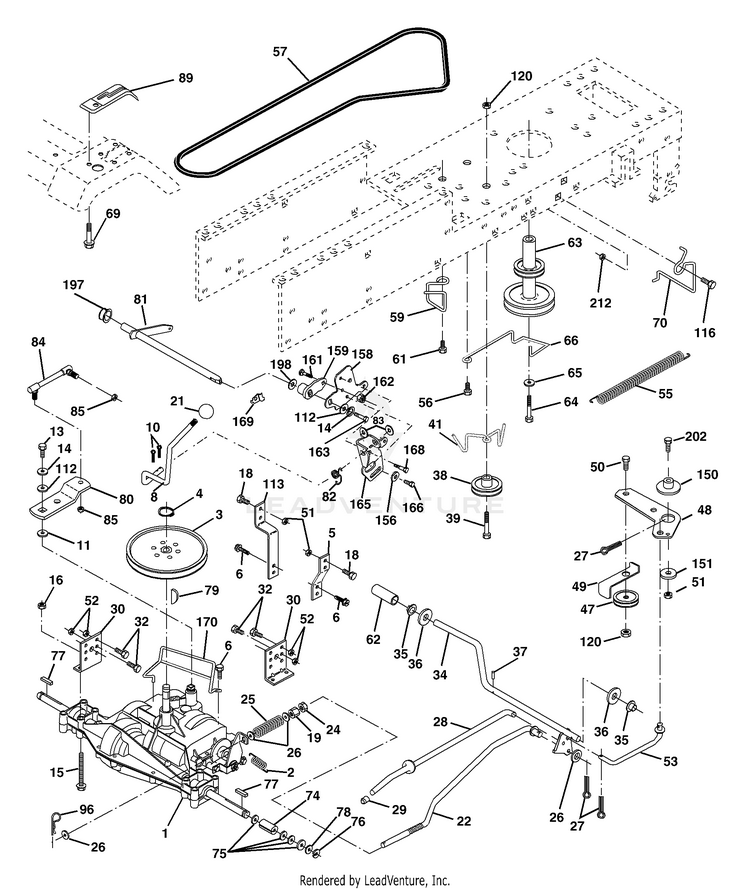

Ground Drive

...
...
2
Spring Return Brake T/a Zinc HUS-146682
...
3
Pulley Transaxle 18" tires HUS-123666X
...
4
Ring Retainer # 5100-62 HUS-12000028
...
5
Strap Torque 30 Degrees HUS-121520X
...
6
Screw 5/16-18 X 3/4 HUS-17000512
...
8
Rod Shift Fender Adjust Lt HUS-165619
...
10
Pin Cotter 1/8 X 1 Cad HUS-76020416
...
11
Washer Plate Shf 388 Sq Hole HUS-105701X
...
13
Bolt 1/4-28 Unf Gr. 8 W/Patch HUS-74550412
...
14
Washer Lock Hvy Helical HUS-10040400
...
15
Bolt Hex FLGHD 5/16-18 Gr. 5 HUS-74490544
...
16
Nut Lock Hex w/ins 5/16-18 HUS-73800500
...
18
Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5 HUS-74780616
...
19
Nut Lock 3/8-16 Unc HUS-73800600
...
21
Knob HUS-106933X
...
22
Rod Brake Blk Zinc 26 840 HUS-130804
...
24
Nut Hex Jam 3/8-16 unc HUS-73350600
...
25
Spring Rod Brake 2 00 Zinc HUS-106888X
...
26
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
27
Pin Cotter 1/8 x 3/4 Cad HUS-76020412
...
28
Rod Brake Parking LT/YT HUS-175765
...
29
Cap Brake Parking HUS-71673
...
30
Bracket Mtg Transaxle HUS-174973
...
32
Bolt Hex Hd 5/16-18 unc x 3/4 HUS-74760512
...
34
Shaft Asm Pedal Foot HUS-175578
...
35
Bearing Nylon Blk 629 Id HUS-120183X
...
36
Washer 21/32 x 1 x 16 Ga. HUS-19211616
...
37
Pin Roll 3/16 X 1" HUS-1572H
...
38
Pulley Composite Flat HUS-179114
...
39
Bolt RDHD 3/8-16 unc x 2-3/4 Gr. 5 HUS-72110622
...
41
Keeper Belt Flat Idler HUS-175556
...
47
Pulley Idler V Groove Plastic HUS-127783
...
48
Bellcrank Asm HUS-154407
...
49
Retainer Belt Style Spring HUS-123205X
...
50
Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
51
Nut Crownlock 3/8-16 unc HUS-73680600
...
52
Nut Crownlock 5/16-18 unc HUS-73680500
...
53
Link Clutch HUS-105710X
...
55
Spring Return Clutch 6 75 HUS-105709X
...
56
Screw 3/8-16 x 1-1/4 HUS-17060620
...
57
V-Belt Ground Drive 95 25 HUS-130801
...
59
Keeper Belt Span Ctr HUS-169691
...
61
Screw 3/8-16 x .875 HUS-17120614
...
62
Cover Pedal Blk Round HUS-8883R
...
63
Engine Pulley HUS-175410
...
64
Bolt Hex HUS-173937
...
65
Washer Lock Hvy Hlcl Spr 7/16 HUS-10040700
...
66
Keeper Belt Engine Foolproof HUS-154778
...
69
Screw Hex wsh Hi Lo 1/4 x 1/2 unc HUS-142432
...
70
Guide Belt Mower Drive RH HUS-134683
...
74
Spacer Axle HUS-137057
...
75
Washer 25/32 x 1 1/4 x 16 Ga. HUS-121749X
...
76
E-ring #5133-75 HUS-12000001
...
77
Key Square 2 0 x 1845/ 1865 HUS-123583X
...
78
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
79
Key Woodruff #9 3/16 x 3/4 HUS-2228M
...
80
Arm Shift HUS-131486
...
81
Shaft Asm Cross Tapered PMST/20 HUS-165594
...
82
Spring Torsion T/a HUS-123782X
...
83
Washer 17/32 x 3/4 x 16 Ga. HUS-19171216
...
84
Link Transaxle PMST/18" Zinc HUS-166228
...
85
Nut Lock Center 1/4 - 28 FNTHD HUS-150360
...
89
Console Shift STLT HUS-169372X428
...
96
Retainer Spring 1" HUS-4497H
...
112
Washer 9/32 x 3/4 x 10 Ga. HUS-19091210
...
113
Strap Torque LT HUS-127285X
...
116
Bolt Rdhd Sq Neck 3/8-16 x 1 HUS-72140608
...
120
Nut Lock Flg. 3/8-16 unc HUS-73900600
...
150
Spacer Retainer HUS-175456
...
151
Washer 13/32 x 2 x 10 HUS-19133210
...
156
Washer Srrted 5/16ID x 1.125 HUS-166002
...
158
Bracket Shift Mount HUS-165589
...
159
Hub Tapered Flange Shift Lt HUS-183900
...
161
Bolt Rdhd Sqnk 1/4-20 x 3/4 HUS-72140406
...
162
Nut Crownlock 1/4-20 unc HUS-73680400
...
163
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-74780416
...
165
Bracket Pivot Lever HUS-165623
...
166
Screw 5/16-18 x 5/8 HUS-17490510
...
168
Bolt Shoulder 5/16-18 x .561 HUS-165492
...
169
Plate Fastening HUS-165580
...
170
Keeper Belt Transaxle Gear HUS-187414
...
197
Nyliner Snap-In HUS-169613
...
198
Washer Nyliner HUS-169593
...
202
Bolt Rd Hd 3/8-16 unc x 1-3/4 Gr. 5 HUS-72110614
...
212
Nut Hexflange Lock HUS-145212
