Husqvarna 961240002, 96124000201 (2009-04) Walk-Behind Mower

Model: 961240002, 96124000201 (2009-04)

Save Part Not Listed?
product name

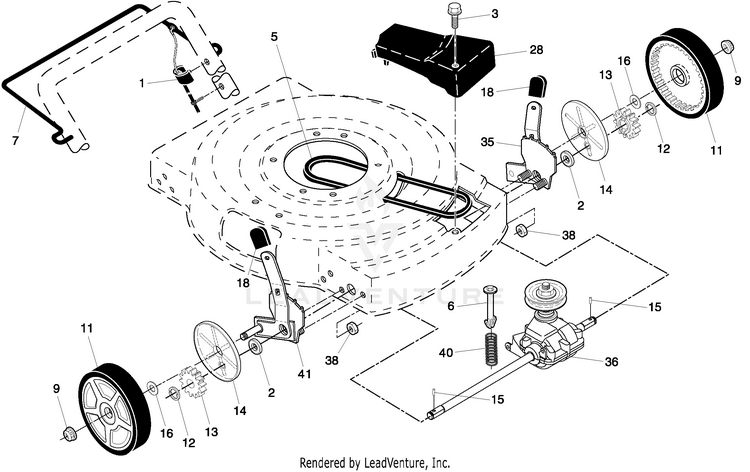

Drive

...
...
1
Drive Control Cable Assembly HUS-194653
...
2
Bearing, Wheel Adjuster HUS-191039
...
3
Pan Head Tapping Screw #10-24 x 2-3/4 HUS-143603
...
5
V-Belt HUS-146527
...
6
Spring Retainer HUS-150495
...
7
Control Bar, Drive HUS-194185X421
...
9
Locknut, Hex HUS-409148
...
11
Wheel & Tire Assembly HUS-193912X421
...
12
E-Ring HUS-12000058
...
13
Pinion HUS-403849
...
14
Dust Cover HUS-189403
...
15
Pawl, Drive HUS-404845
...
16
Washer HUS-67725
...
18
Selector Knob HUS-701037X421
...
28
Drive Cover HUS-194398X428
...
35
Kit, Wheel Adjuster, LH (Includes Knob and Bearing) HUS-424201
...
36
Gear Case Assembly, Complete HUS-415226
...
38
Locknut, Hex 1/4-20 HUS-73800400
...
40
Spring HUS-137090
...
41
Kit, Wheel Adjuster, RH (Includes Knob and Bearing) HUS-424200

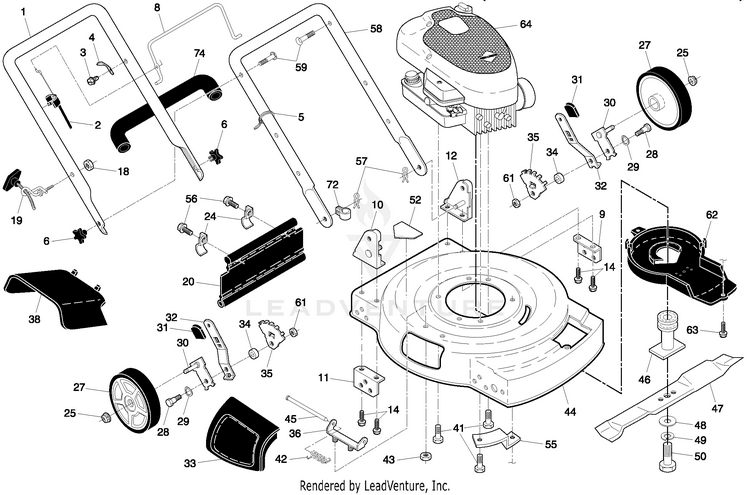

Frame

...
...
1
Upper Handle Assembly (Includes Foam Grip) HUS-427661
...
2
Engine Zone Control Cable HUS-175148
...
3
Screw HUS-750634
...
4
Bracket, Upstop HUS-850733X004
...
5
Wire Tie HUS-664-26
...
6
Handle Knob HUS-182398
...
8
Control Bar HUS-427414X421
...
9
Support Bracket, Handle, LH HUS-153282X479
...
10
Handle Bracket, RH HUS-170345X479
...
11
Support Bracket, Handle, RH HUS-153350X479
...
12
Handle Bracket, LH HUS-170346X479
...
14
Screw, Thread Cutting 5/16-18 x 3/4 HUS-149741
...
18
Locknut, Keps HUS-132004
...
19
Rope Guide HUS-194788
...
20
Rear Skirt HUS-413160
...
24
Clamp, Rear Skirt HUS-192301X004
...
25
Locknut, Hex 3/18-16 HUS-409148
...
27
Wheel & Tire Assembly HUS-193909X421
...
28
Shoulder Bolt HUS-174719
...
29
Washer, Curved, Cylindrical HUS-401630
...
30
Axle Arm Assembly HUS-401179X004
...
31
Knob, Selector HUS-701037X421
...
32
Spring, Selector HUS-401624X004
...
33
Mulcher Door HUS-151889
...
34
Spacer HUS-401629
...
35
Bracket, Wheel Adjuster HUS-407501X005
...
36
Bracket, Housing HUS-154132
...
38
Deflector, Discharge HUS-176509
...
41
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8 HUS-150406
...
42
Spring, Torsion HUS-152124
...
43
Locknut, Hex HUS-73800400
...
44
Kit, Lawn Mower Housing (Includes Key Number 46) HUS-412210
...
45
Rod, Hinge HUS-147286
...
46
Blade Adapter / Pulley HUS-195963
...
47
Blade, 22" HUS-406713
...
48
Washer, Hardened HUS-851074
...
49
Washer, Lock, Helical HUS-850263
...
50
Screw, Hex Head, Grade 8 3/8-24 x 1-3/8 HUS-851084
...
52
Decal, Danger HUS-404763
...
55
Mounting Bracket, Debris Shield HUS-188839X004
...
56
Screw, Hex Washer Head #10-24 x 1/2 HUS-750097
...
57
Hairpin Cotter HUS-51793
...
58
Lower Handle HUS-151590X479
...
59
Handle Bolt HUS-191574
...
61
Locknut, Hex HUS-73930600
...
62
Debris Shield HUS-405843
...
63
Screw HUS-192325
...
72
Clip, Cable HUS-197991
...
74
Grip, Foam HUS-186362
...
74
Warning Decal (not shown) HUS-404764
...
74
Operator's Manual, English HUS-193733
...
74
Operator's Manual, French HUS-193736
...
xx
Repair Parts Manual HUS-427820
