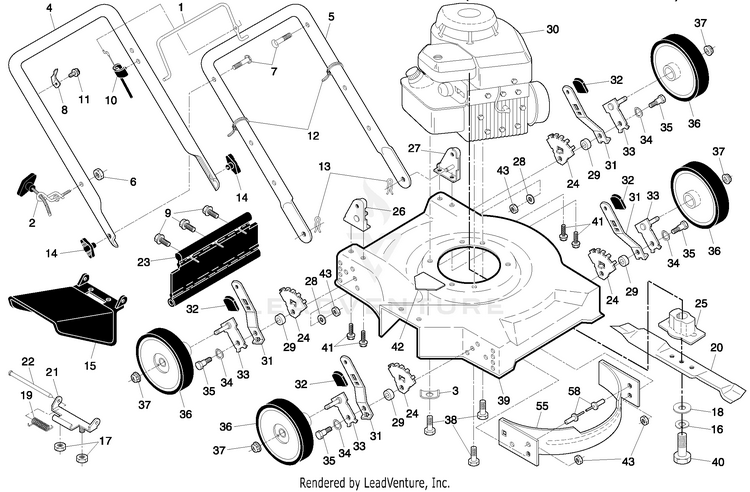

Husqvarna 961140014, 96114001402 (2009-03) Walk-Behind Mower

Model: 961140014, 96114001402 (2009-03)

Save Part Not Listed?
product name

Product Complete

...
...
1
Control Bar HUS-194176X428
...
2
Rope Guide HUS-194788
...
3
Engine Washer HUS-851201X004
...
4
Upper Handle HUS-194180X479
...
5
Lower Handle HUS-151590X479
...
6
Nut, Hex HUS-132004
...
7
Handle Bolt 5/16-18 x 1-3/4 HUS-191574
...
8
Up-Stop Bracket HUS-86899X004
...
9
Hex Washer Head Screw #10-24 x 1/2 HUS-189241
...
10
Engine Zone Control Cable HUS-162778
...
11
Screw HUS-750634
...
12
Wire Tie HUS-664-26
...
13
Hairpin Cotter HUS-51793
...
14
Knob, Handle HUS-189713X428
...
15
Discharge Guard HUS-412277X428
...
16
Helical Lock Washer 3/8 HUS-850263
...
17
Locknut, Hex 1/4-20 HUS-73800400
...
18
Hardened Washer HUS-851074
...
19
Torsion Spring HUS-411832
...
20
Blade, 20" HUS-145106
...
21
Hinge Deflector HUS-88602
...
22
Hinge Rod HUS-150215
...
23
Rear Deflector HUS-189240
...
24
Wheel Adjusting Bracket HUS-407494X005
...
25
Blade Adapter HUS-850977
...
26
Handle Bracket Assembly, RH HUS-170345X479
...
27
Handle Bracket Assembly, LH HUS-170346X479
...
28
Washer, Flat HUS-61537
...
29
Spacer HUS-401629
...
31
Selector Spring HUS-401621X004
...
32
Selector Knob HUS-87877
...
33
Axle Arm Assembly HUS-401179X004
...
34
Washer, Curved, Cylindrical HUS-401630
...
35
Shoulder Bolt HUS-401638
...
36
Wheel and Tire Assembly HUS-193850X427
...
37
Nut, Hex HUS-409148
...
38
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 HUS-150406
...
39
Lawn Mower Housing HUS-414790
...
40
Hex Head Screw 3/8-24 x 1-3/8 Grade 8 HUS-851084
...
41
Thread Cutting Screw 5/16-18 x 3/4 HUS-149741
...
42
Danger Decal HUS-404763
...
43
Locknut, Hex 3/8-16 HUS-73930500
...
55
Baffle, Front HUS-700839X479
...
58
Pop Rivet HUS-128415
...
58
Warning Decal (not shown) HUS-404764
...
58
Operator's Manual, English HUS-193732
...
58
Operator's Manual, Spanish HUS-193735
...
58
Repair Parts Manual, English HUS-428093
