Husqvarna 952208 (1996) Tiller

Model: 952208 (1996)

Back To Assemblies

Save Part Not Listed?
product name

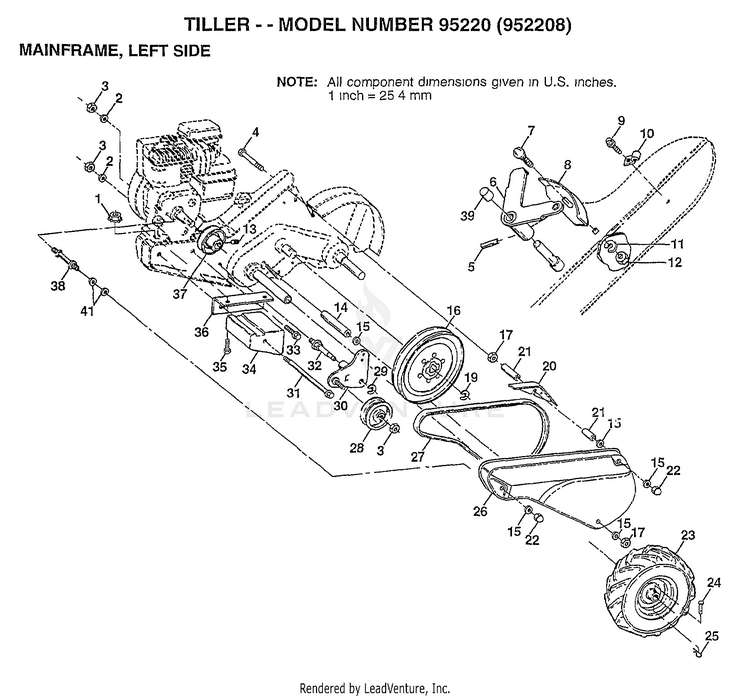

MAINFRAME, LEFT

...
...
1
NUT HUS-73510500
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
3
NUT.HEX.3/8-16UNC HUS-73220600
...
4
BOLT TI HUS-74930568
...
5
SUB= 2882J HUS-1572H
...
6
LEVER ASM CRT HUS-110111X
...
7
BOLT HUS-72110404
...
8
PANEL TI HUS-8700J
...
9
SUB= 750097 HUS-86777
...
10
CONDIUT CLIP T HUS-9484R
...
11
LOCKWASHER HUS-10040400
...
12
SUB= 50675 HUS-73220400
...
13
SET SCREW HUS-23230506
...
14
SPACER HUS-120938X
...
15
WASHER HUS-19111116
...
16
SHEAVE.TRANS. HUS-145102
...
17
NUT.HEX.5/16-18 HUS-73220500
...
19
SUB= 2267J HUS-12000028
...
20
GUARD CRT HUS-110653X
...
21
SPACER.SPLIT HUS-145216
...
22
NUT TI HUS-104214X
...
23
TIRE.CHV.13X5.0-6 HUS-102190X
...
xx
SUB= 150740X417 HUS-150740
...
xx
SUB= 65139 HUS-795R
...
24
RIVET.DRILL.1.75 HUS-126875X
...
25
RETAINER M HUS-4497H
...
26
"GUARD, BELT" HUS-131159X505
...
27
BELT-V HUS-132672
...
28
PULLEY-IDLER TI HUS-104679X
...
29
KLIP RING HUS-12000032
...
30
SUB= 918105611X HUS-105611X
...
31
BOLT CRT HUS-102384X
...
32
SHIFT ARM CRT HUS-102141X
...
33
BOLT HUS-74760616
...
34
COUNTERWEIGHT CRT HUS-102383X
...
35
BOLT.HEX.5/16-1.5 HUS-74760524
...
36
BRACKET LH CRT HUS-102331X
...
37
ENGINE SHEAVE HUS-130816
...
38
STUD.GUARD.BELT HUS-145822
...
39
CAP PLUNGER BLACK HUS-140062
...
41
WASHER HUS-19111610
