Husqvarna 951942 (1995) Tractor

Model: 951942 (1995)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
ENGINE KOHLER MODEL HUS-MV20
...
2
MUFFLER.KOH.VCT. HUS-144110
...
3
STREET ELBOW LT HUS-13240300
...
4
PIPE NIPPLE HUS-13280328
...
5
ELBOW HUS-13200300
...
6
CLAMP.TUBE.DBL.EN HUS-138129
...
8
SUB= 139123 HUS-121361X
...
9
SUB= 150828 HUS-145109
...
10
BUSHING. HUS-105432X
...
11
SUB= 142600 HUS-137140
...
12
PULLEY.ENGINE.VGT HUS-136907
...
13
BAFFLE.AIR.LH.K HUS-138486
...
14
SUB= 154574 HUS-138487
...
15
SUB= 151346 HUS-141069
...
16
PAD IDLER TI HUS-109227X
...
17
PAD-SPACER LT HUS-106082X
...
18
CAP ASM FUEL HUS-140527
...
19
PLUG T HUS-13290300
...
20
CONTROL THTL 37 HUS-142168
...
21
SCREW LT HUS-17720410
...
22
"CONTROL.CHOKE.51""" HUS-138672
...
23
WASHER HUS-19131316
...
24
LOCKWASHER HUS-11050600
...
25
SUB= 7810H HUS-73610600
...
26
BUSHING OUTLET T HUS-3645J
...
27
STEM.TANK.FUEL HUS-139277
...
28
SUB= 8542R HUS-7834R
...
29
SPARK ARREST KIT HUS-132920
...
32
SCREW LT HUS-17490508
...
34
SCREW HUS-17720408
...
35
LOCKWASHER HUS-10040500
...
36
SCREW HUS-74570512
...
37
HOSE CLAMP HUS-123487X
...
39
SCREW LT HUS-17490624
...
40
SCREW.3/8-16X3.25 HUS-17490652
...
41
WASHER HUS-126197X
...
42
LOCKWASHER HUS-10040700
...
43
SUB= 150280 HUS-71170768
...
62
SHIELD.HEAT.MUF HUS-140022

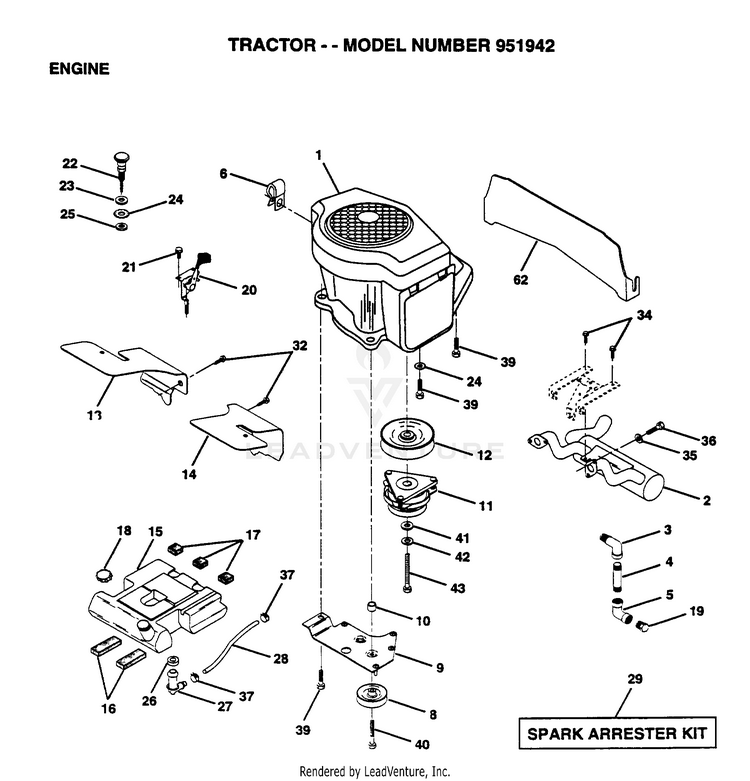

Schematic Image Zoomed
