Husqvarna 951941 (1994) Tractor

Model: 951941 (1994)

Back To Assemblies

Save Part Not Listed?
product name

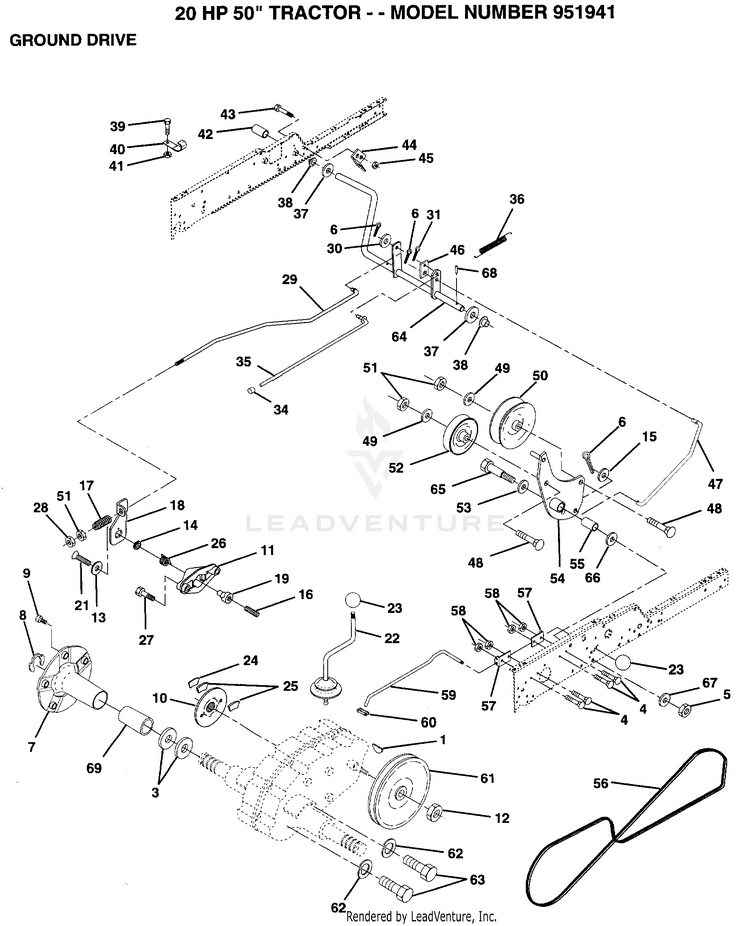

GROUND DRIVE

...
...
1
KEY HUS-9858M1
...
3
WASHER T HUS-7563R
...
4
BOLT HUS-72140506
...
5
SUB= 73690600 HUS-73680600
...
6
COTTER PIN HUS-76020412
...
7
SUB= 149176X431 HUS-135758
...
8
KLIP RING HUS-12000034
...
9
BOLT.HUB.WHL.REAR HUS-140080
...
10
SUB= 142509 HUS-143046
...
11
YOKE BRAKE DISC HUS-136927
...
12
NUT STD HUS-9204H
...
13
WASHER SPECIAL HUS-139419
...
14
BUSHING LEVER BKT HUS-138901
...
15
WASHER HUS-19131316
...
16
SCREW FLT 1/4X28 HUS-23260412
...
17
"SPRING,ROD BRAKE" HUS-126909X
...
18
LEVER BRAKE GT HUS-137104
...
19
CAM BRAKE DISC GT HUS-136926
...
21
SCREW SET 1/4-20 HUS-143012
...
22
GEAR SHFT LVR T HUS-633A109
...
23
KNOB HUS-121466X
...
24
SUPPORT PUCK BRKE HUS-136925
...
25
PUCK BRAKE TOP HUS-136923
...
26
SPRING RET BRAKE HUS-137552
...
27
SCREW HX WASH HUS-17490528
...
28
NUT HUS-73350600
...
29
ROD BRAKE ZINC GT HUS-137213
...
30
WASHER HUS-19131614
...
31
SUB= 3145 HUS-76020312
...
34
PLUNGER CAP T HUS-71673
...
35
ROD BRAKE PART GT HUS-137648
...
36
SUB= 149412 HUS-138364
...
37
WASHER HUS-121749X
...
38
NYLINER T HUS-110895X
...
39
SCREW HUS-74321016
...
40
ACT-SWITCH T HUS-5304J
...
41
SUB= 69180 HUS-73631000
...
42
PEDAL COVER T HUS-8883R
...
43
BOLT LT HUS-74760412
...
44
BRKT SWITCH GT HUS-104601X
...
45
NUT HUS-73800400
...
46
RETAINER SPRING HUS-121358X
...
47
ROD.CLUTCH HUS-138228
...
48
BOLT HUS-72110614
...
49
WASHER HUS-19131413
...
50
FLAT IDLER PULLEY HUS-131494
...
51
NUT HUS-73800600
...
52
PULLEY.IDLER.V.GR HUS-139123
...
53
WASHER T HUS-207J
...
54
ARM.ASM.IDLER.CLU HUS-138390
...
55
"LY, BEARING" HUS-105706X
...
56
BELTV.GR.DR.83. HUS-137153
...
57
ROD BRACKET GT HUS-105598X
...
58
NUT HUS-73800500
...
59
ROD SHIFT HI LO HUS-122253X
...
60
CONNECTING LINK HUS-122268X
...
61
SUB= 532137524 HUS-137524
...
62
LOCKWASHER HUS-10040700
...
63
BOLT HUS-74760720
...
64
SUB= 154752 HUS-137649
...
65
AXLE BOLT HUS-67609
...
66
WASHER.HARD.BLADE HUS-140296
...
67
WASHER HUS-19131312
...
68
ROLL PIN STD HUS-5142H
...
69
"COVER, HUB" HUS-136327
