Husqvarna 951940 (1993) Tractor

Model: 951940 (1993)

Back To Assemblies

Save Part Not Listed?
product name

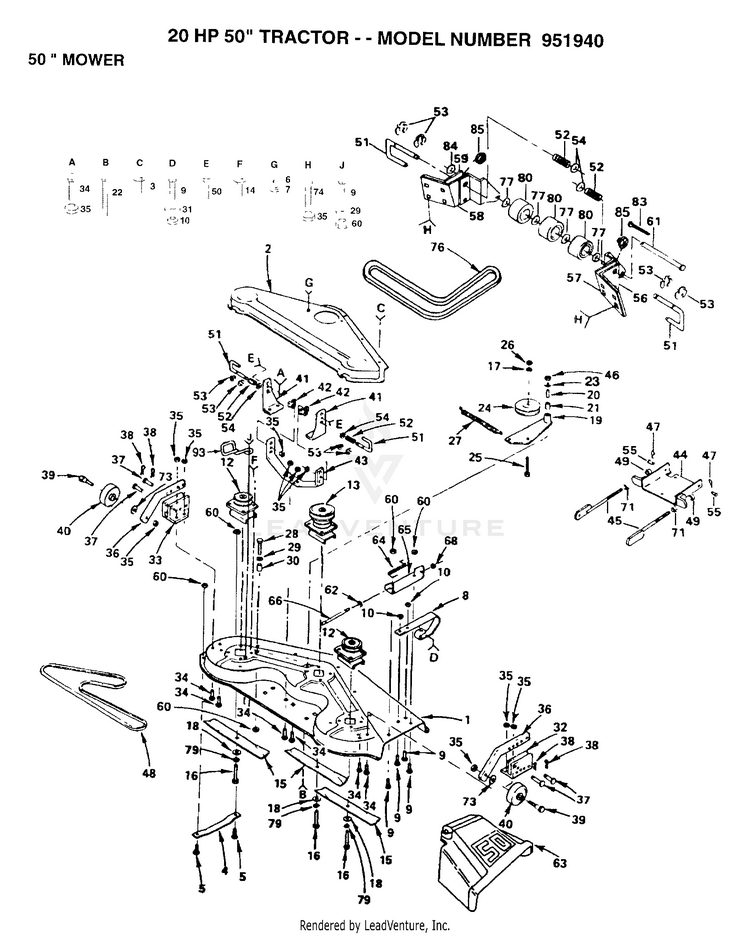

50" MOWER

...
...
1
SUB= 123760X HUS-121664X
...
2
CVR DRIVE DECK HUS-121811X
...
3
SCREW LT HUS-17490508
...
4
RUNNER-LH M HUS-7631J
...
5
BOLT HUS-72110505
...
6
LOCKWASHER HUS-10040500
...
7
NUT.HEX.5/16-18 HUS-73220500
...
8
SUB= 136320 HUS-120449X
...
9
BOLT HUS-72140506
...
10
SUB= 68478 HUS-1685H
...
12
SUB= 136819 HUS-136818
...
13
SUB= 121657X HUS-121617X
...
14
SCREW HUS-17490612
...
15
"BLADE.50""STD.LIFT" HUS-121798X
...
16
BOLT.3/8-24X1-1/2 HUS-74610624
...
17
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
18
WASHER HUS-19132012
...
19
ARM ASSY GT HUS-674A213
...
20
SUB= 674A308 HUS-7834J
...
21
SUB= 674A308 HUS-7835J
...
22
BOLT HUS-72110522
...
23
SUB= 52915 HUS-19111816
...
24
IDLER-FLAT T HUS-102403X
...
25
SUB= 74930624 HUS-74760624
...
26
NUT.HEX.3/8-16UNC HUS-73220600
...
27
SPRING T HUS-104361X
...
28
BOLT HUS-74780520
...
29
WASHER M HUS-19111216
...
30
SPACER SPLIT LT HUS-8438J
...
31
WASHER HUS-19111116
...
32
GUAGE WHL BRKT GT HUS-105448X
...
33
GUAGE WHL BRKT GT HUS-105449X
...
34
BOLT HUS-72240606
...
35
SUB= 73690600 HUS-73680600
...
36
GUAGE WHL BAR GT HUS-105453X
...
37
SUB= 139031 HUS-5565J
...
38
SUB= 85902 HUS-4939M
...
39
BOLT.SHOULDER HUS-137644
...
40
WHEEL GAGE DONUT HUS-133957
...
41
SUSP BRKT GT HUS-105433X
...
42
SPACER GT HUS-110237X
...
43
SUSP BRACE GT HUS-105434X
...
44
SUB= 140741X431 HUS-109778X
...
45
BRACKET.SUSPEN.AS HUS-109771X
...
46
JAM NUT TI HUS-73350500
...
47
RETAINER.SPRING HUS-3146R
...
48
V-BELT M HUS-3703J
...
49
NUT LTV HUS-73680800
...
50
Bolt, Hex 3/8-16 x 1-3/8 HUS-74760622
...
51
RELEASE PIN GT HUS-105435X
...
52
SPRING M HUS-3720R
...
53
KLIP RING HUS-12000039
...
54
WASHER GT HUS-19171612
...
55
CLEVIS PIN GT HUS-105440X
...
56
BRACKET T HUS-105458X
...
57
BRACKET T HUS-109773X
...
58
BRACKET T HUS-110997X
...
59
BRACKET T HUS-120000X
...
60
SUB= 73690500 HUS-73680500
...
61
PIVOT PIN T HUS-109776X
...
62
WASHER HUS-19111016
...
63
DEFLECTOR HUS-110509X
...
64
SUB= 123713X HUS-106734X
...
65
BRKT DEFLECTOR HUS-137607
...
66
ROD-HINGE T HUS-106735X
...
68
NUT PUSH M HUS-110452X
...
71
NUT HUS-73220800
...
73
WASHER HUS-19171512
...
74
BOLT HUS-72240608
...
76
BELT-V.93.5.MWR HUS-110884X
...
77
WASHER T HUS-19151610
...
79
SUB= 10040600 HUS-10030600
...
80
ROLLER T HUS-109729X
...
83
COTTER PIN HUS-76020412
...
84
SUB= 19171616 HUS-19151616
...
85
SPACER T HUS-120135X
...
93
BELT RETIANER HUS-121352X
...
xx
SUB= 123760X HUS-121664X
