Husqvarna 951890 (1992) Tractor

Model: 951890 (1992)

Back To Assemblies

Save Part Not Listed?
product name

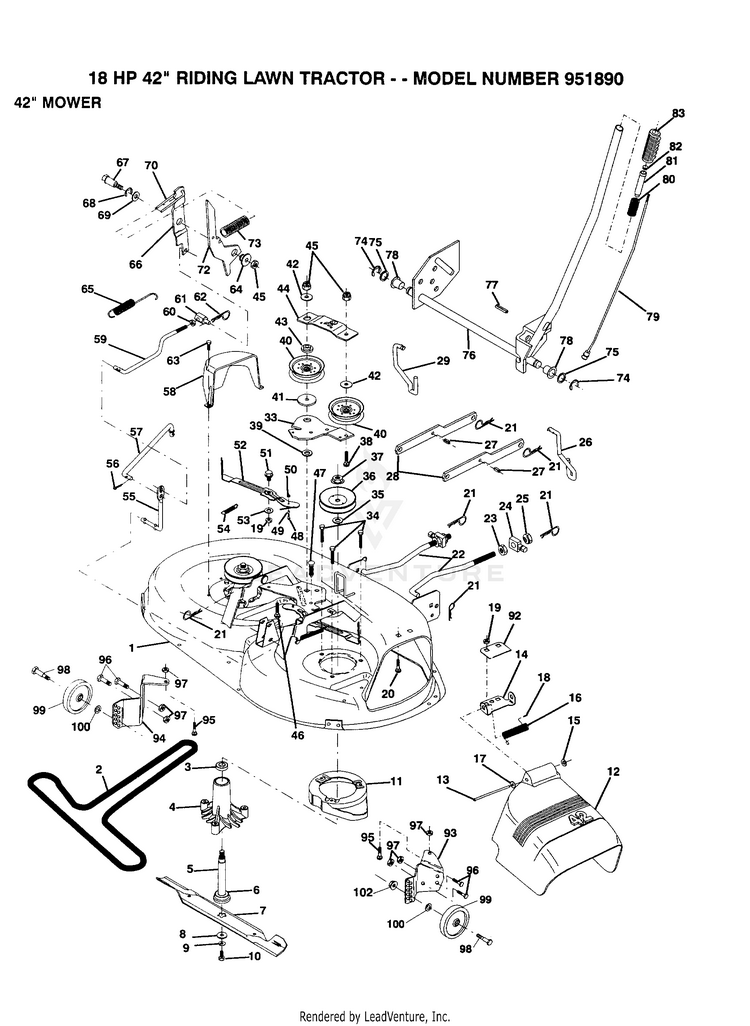

42" MOWER

...
...
1
SUB= 145338 HUS-130970
...
2
BELT-V.92.4.MWR HUS-130969
...
3
BEARING HUS-110485X
...
4
HSG ASM MANDREL HUS-128774
...
5
SUB= 137646 HUS-133172
...
6
BEARING.BALL HUS-129895
...
7
SUB= 138498 HUS-127843
...
8
WASHER BLADE HUS-129962
...
9
SUB= 10040600 HUS-10030600
...
10
BLADE BOLT HUS-850857
...
11
SUB= 140329 HUS-128961
...
12
DEFLECTOR.SHIELD HUS-130968
...
13
HINGE ROD HUS-131491
...
14
DEFLECTOR BRKT HUS-131267
...
15
NUT PUSH M HUS-110452X
...
16
SPRING TORSION HUS-123713X
...
17
WASHER HUS-19111016
...
18
CAP-SLEEVE LT HUS-105304X
...
19
SUB= 73690500 HUS-73680500
...
20
BOLT HUS-72140506
...
21
SUB= 85902 HUS-4939M
...
22
LINK.FRONT HUS-127218
...
23
NUT HUS-73350800
...
24
TRUNION HUS-130171
...
25
NUT.LK.W/WSH.1/2. HUS-73800800
...
26
LIFT LINK RH HUS-135388
...
27
"PIN,SPRING" HUS-135563
...
28
SUSP ARM ASM REAR HUS-130833
...
29
LINK LIFT LH HUS-134619
...
33
IDLER ARM HUS-133844
...
34
SUB= 17580520 HUS-78158
...
35
WASHER HUS-129963
...
36
SUB= 153535 HUS-129861
...
37
SUB= 139729 HUS-73050900
...
38
BOLT HUS-72110614
...
39
HARDENED WASHER HUS-133943
...
40
FLAT IDLER PULLEY HUS-131494
...
41
SPACER RETAINER HUS-122052X
...
42
WASHER GT HUS-19131612
...
43
RETAINER SPACER HUS-133502
...
44
IDLER ARM STIFF HUS-133503
...
45
SUB= 73690600 HUS-73680600
...
46
BOLT CARRIAGE HUS-72110618
...
47
XMAS TREE FASTNER HUS-133835
...
48
SHOULDER BOLT HUS-131340
...
49
SUB= 151785 HUS-133940
...
50
LOCKNUT HUS-69180
...
51
SUB= 139888 HUS-105529X
...
52
BRAKE PAD ARM ASM HUS-131845
...
53
HARD SMALL WASHER HUS-133944
...
54
SPRING EXTENSION HUS-131335
...
55
PIVOT ROD HUS-133551
...
56
SUB= 3145 HUS-76020312
...
57
CLUTCH ROD SECOND HUS-133504
...
58
SUB= 140088 HUS-131857
...
59
SUB= 142427 HUS-133550
...
60
NUT HUS-73350600
...
61
TRUNION HUS-133205
...
62
RETAINER M HUS-4497H
...
63
SCREW LT HUS-17720410
...
64
BUSHING HUS-127498
...
65
RETURN SPRING HUS-131870
...
66
CLUTCH ARM SECOND HUS-127847
...
67
SHOULDER BOLT HUS-128903
...
68
RING HUS-12000029
...
69
WASHER HUS-121748X
...
70
SPRING KEEPER HUS-127845
...
71
SUB= 532132044 HUS-132044
...
72
SUB= 532131813 HUS-131813
...
73
SUB= 918128759 HUS-128759
...
74
SUB= 2225J HUS-12000002
...
75
WASHER HUS-19211416
...
76
SUB= 132172 HUS-131172
...
77
PIN-GROOVE LT HUS-105767X
...
78
NYLON BEARING HUS-120183X
...
79
SUB= 136973 HUS-132175
...
80
SUB= 532122512 HUS-122512X
...
81
SUB= 125925X HUS-122364X
...
82
SUB= 125925X HUS-124526X
...
83
GRIP HUS-109413X
...
92
STIFFENER BRKT HUS-134753
...
93
SUB= 155198 HUS-132262
...
94
SUB= 155197 HUS-132263
...
95
SUB= 872110504 HUS-72110504
...
96
BOLT HUS-74760512
...
97
SUB= 73690500 HUS-73680500
...
98
SUB= 4898H HUS-134249
...
99
WHEEL.GAGE.BLK.PL HUS-105455X
...
100
WASHER HUS-19171512
...
102
NUT SPECIAL T HUS-73980600
...
xx
SUB= 145411 HUS-134745
...
xx
MANDREL ASM HUS-130794
