Husqvarna 9209A99 (1999) Tractor

Model: 9209A99 (1999)

Back To Assemblies

Save Part Not Listed?
product name

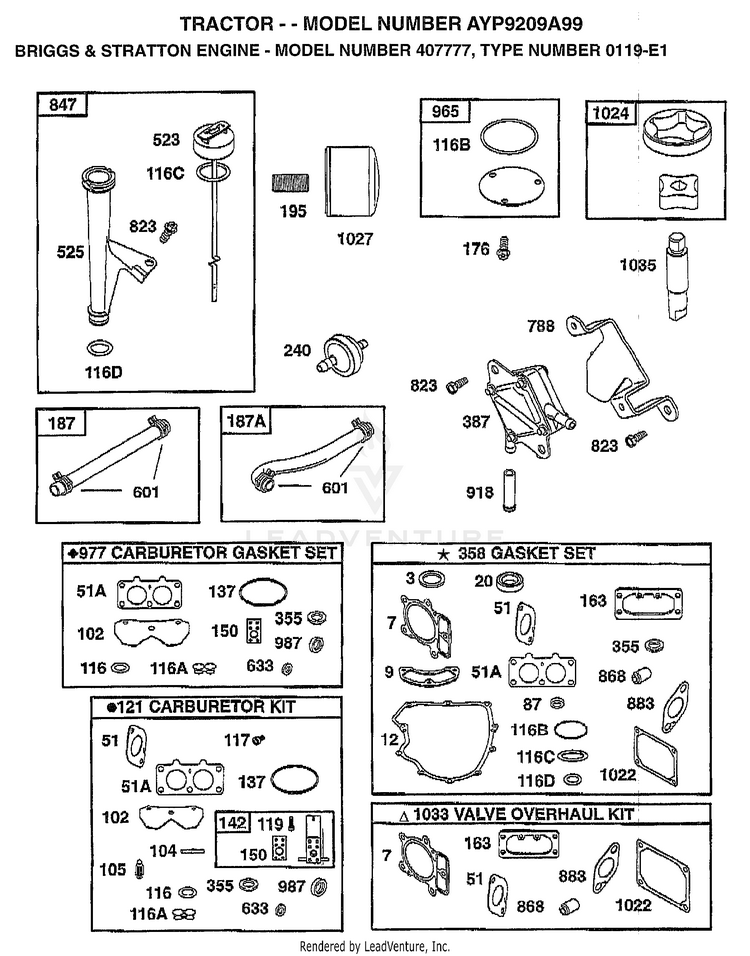

BRIGGS AND STRATTON ENGINE

...
...
1
CYLINDER ASSY HUS-499584
...
2
BUSHING CYLINDER HUS-499585
...
3
SEAL OIL HUS-690926
...
4
SUMP ENGINE HUS-690069
...
5
HEAD CYLINDER NO. 1 HUS-499587
...
5A
HEAD CYLINDER NO. 2 HUS-499595
...
6
WASHER FLAT HUS-690097
...
7
GASKET, CYLINDER HEAD HUS-690962
...
8
BREATHER ASSY HUS-499601
...
9
GASKET BREATHER HUS-690937
...
10
SCREW, HEX HUS-691003
...
11
TUBE, BREATHER HUS-690942
...
12
GASKET, CRANKCASE HUS-690945
...
13
SCREW, CYLINDER HEAD (3-9/16") HUS-690360
...
15
CHECK WITH SUPPLIER HUS-SUPPLIER
...
15
PLUG, OIL DRAIN HUS-690946
...
16
CRANKSHAFT HUS-691046
...
20
SEAL OIL HUS-690947
...
22
SCREW, CRANKCASE COVER HUS-690308
...
23
FLYWHEEL HUS-691054
...
24
KEY, FLYWHEEL HUS-690974
...
25
PISTON ASSY (STD) HUS-499588
...
25
PISTON ASSY (.010" O.S.) HUS-499589
...
25
PISTON ASSY (.020" O.S.) HUS-499590
...
25
PISTON ASSY (.030" O.S.) HUS-499591
...
26
RING SET, PISTON (STD.) HUS-499604
...
26
RING SET, PISTON (.010" O.S.) HUS-499605
...
26
RING SET, PISTON (.020" O.S.) HUS-499606
...
25
RING SET, PISTON (.030" O.S.) HUS-499607
...
27
LOCK, PISTON PIN HUS-690975
...
28
PIN ASSY, PISTON HUS-499582
...
29
ROD ASSY, CONNECTING HUS-499583
...
32
SCREW, CONNECTING ROD HUS-690976
...
33
VALVE, EXHAUST HUS-499596
...
34
VALVE, INTAKE HUS-499597
...
35
SPRING, VALVE HUS-690963
...
40
RETAINER, VALVE HUS-690964
...
42
KEEPER VALVE HUS-499586
...
45
TAPPET, VALVE HUS-690977
...
46
GEAR, CAM HUS-690978
...
50
MANIFOLD, INTAKE HUS-690948
...
51
GASKET, CARB. MOUNTING HUS-690949
...
51A
GASKET, INTAKE MANIFOLD HUS-690950
...
53
STUD, CARB. MOUNTING HUS-690951
...
73
SCREEN, ROTATING HUS-691055
...
75
WASHER, SPRING HUS-691056
...
78
SCREW, TORX HUS-691057
...
87
SEAL, GOVERNOR SHAFT HUS-690657
...
89
PLUG, OIL HUS-690238
...
95
SCREW, SLOTTED HUS-690718
...
98
SCREW, IDLE SPEED HUS-499802
...
102
GASKET, PLATE HUS-690234
...
104
PIN, FLOAT HINGE HUS-690984
...
105
VALVE, NEEDLE HUS-690985
...
108
VALVE, CHOKE HUS-690986
...
110
WASHER HUS-691261
...
116
O-RING, SOLENOID RETAINER HUS-690987
...
116A
O-RING, FUEL TRANSFER TUBE HUS-690988
...
116B
SEAL, O-RING (OIL PUMP COVER) HUS-690589
...
116C
SEAL, O-RING (DIPSTICK) HUS-691031
...
116D
SEAL, O-RING (OIL FILTER TUBE) HUS-691032
...
117
JET, MAIN (STANDARD) HUS-690232
...
119
SCREW, PHILLIPS HUS-690990
...
119A
SCREW, PHILLIPS HUS-690991
...
119B
SCREW, PHILLIPS HUS-690992
...
119C
SCREW, PHILLIPS HUS-690720
...
121
CARBURETOR OVERHAUL KIT HUS-499811
...
122
SPACER, CARBURETOR HUS-690952
...
125
CARBURETOR HUS-499804
...
130
VALVE, THROTTLE HUS-690993
...
131
SHAFT, THROTTLE HUS-499805
...
133
FLOAT, CARBURETOR HUS-499806
...
135
TUBE, FUEL TRANSFER HUS-499803
...
137
GASKET, FLOAT BOWL HUS-690994
...
141
SHAFT CHOKE HUS-499807
...
142
NOZZLE, CARBURETOR HUS-499808
...
146
TIMING GEAR KEY HUS-94388
...
150
GASKET, NOZZLE HUS-281767
...
160
RETAINER, SOLENOID HUS-690996
...
163
GASKET, AIR CLEANER HUS-691001
...
176
SCREW, T-30 HUS-691033
...
187
LINE, FUEL HUS-691050
...
187A
LINE, FUEL HUS-691049
...
188
SCREW, HEX HUS-691058
...
190
SCREW, TORX HEX HUS-690953
...
192
ADJUSTER, ROCKER ARM HUS-690083
...
195
NIPPLE HUS-690954
...
209
SPRING, GOVERNOR HUS-690018
...
211
SPRING, GOVERNED IDLE HUS-690019
...
212
LINK, THROTTLE HUS-691020
...
213
BRACKET, CHOKE CONTROL HUS-691021
...
216
LINK, CHOKE HUS-691022
...
219
GEAR, GOVERNOR HUS-394348
...
220
WASHER, THRUST HUS-690412
...
222
PLATE, GOVERNOR CONTROL HUS-691023
...
227
LEVER ASSY, GOVERNOR HUS-691048
...
240
FILTER, FUEL HUS-691035
...
252
ELEMENT, BREATHER HUS-690956
...
256
RETAINER, ELEMENT HUS-690957
...
258
SCREW, HEX HUS-691003
...
265
CLAMP, CASING HUS-691024
...
277
NUT, HEX HUS-691029
...
304
HOUSING, BLOWER HUS-691004
...
305
SCREW, HEX HUS-691005
...
309
MOTOR, STARTER HUS-691262
...
310
SCREW, HEX HUS-691263
...
311
BRUSH, SET HUS-691264
...
332
NUT, FLYWHEEL HUS-690059
...
333
ARMATURE, MAGNETO HUS-691060
...
334
SCREW, ARMATURE MOUNTING HUS-691061
...
337
SPARK PLUG HUS-690965
...
351
SCREW, HEX HUS-691044
...
355
WASHER, SEAL HUS-690997
...
358
GASKET SET HUS-499889
...
363
FLYWHEEL, PULLER HUS-691062
...
383
WRENCH, SPARK PLUG HUS-690966
...
387
PUMP, FUEL HUS-691034
...
445
CARTRIDGE, AIR CLEANER HUS-691007
...
467
NUT, AIR CLEANER HUS-691008
...
474
ALTERNATOR HUS-691063
...
482
SCREW, HEX HUS-691183
...
510
DRIVE, STARTER HUS-497606
...
523
DIPSTICK, OIL HUS-691036
...
525
TUBE, OIL FILL HUS-691037
...
544
REFER TO PARTS IMAGE HUS-PARTS IMAGE
...
552
BUSHING, GOVERNOR CRANK HUS-690552
...
552A
BUSHING, GOVERNOR CRANK HUS-690553
...
556
SCREW, HEX HUS-690967
...
562
BOLT, CARRIAGE HUS-690311
...
573
PLATE, BLACK HUS-691009
...
592
NUT, HEX HUS-690958
...
592A
NUT, HEX HUS-691029
...
601
CLAMP, FUEL LINE HUS-691038
...
615
RETAINER, GOVERNOR HUS-690328
...
615A
RETAINER, GOVERNOR HUS-690317
...
615B
RETAINER HUS-691265
...
616
CRANK, GOVERNOR HUS-691045
...
633
SEAL, CHOKE SHAFT HUS-690998
...
634
WASHER, FLAT HUS-690442
...
635
BOOT, SPARK PLUG HUS-691210
...
668
SPACER HUS-691215
...
703
CLIP, HOSE HUS-690010
...
718
DOWEL, SLEEVE HUS-690959
...
726
GEAR, RING HUS-499612
...
728
SCREW, TORX HUS-690372
...
741
GEAR, TIMING HUS-690980
...
783
GEAR, STARTER HUS-691280
...
788
BRACKET, PUMP HUS-691039
...
789
HARNESS, WIRING HUS-691220
...
801
CAP, DRIVE HUS-691283
...
802
CAP, END HUS-691286
...
803
REFER TO PARTS IMAGE HUS-PARTS IMAGE
...
823
SCREW, HEX HUS-690960
...
847
DIPSTICK/TUBE ASSY HUS-499602
...
851
TERMINAL, IGNITION CABLE HUS-691234
...
855
ADAPTER, AIR HUS-691011
...
865
COVER, AIR GUIDE HUS-691012
...
865A
COVER, AIR GUIDE HUS-691013
...
865B
COVER, AIR GUIDE HUS-691015
...
868
SEAL, VALVE HUS-690968
...
871
BUSHING, GUIDE HUS-690969
...
878
WIRE, ALTERNATOR HUS-691237
...
881
PLATE, COVER HUS-690999
...
883
GASKET, EXHAUST HUS-690970
...
918
HOSE, VACUUM HUS-691040
...
947
SOLENOID, FUEL HUS-499809
...
965
COVER, OIL PUMP HUS-499613
...
967
FILTER, PRE-CLEANER HUS-691016
...
968
COVER, AIR CLEANER HUS-499788
...
975
BOWL, FLOAT HUS-499810
...
977
GASKET SET, CARBURETOR HUS-499812
...
987
SEAL, THROTTLE SHAFT HUS-691000
...
1005
FAN, FLYWHEEL HUS-691243
...
1006
RETAINER, FAN HUS-691247
...
1017
SCREEN, OIL PUMP HUS-690770
...
1019
LABEL KIT HUS-690103
...
1022
GASKET, ROCKER COVER HUS-690971
...
1023
COVER, ROCKER (CYL. NO.1) HUS-499599
...
1023A
COVER, ROCKER (CYL. NO.2) HUS-499600
...
1024
PUMP, OIL HUS-499054
...
1026
ROD, PUSH (STEEL) HUS-690981
...
1026A
ROD, PUSH (ALUMINUM) HUS-690982
...
1027
FILTER, OIL HUS-690041
...
1029
ARM, ROCKER HUS-690972
...
1033
VALVE OVERHAUL KIT HUS-499890
...
1035
SHAFT, OIL PUMP HUS-691042
...
1036
LABEL KIT, EMISSION HUS-499783
...
1058
OWNER'S MANUAL HUS-273694
...
1090
RETAINER, BRUSH HUS-691293
...
1100
PIVOT, ROCKER ARM HUS-690973
...
2500
ENGINE HUS-407777-0027
