Husqvarna 9178B99 (1999) Tractor

Model: 9178B99 (1999)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
CONTROL THROT. LH HUS-148875
...
2
SCREW LT HUS-17720410
...
3
REFER TO PARTS IMAGE HUS-PARTS IMAGE
...
3
CHECK WITH SUPPLIER HUS-SUPPLIER
...
4
MUFFLER.TW.LOTONE HUS-149723
...
5
TUBE MANIFOLD LH HUS-159955
...
6
TUBE MANIFOLD RH HUS-160589
...
8
BOLT.5/16-18.UNC HUS-150176
...
10
SHIELD.BROWNING HUS-162797
...
13
SUB= 273485 HUS-165391
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW LT HUS-17490624
...
23
SHIELD.BRN/DBR.GD HUS-159880
...
25
CONTROL.CHOKE.37 HUS-145996
...
26
"NUT,KEPS 3/8-24IM" HUS-73920600
...
29
SUB= 532137180 HUS-137180
...
31
TANK.FUEL.FRONT. HUS-161911
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
35
SCREW HUS-17060512
...
37
LINE FUEL HUS-137040
...
38
CHECK WITH SUPPLIER HUS-SUPPLIER
...
40
SUB= 532124028 HUS-124028X
...
44
SCREW HEX CRT HUS-17490412
...
46
WASHER HUS-19091416
...
62
LOCKWASHER HUS-10040500
...
72
SCREW HUS-71070512
...
81
NUT HUS-128861

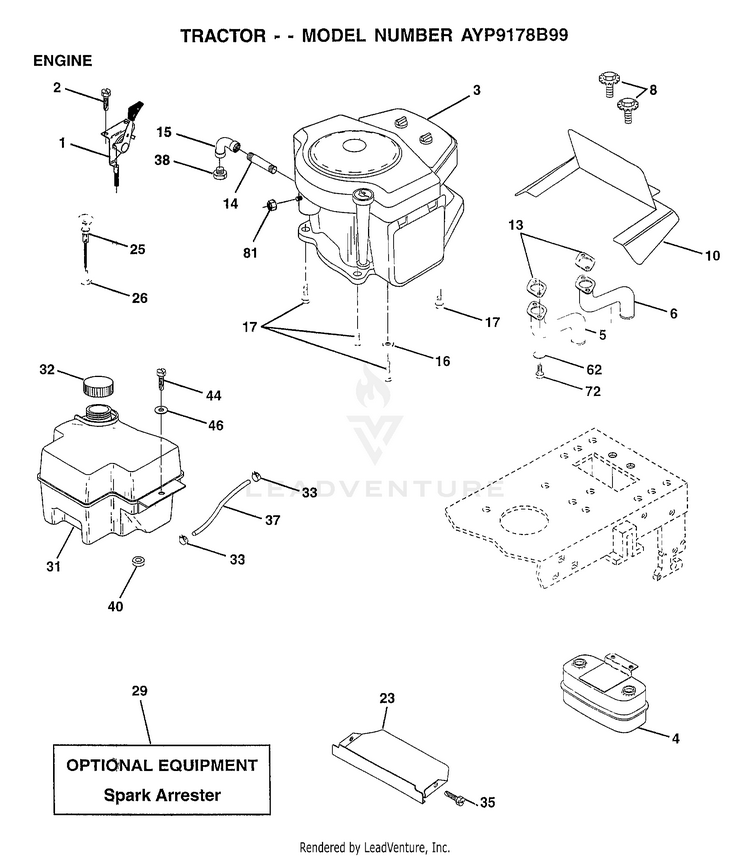

Schematic Image Zoomed
