Husqvarna 9178A99 (1999) Tractor

Model: 9178A99 (1999)

Back To Assemblies

Save Part Not Listed?
product name

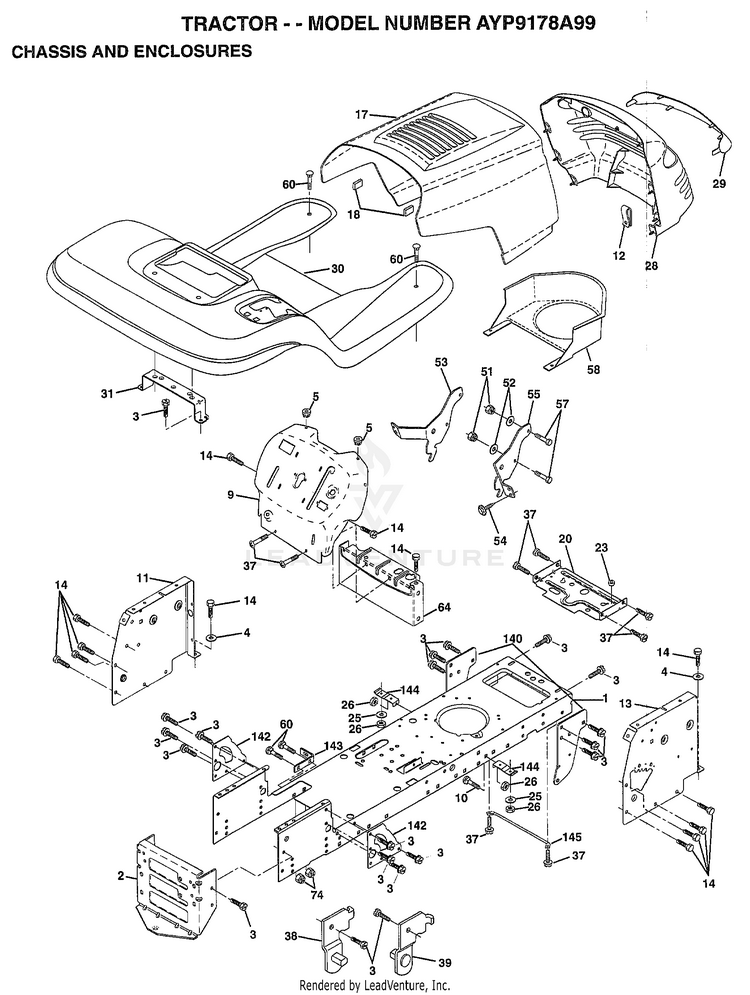

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS.STLT HUS-165583
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
BUMPER-HOOD/DASH HUS-155272
...
9
DASH HUS-161917X012
...
10
SUB= 72110608 HUS-72140608
...
11
"PANEL-DASH,LH" HUS-155927
...
12
CLIP.TINNERMAN HUS-145660
...
13
"PANEL-DASH,RH" HUS-155936
...
14
SCREW LT HUS-17490608
...
17
HOOD.STEEL.ASSY HUS-159639X418
...
18
SUB= 532126938 HUS-126938X
...
20
"PLATE-MTG,BATT/FU" HUS-156437
...
23
SUB= 532124028 HUS-124028X
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILL HUS-157428
...
29
GRILLE.LENS HUS-146654X599
...
30
FEND/FTREST PNT HUS-151287X418
...
31
BRACKET SUPT FEND HUS-139976
...
37
SCREW LT HUS-17490508
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SCREW.HEX.WS.HD HUS-161464
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
AIR DUCT HUS-150127
...
60
BOLT HUS-72140606
...
64
DASH-LOWER HUS-154798
...
74
SUB= 73690400 HUS-73680400
...
140
BRKT SUSPENSION HUS-158418
...
142
PLATE.REINFORCEMENT HUS-165867
...
143
"BRKT-S'BAR,CHASSI" HUS-154966
...
144
BRKT-FOOTREST HUS-154207
...
145
"ROD POVOT,CHASSIS" HUS-156524
